| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T06_9000006558_56712cztM0_level2.fits | modeM0/AS1A14_083T06_9000006558_56712cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,376,000 | 90,074,880 |
| Size | 388.5 MB | 85.9 MB |
| Events in quadrant A | 3,622,170 | 589,539 |
| Events in quadrant B | 2,894,371 | 639,169 |
| Events in quadrant C | 5,030,394 | 523,284 |
| Events in quadrant D | 3,055,614 | 547,387 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15409 | 1 |
| B | 0 | 13156 | 1 |
| C | 0 | 19403 | 2 |
| D | 0 | 13803 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6133 | 256 | 4.174140% |
| B | 6133 | 73 | 1.190282% |
| C | 6132 | 647 | 10.551207% |
| D | 6132 | 72 | 1.174168% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7113 | 6134 | 184 | 184 | 2.59% | 3.00% |  |
| B | 7113 | 6134 | 20 | 20 | 0.28% | 0.33% |  |
| C | 7112 | 6133 | 584 | 584 | 8.21% | 9.52% |  |
| D | 7112 | 6133 | 59 | 59 | 0.83% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 696808 | 4270.01 | 645 | 630 | 163.0 |
| A | 8 | 26 | 184661 | 1128.76 | 645 | 630 | 163.0 |
| A | 10 | 251 | 170397 | 1041.27 | 645 | 630 | 163.0 |
| B | 5 | 185 | 107312 | 772.45 | 645 | 621 | 138.1 |
| B | 10 | 247 | 79219 | 569.05 | 645 | 621 | 138.1 |
| B | 0 | 213 | 22387 | 157.59 | 645 | 621 | 138.1 |
| C | 13 | 3 | 1440388 | 8712.16 | 593 | 588 | 165.3 |
| C | 15 | 230 | 992100 | 5999.59 | 593 | 588 | 165.3 |
| C | 9 | 38 | 96435 | 579.97 | 593 | 588 | 165.3 |
| D | 2 | 249 | 367914 | 2053.22 | 626 | 597 | 178.9 |
| D | 5 | 173 | 46696 | 257.68 | 626 | 597 | 178.9 |
| D | 8 | 160 | 39361 | 216.68 | 626 | 597 | 178.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

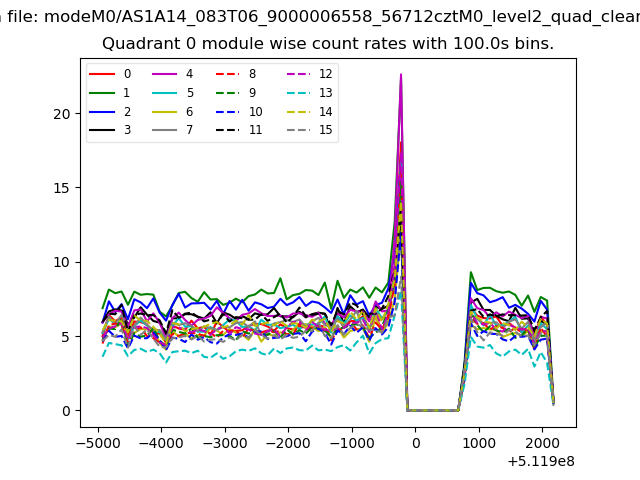

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

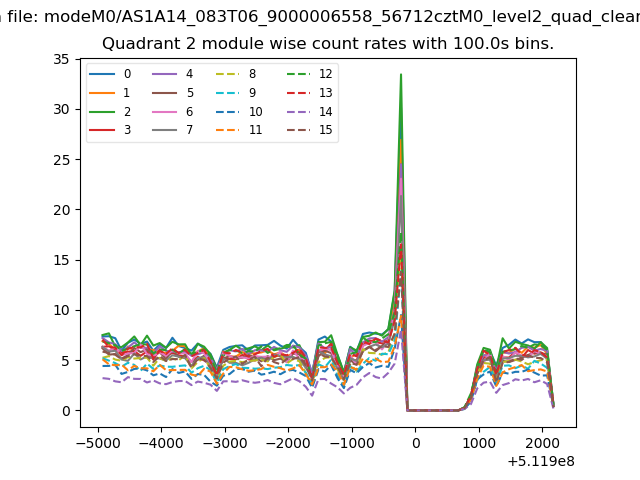

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

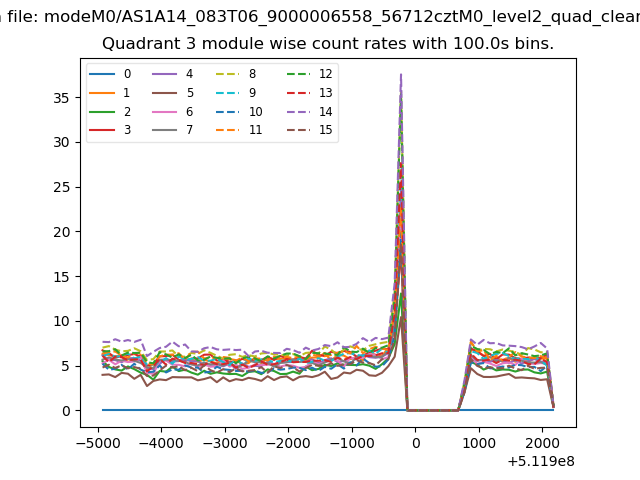

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

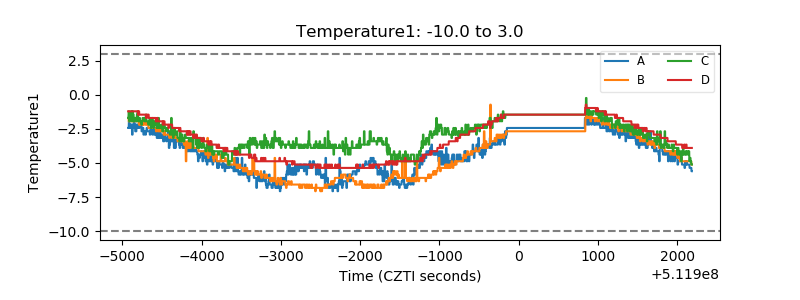

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

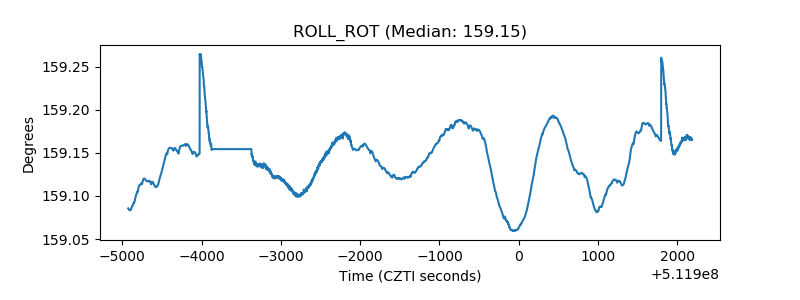

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
