| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006560cztM0_level2.fits | modeM0/AS1A14_083T05_9000006560cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,504,416,320 | 1,168,064,640 |
| Size | 2.3 GB | 1.1 GB |
| Events in quadrant A | 14,906,890 | 3,824,377 |
| Events in quadrant B | 13,721,162 | 3,997,027 |
| Events in quadrant C | 13,921,068 | 3,513,069 |
| Events in quadrant D | 12,763,720 | 3,516,419 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6080 | 0 |
| B | 0 | 6080 | 0 |
| C | 0 | 6080 | 0 |
| D | 0 | 6080 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 768137 | 0 |
| B | 0 | 815752 | 0 |
| C | 0 | 870196 | 0 |
| D | 0 | 674486 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 334 | 0 |
| B | 0 | 334 | 0 |
| C | 0 | 334 | 0 |
| D | 0 | 334 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 299356 | 13011 | 4.346330% |
| B | 299357 | 21393 | 7.146317% |
| C | 299356 | 25417 | 8.490560% |
| D | 299359 | 5525 | 1.845610% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 338471 | 299050 | 0 | 0 | 0.00% | 0.00% |  |
| B | 338471 | 298913 | 0 | 0 | 0.00% | 0.00% |  |
| C | 338472 | 298756 | 0 | 0 | 0.00% | 0.00% |  |
| D | 338472 | 299268 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 188 | 16823 | 10.01 | 3907 | 3581 | 1322.3 |
| A | 9 | 255 | 14977 | 8.62 | 3907 | 3581 | 1322.3 |
| A | 14 | 204 | 13805 | 7.73 | 3907 | 3581 | 1322.3 |
| B | 3 | 25 | 11592 | 9.71 | 3630 | 3429 | 840.8 |
| B | 9 | 173 | 10774 | 8.74 | 3630 | 3429 | 840.8 |
| B | 2 | 245 | 10611 | 8.54 | 3630 | 3429 | 840.8 |
| C | 2 | 31 | 11217 | 6.16 | 3718 | 3370 | 1274.5 |
| C | 15 | 127 | 11074 | 6.04 | 3718 | 3370 | 1274.5 |
| C | 15 | 175 | 10743 | 5.78 | 3718 | 3370 | 1274.5 |
| D | 6 | 218 | 15803 | 10.16 | 3640 | 3219 | 1239.0 |
| D | 15 | 11 | 12465 | 7.46 | 3640 | 3219 | 1239.0 |
| D | 8 | 12 | 11957 | 7.05 | 3640 | 3219 | 1239.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

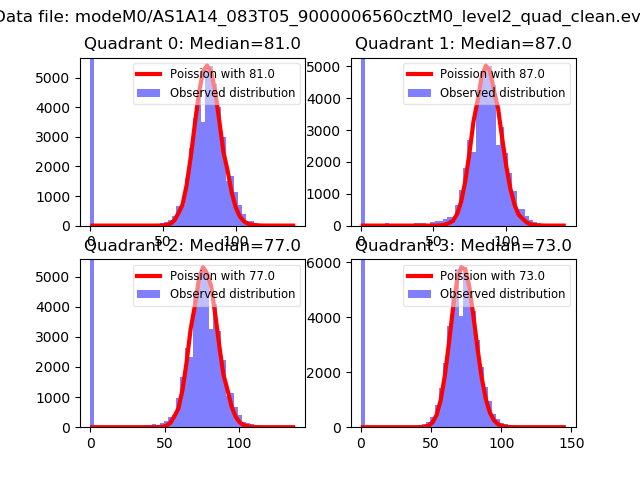

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
