| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006560_56724cztM0_level2.fits | modeM0/AS1A14_083T05_9000006560_56724cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,572,480 | 86,238,720 |
| Size | 422.1 MB | 82.2 MB |
| Events in quadrant A | 3,942,731 | 574,952 |
| Events in quadrant B | 2,795,659 | 626,112 |
| Events in quadrant C | 5,726,291 | 473,387 |
| Events in quadrant D | 3,453,542 | 519,558 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15705 | 1 |
| B | 0 | 12640 | 1 |
| C | 0 | 21252 | 2 |
| D | 0 | 14431 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5970 | 176 | 2.948074% |
| B | 5970 | 88 | 1.474037% |
| C | 5969 | 1014 | 16.987770% |
| D | 5970 | 161 | 2.696817% |

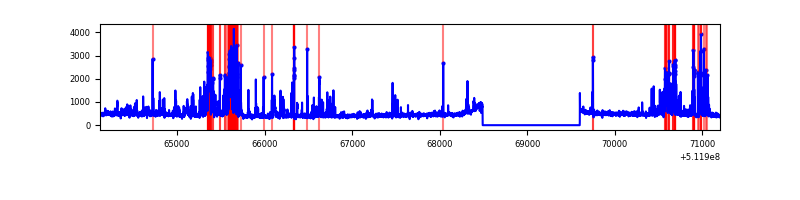

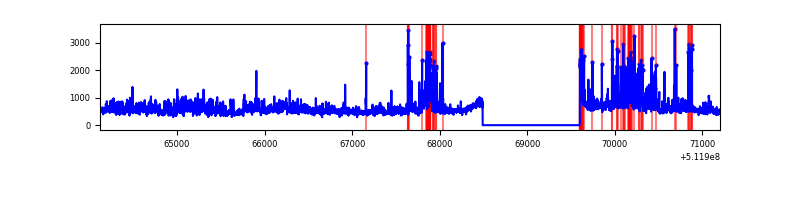

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7080 | 5970 | 90 | 90 | 1.27% | 1.51% |  |
| B | 7080 | 5970 | 13 | 13 | 0.18% | 0.22% |  |
| C | 7079 | 5970 | 986 | 986 | 13.93% | 16.52% |  |
| D | 7080 | 5970 | 143 | 143 | 2.02% | 2.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 825745 | 5175.95 | 645 | 632 | 159.4 |
| A | 10 | 251 | 525325 | 3291.41 | 645 | 632 | 159.4 |
| A | 4 | 95 | 40239 | 248.45 | 645 | 632 | 159.4 |
| B | 0 | 63 | 78771 | 564.14 | 640 | 619 | 138.5 |
| B | 10 | 247 | 76233 | 545.82 | 640 | 619 | 138.5 |
| B | 0 | 245 | 30326 | 214.44 | 640 | 619 | 138.5 |
| C | 15 | 230 | 2989903 | 18743.04 | 578 | 573 | 159.5 |
| C | 13 | 3 | 170968 | 1068.37 | 578 | 573 | 159.5 |
| C | 12 | 252 | 117991 | 736.21 | 578 | 573 | 159.5 |
| D | 2 | 249 | 560447 | 3209.76 | 618 | 592 | 174.4 |
| D | 2 | 207 | 150687 | 860.52 | 618 | 592 | 174.4 |
| D | 3 | 12 | 75629 | 430.2 | 618 | 592 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

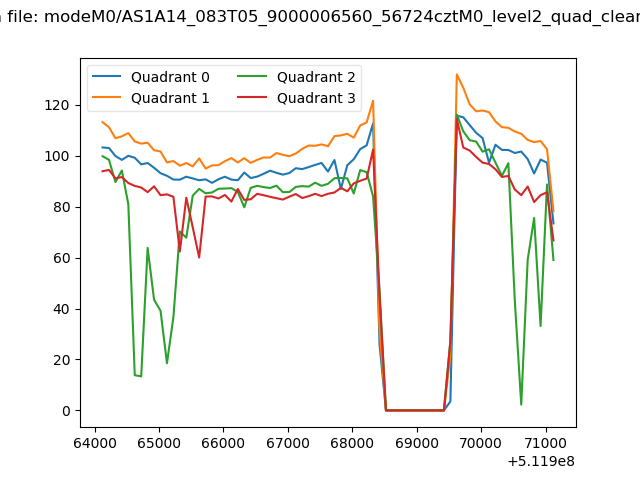

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

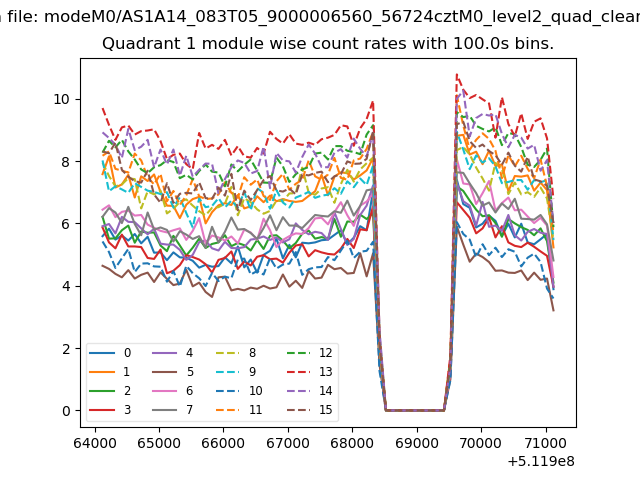

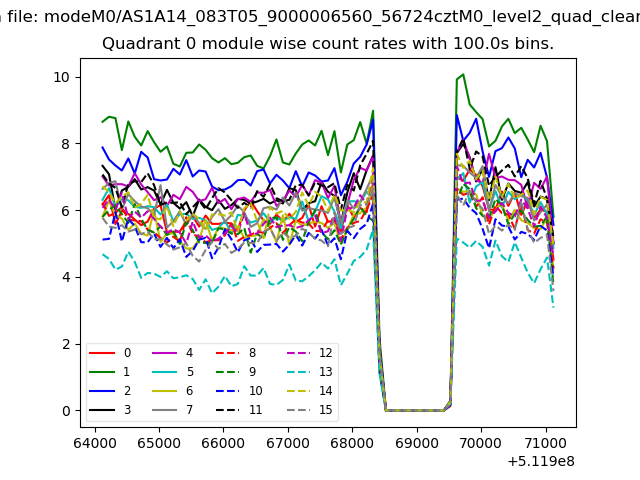

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

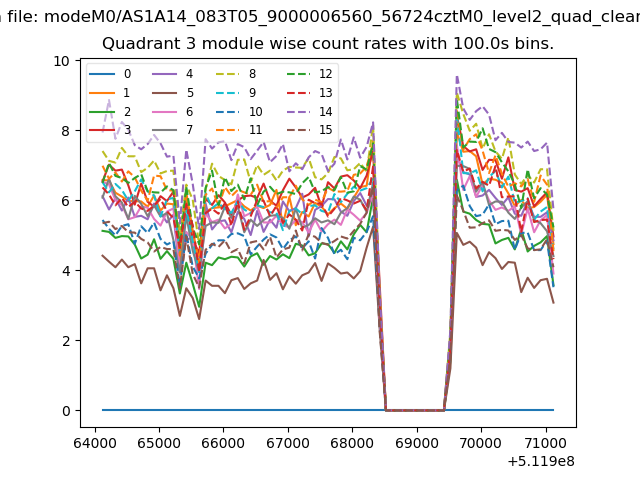

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

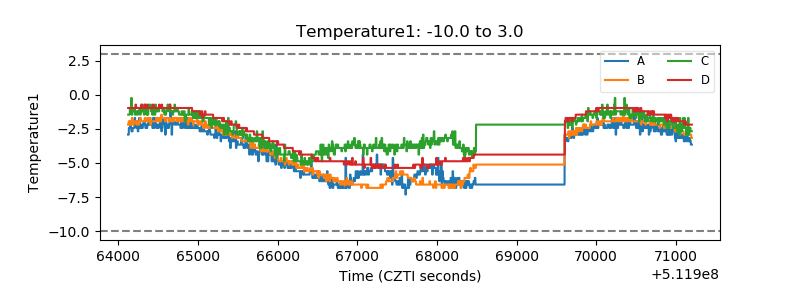

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

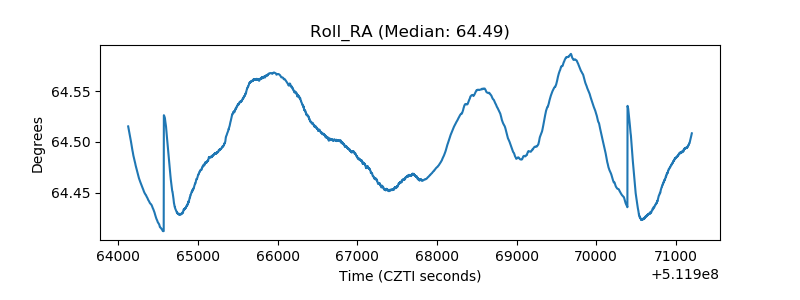

| _Roll_RA |  |
| Veto Counter |  |
