| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006560_56749cztM0_level2.fits | modeM0/AS1A14_083T05_9000006560_56749cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,208,320 | 99,293,760 |
| Size | 415.0 MB | 94.7 MB |
| Events in quadrant A | 3,521,288 | 654,265 |
| Events in quadrant B | 4,932,038 | 663,531 |
| Events in quadrant C | 3,753,522 | 616,292 |
| Events in quadrant D | 3,378,206 | 602,091 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15048 | 1 |
| B | 0 | 19325 | 1 |
| C | 0 | 16208 | 1 |
| D | 0 | 14543 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6747 | 143 | 2.119461% |
| B | 6748 | 563 | 8.343213% |
| C | 6748 | 221 | 3.275044% |
| D | 6748 | 61 | 0.903972% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

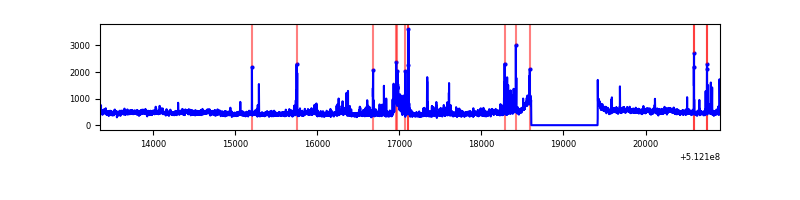

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6748 | 45 | 45 | 0.60% | 0.67% |  |
| B | 7558 | 6749 | 321 | 321 | 4.25% | 4.76% |  |
| C | 7558 | 6749 | 94 | 94 | 1.24% | 1.39% |  |
| D | 7558 | 6749 | 15 | 15 | 0.20% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 321941 | 1764.2 | 738 | 719 | 182.1 |
| A | 3 | 14 | 262794 | 1439.36 | 738 | 719 | 182.1 |
| A | 3 | 62 | 53600 | 290.43 | 738 | 719 | 182.1 |
| B | 4 | 206 | 856739 | 5551.31 | 712 | 685 | 154.2 |
| B | 8 | 128 | 848333 | 5496.8 | 712 | 685 | 154.2 |
| B | 5 | 185 | 220585 | 1426.0 | 712 | 685 | 154.2 |
| C | 15 | 215 | 246627 | 1250.78 | 716 | 709 | 196.6 |
| C | 13 | 3 | 177336 | 898.36 | 716 | 709 | 196.6 |
| C | 15 | 230 | 165760 | 839.48 | 716 | 709 | 196.6 |
| D | 5 | 113 | 139728 | 671.6 | 725 | 694 | 207.0 |
| D | 2 | 249 | 125836 | 604.49 | 725 | 694 | 207.0 |
| D | 5 | 173 | 52659 | 251.01 | 725 | 694 | 207.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

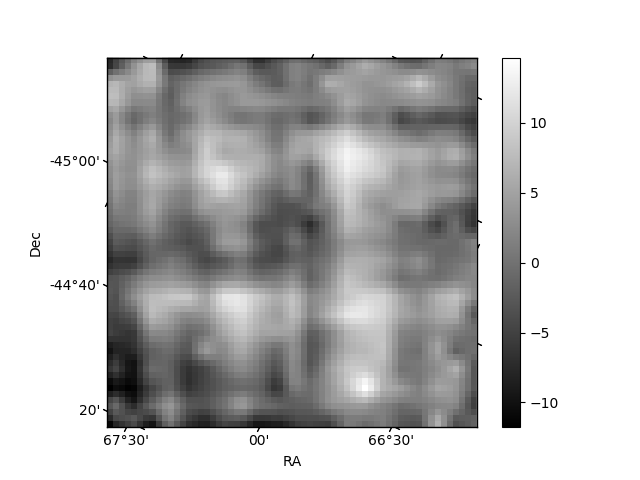

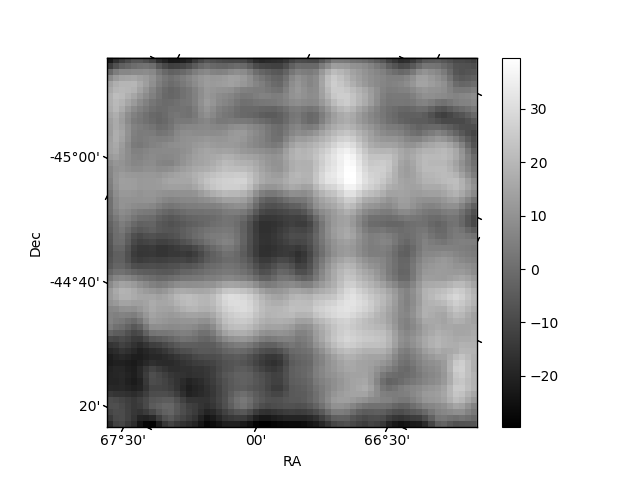

| Plot type | Count rate plots | Images |
|---|---|---|

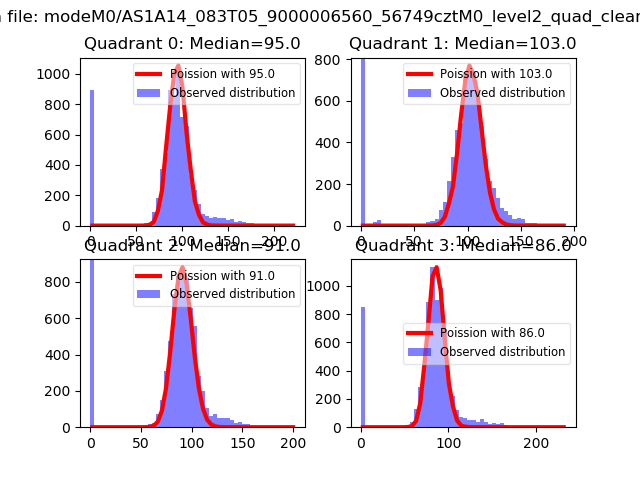

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

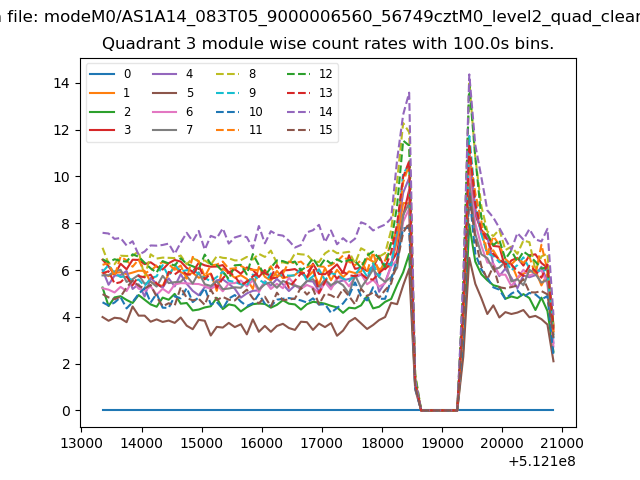

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

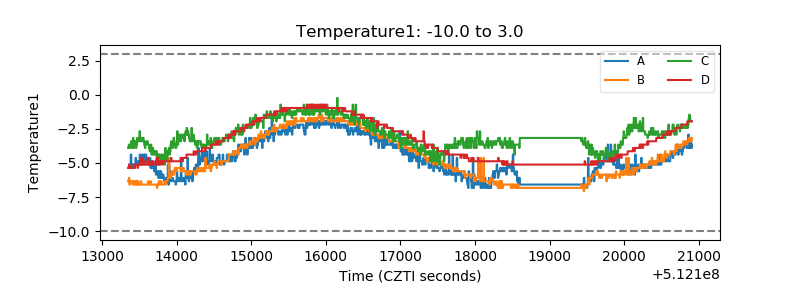

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

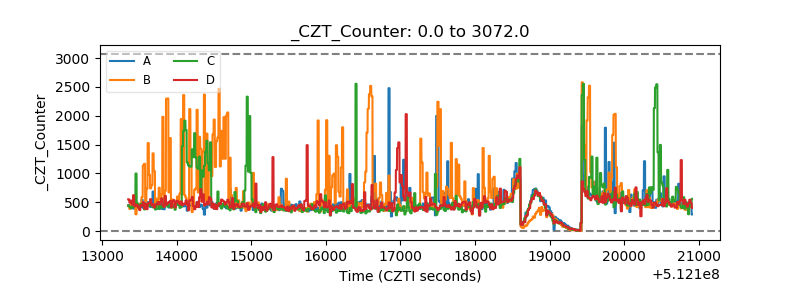

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

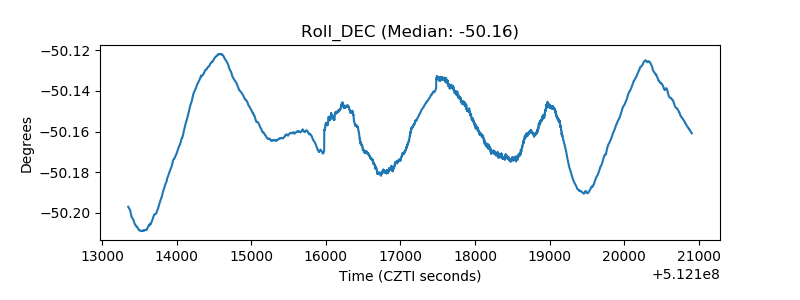

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
