| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006560_56756cztM0_level2.fits | modeM0/AS1A14_083T05_9000006560_56756cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,773,120 | 87,546,240 |
| Size | 470.9 MB | 83.5 MB |
| Events in quadrant A | 3,098,670 | 596,031 |
| Events in quadrant B | 5,918,031 | 576,745 |
| Events in quadrant C | 3,951,382 | 558,270 |
| Events in quadrant D | 4,823,063 | 482,365 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13546 | 0 |
| B | 0 | 22025 | 0 |
| C | 0 | 16046 | 0 |
| D | 0 | 18934 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6262 | 49 | 0.782498% |
| B | 6262 | 885 | 14.132865% |
| C | 6262 | 142 | 2.267646% |
| D | 6262 | 658 | 10.507825% |

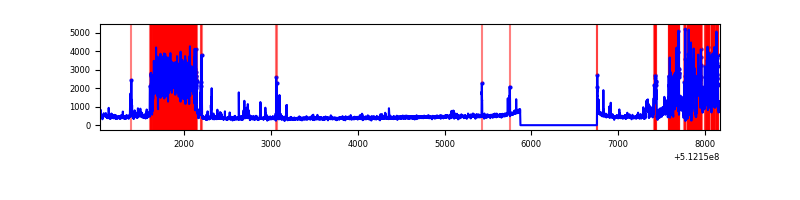

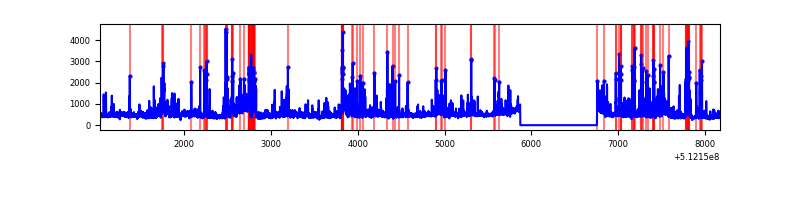

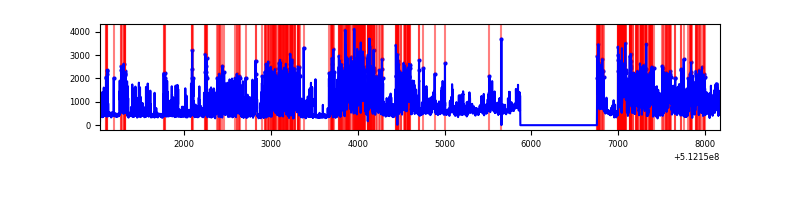

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7147 | 6263 | 13 | 13 | 0.18% | 0.21% |  |
| B | 7147 | 6263 | 448 | 448 | 6.27% | 7.15% |  |
| C | 7147 | 6263 | 122 | 122 | 1.71% | 1.95% |  |
| D | 7147 | 6263 | 669 | 669 | 9.36% | 10.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 302987 | 1828.43 | 662 | 643 | 165.4 |
| A | 15 | 33 | 74871 | 448.89 | 662 | 643 | 165.4 |
| A | 3 | 62 | 69176 | 414.45 | 662 | 643 | 165.4 |
| B | 4 | 206 | 2423793 | 17890.99 | 627 | 603 | 135.4 |
| B | 5 | 185 | 570398 | 4206.93 | 627 | 603 | 135.4 |
| B | 8 | 128 | 240746 | 1773.03 | 627 | 603 | 135.4 |
| C | 12 | 252 | 576421 | 3324.48 | 633 | 626 | 173.2 |
| C | 9 | 38 | 256155 | 1475.35 | 633 | 626 | 173.2 |
| C | 6 | 223 | 156728 | 901.29 | 633 | 626 | 173.2 |
| D | 2 | 249 | 2133169 | 12227.08 | 612 | 585 | 174.4 |
| D | 8 | 160 | 82700 | 470.8 | 612 | 585 | 174.4 |
| D | 5 | 173 | 51492 | 291.87 | 612 | 585 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

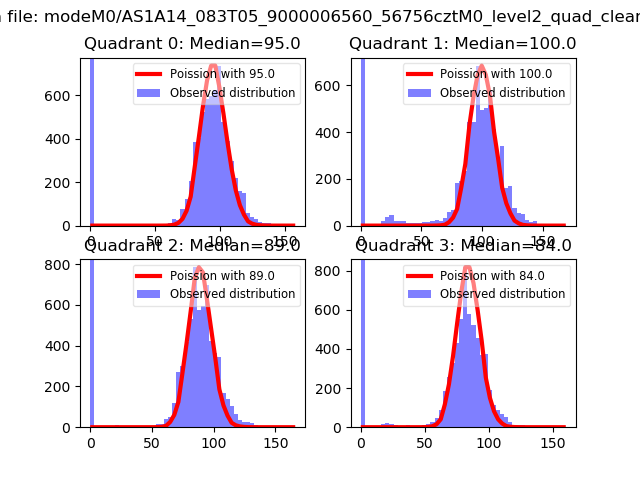

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

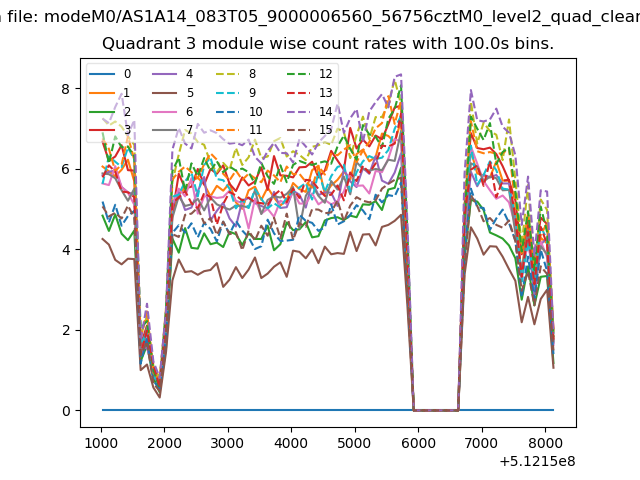

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

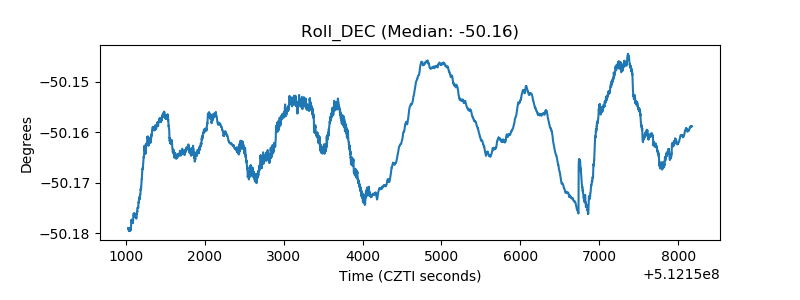

| _Roll_DEC |  |

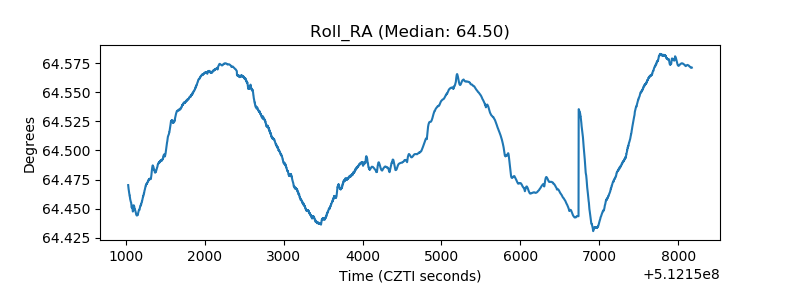

| _Roll_RA |  |
| Veto Counter |  |
