| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T05_9000006560_56777cztM0_level2.fits | modeM0/AS1A14_083T05_9000006560_56777cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,399,040,640 | 260,470,080 |
| Size | 1.3 GB | 248.4 MB |
| Events in quadrant A | 12,856,498 | 1,714,459 |
| Events in quadrant B | 14,010,698 | 1,713,240 |
| Events in quadrant C | 14,011,170 | 1,609,277 |
| Events in quadrant D | 9,444,011 | 1,542,314 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51191 | 3 |
| B | 0 | 55052 | 3 |
| C | 0 | 54695 | 3 |
| D | 0 | 42277 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18961 | 475 | 2.505142% |
| B | 18962 | 2001 | 10.552684% |
| C | 18962 | 598 | 3.153676% |
| D | 18962 | 325 | 1.713954% |

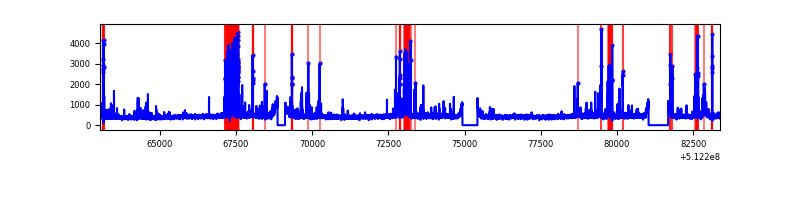

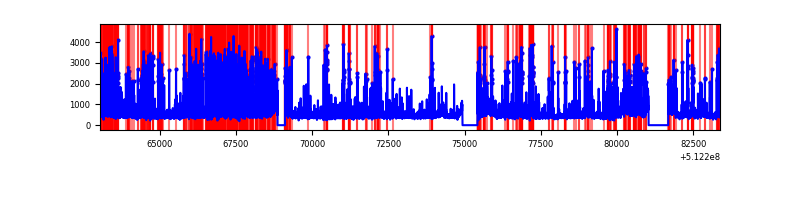

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20346 | 18963 | 180 | 180 | 0.88% | 0.95% |  |
| B | 20347 | 18965 | 1047 | 1047 | 5.15% | 5.52% |  |
| C | 20347 | 18965 | 393 | 393 | 1.93% | 2.07% |  |
| D | 20347 | 18965 | 190 | 190 | 0.93% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 3789355 | 7732.32 | 1992 | 1944 | 489.8 |
| A | 10 | 251 | 723981 | 1474.1 | 1992 | 1944 | 489.8 |
| A | 7 | 64 | 240371 | 486.77 | 1992 | 1944 | 489.8 |
| B | 4 | 206 | 3788083 | 9330.99 | 1908 | 1838 | 405.8 |
| B | 5 | 185 | 572763 | 1407.01 | 1908 | 1838 | 405.8 |
| B | 2 | 249 | 541597 | 1330.21 | 1908 | 1838 | 405.8 |
| C | 9 | 38 | 4524127 | 8534.96 | 1942 | 1918 | 529.8 |
| C | 14 | 96 | 881128 | 1659.37 | 1942 | 1918 | 529.8 |
| C | 15 | 230 | 377867 | 709.55 | 1942 | 1918 | 529.8 |
| D | 2 | 249 | 889071 | 1645.37 | 1938 | 1859 | 539.2 |
| D | 2 | 252 | 186004 | 341.5 | 1938 | 1859 | 539.2 |
| D | 5 | 173 | 164497 | 301.62 | 1938 | 1859 | 539.2 |

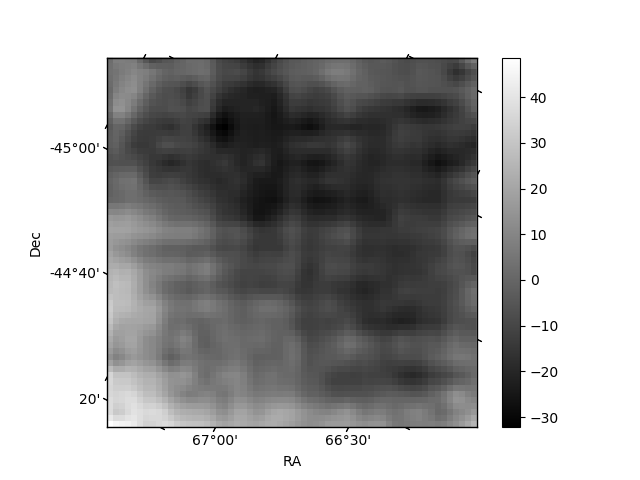

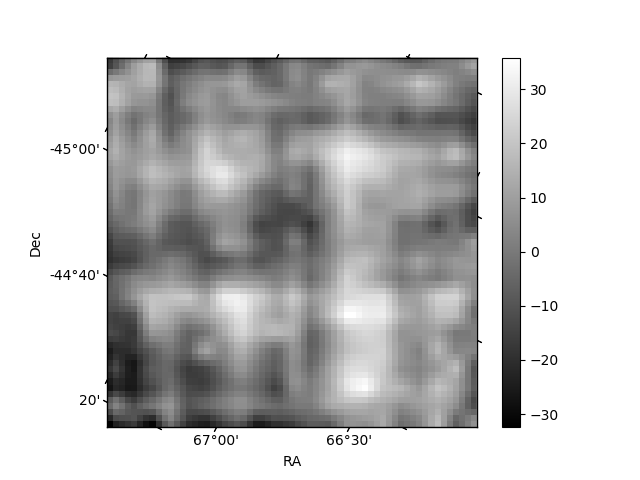

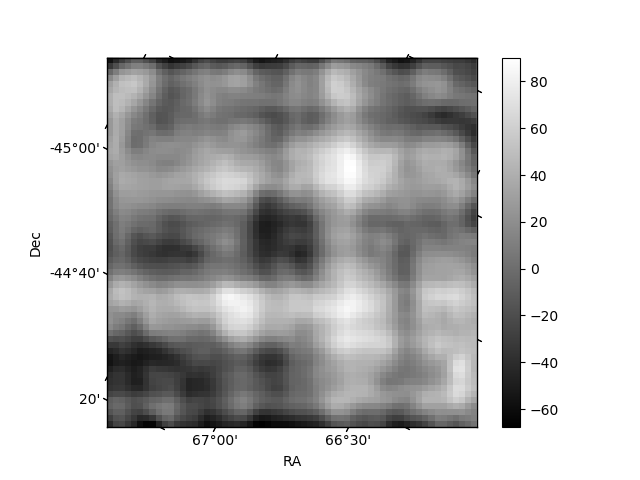

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

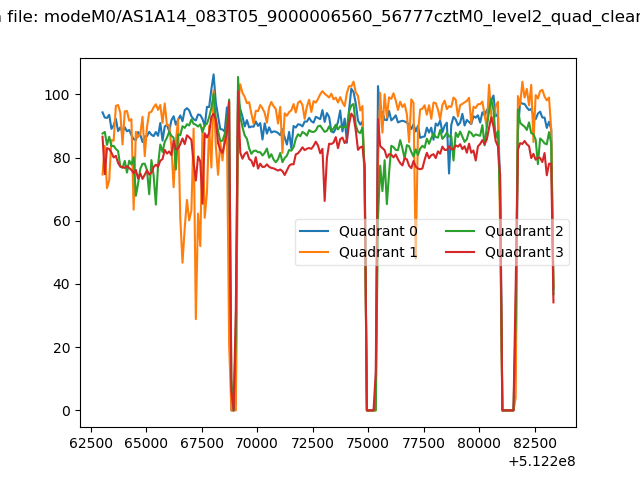

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

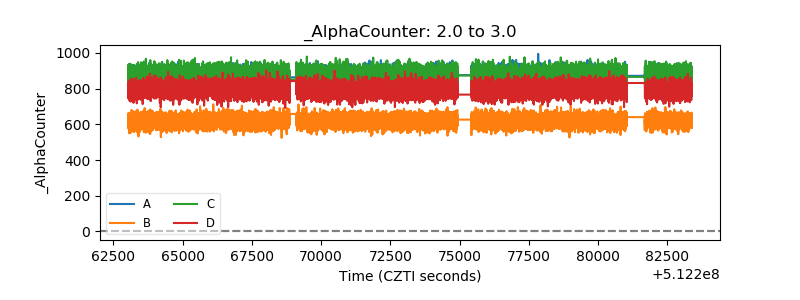

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

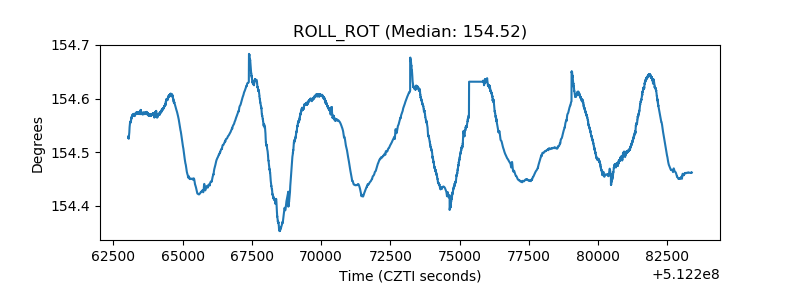

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
