| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56795cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56795cztM0_level2_quad_clean.evt |
| Size (bytes) | 414,158,400 | 98,409,600 |
| Size | 395.0 MB | 93.9 MB |
| Events in quadrant A | 3,738,206 | 638,959 |
| Events in quadrant B | 4,609,863 | 671,026 |
| Events in quadrant C | 2,970,570 | 626,544 |
| Events in quadrant D | 3,491,238 | 576,769 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15840 | 2 |
| B | 0 | 18236 | 2 |
| C | 0 | 13853 | 2 |
| D | 0 | 15172 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6691 | 252 | 3.766253% |
| B | 6692 | 466 | 6.963539% |
| C | 6691 | 64 | 0.956509% |
| D | 6691 | 207 | 3.093708% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7681 | 6691 | 160 | 160 | 2.08% | 2.39% |  |
| B | 7682 | 6692 | 267 | 267 | 3.48% | 3.99% |  |
| C | 7681 | 6691 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7681 | 6691 | 137 | 137 | 1.78% | 2.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 576167 | 3169.65 | 733 | 713 | 181.6 |
| A | 10 | 251 | 171228 | 939.21 | 733 | 713 | 181.6 |
| A | 8 | 28 | 34993 | 188.82 | 733 | 713 | 181.6 |
| B | 2 | 249 | 612063 | 4014.55 | 707 | 680 | 152.3 |
| B | 8 | 128 | 508592 | 3335.12 | 707 | 680 | 152.3 |
| B | 4 | 206 | 270799 | 1773.69 | 707 | 680 | 152.3 |
| C | 1 | 16 | 49455 | 246.19 | 721 | 712 | 198.0 |
| C | 12 | 252 | 30479 | 150.34 | 721 | 712 | 198.0 |
| C | 9 | 38 | 18739 | 91.05 | 721 | 712 | 198.0 |
| D | 2 | 249 | 425725 | 2122.5 | 713 | 683 | 200.3 |
| D | 2 | 207 | 88923 | 440.64 | 713 | 683 | 200.3 |
| D | 5 | 173 | 48214 | 237.35 | 713 | 683 | 200.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

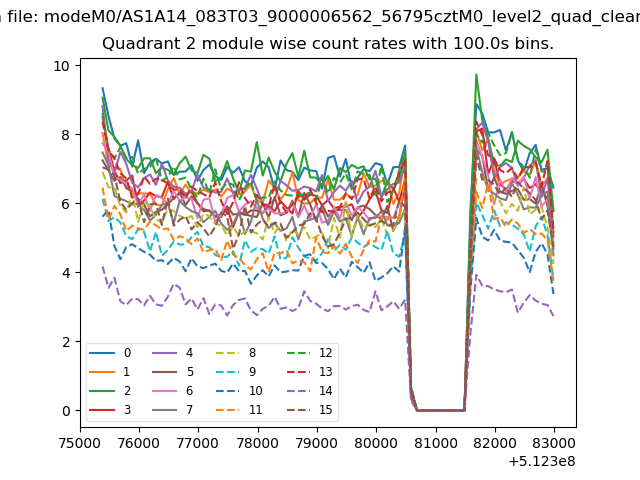

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

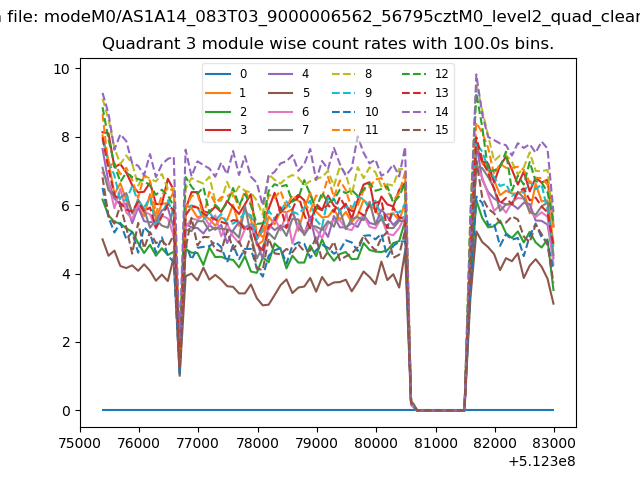

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
