| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56822cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56822cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,823,360 | 85,550,400 |
| Size | 426.1 MB | 81.6 MB |
| Events in quadrant A | 4,207,774 | 563,666 |
| Events in quadrant B | 3,387,685 | 599,761 |
| Events in quadrant C | 3,132,682 | 534,732 |
| Events in quadrant D | 5,345,564 | 473,009 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16799 | 1 |
| B | 0 | 14240 | 1 |
| C | 0 | 13494 | 1 |
| D | 0 | 20174 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6003 | 94 | 1.565884% |
| B | 6003 | 199 | 3.315009% |
| C | 6003 | 163 | 2.715309% |
| D | 6004 | 543 | 9.043971% |

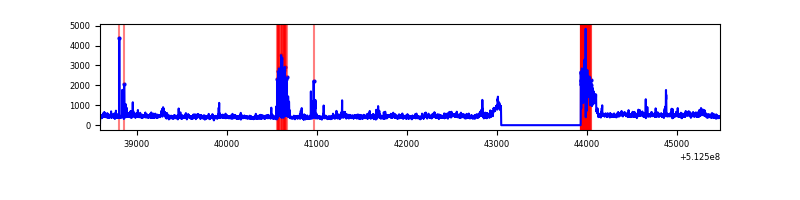

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6888 | 6004 | 21 | 21 | 0.30% | 0.35% |  |
| B | 6888 | 6004 | 65 | 65 | 0.94% | 1.08% |  |
| C | 6888 | 6004 | 84 | 84 | 1.22% | 1.40% |  |
| D | 6889 | 6005 | 468 | 468 | 6.79% | 7.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1462873 | 9262.19 | 640 | 624 | 157.9 |
| A | 10 | 251 | 183043 | 1155.48 | 640 | 624 | 157.9 |
| A | 7 | 64 | 64053 | 401.77 | 640 | 624 | 157.9 |
| B | 8 | 128 | 464893 | 3378.75 | 632 | 607 | 137.4 |
| B | 5 | 185 | 99076 | 716.59 | 632 | 607 | 137.4 |
| B | 4 | 206 | 97605 | 705.88 | 632 | 607 | 137.4 |
| C | 15 | 208 | 309095 | 1801.88 | 622 | 616 | 171.2 |
| C | 15 | 200 | 103283 | 599.7 | 622 | 616 | 171.2 |
| C | 13 | 3 | 72389 | 419.24 | 622 | 616 | 171.2 |
| D | 15 | 142 | 2391706 | 13981.69 | 610 | 582 | 171.0 |
| D | 11 | 129 | 180249 | 1050.57 | 610 | 582 | 171.0 |
| D | 2 | 249 | 171000 | 996.49 | 610 | 582 | 171.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

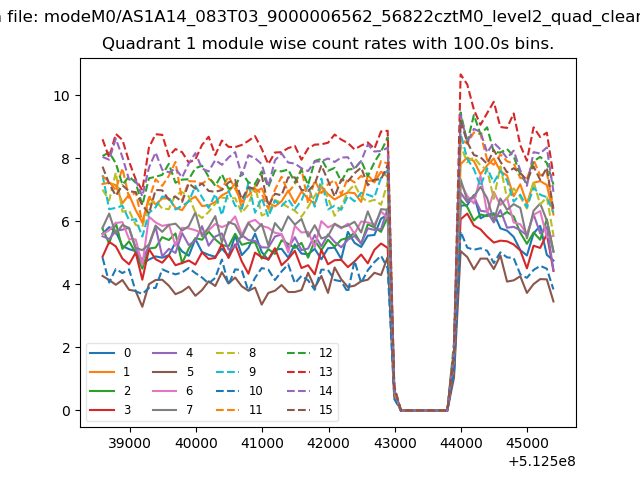

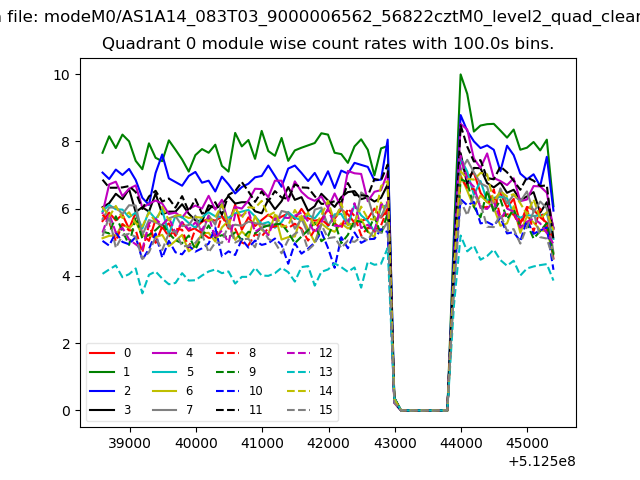

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

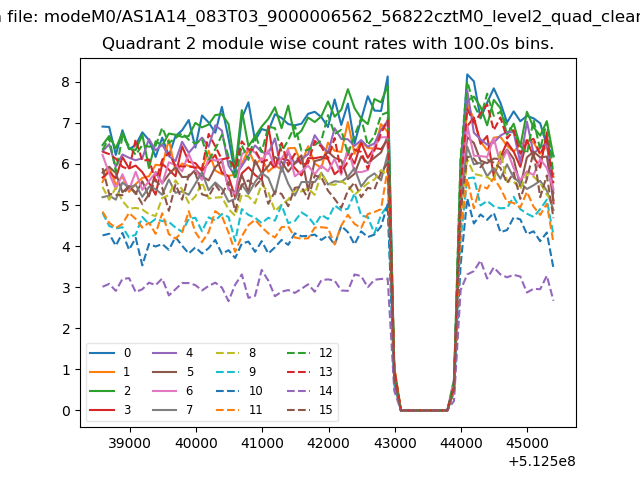

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

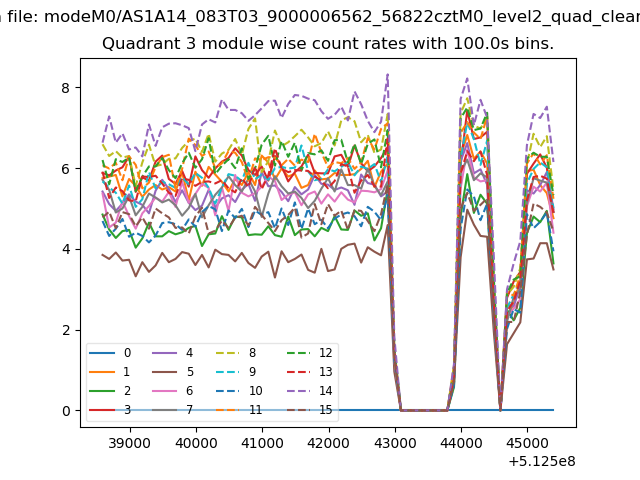

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

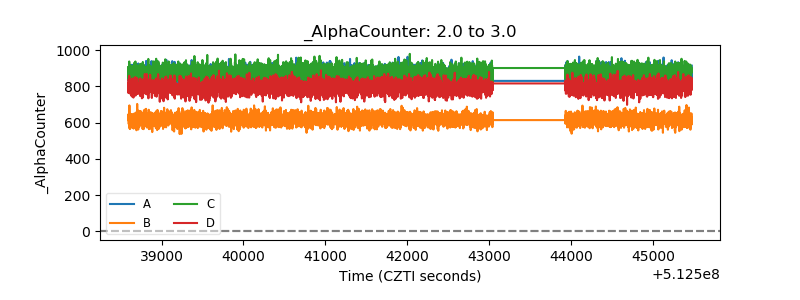

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

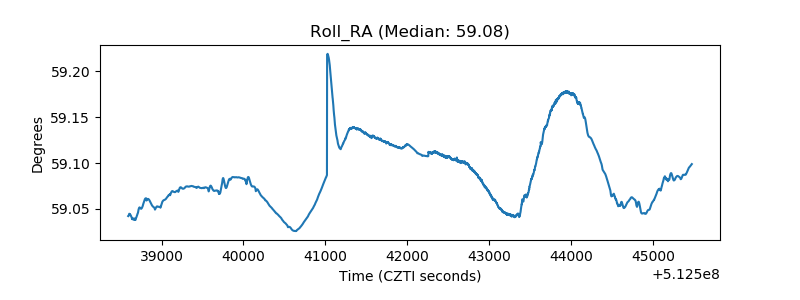

| _Roll_RA |  |

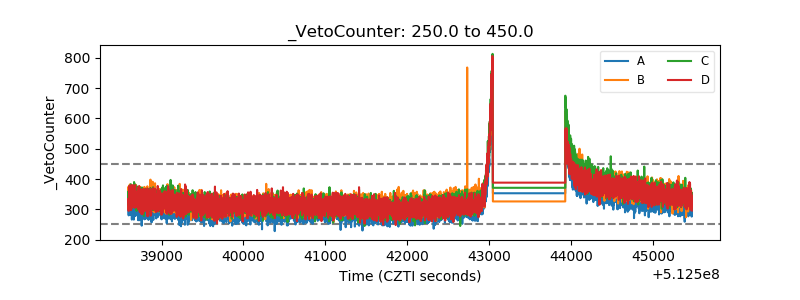

| Veto Counter |  |
