| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56827cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56827cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,339,840 | 92,295,360 |
| Size | 429.5 MB | 88.0 MB |
| Events in quadrant A | 5,030,261 | 606,227 |
| Events in quadrant B | 3,674,313 | 643,477 |
| Events in quadrant C | 4,153,139 | 562,929 |
| Events in quadrant D | 3,329,851 | 548,570 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19443 | 3 |
| B | 0 | 15210 | 1 |
| C | 0 | 16650 | 1 |
| D | 0 | 14363 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6210 | 177 | 2.850242% |
| B | 6211 | 269 | 4.331026% |
| C | 6211 | 380 | 6.118177% |
| D | 6211 | 145 | 2.334568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7255 | 6211 | 30 | 30 | 0.41% | 0.48% |  |
| B | 7256 | 6212 | 122 | 122 | 1.68% | 1.96% |  |
| C | 7256 | 6212 | 260 | 260 | 3.58% | 4.19% |  |
| D | 7256 | 6212 | 85 | 85 | 1.17% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2088216 | 12372.82 | 681 | 663 | 168.7 |
| A | 10 | 251 | 222630 | 1315.59 | 681 | 663 | 168.7 |
| A | 7 | 64 | 54551 | 319.39 | 681 | 663 | 168.7 |
| B | 0 | 213 | 275634 | 1933.46 | 661 | 637 | 142.2 |
| B | 5 | 185 | 267195 | 1874.13 | 661 | 637 | 142.2 |
| B | 4 | 206 | 124623 | 871.73 | 661 | 637 | 142.2 |
| C | 13 | 3 | 1210556 | 6866.98 | 643 | 637 | 176.2 |
| C | 9 | 38 | 109392 | 617.25 | 643 | 637 | 176.2 |
| C | 8 | 208 | 87270 | 491.69 | 643 | 637 | 176.2 |
| D | 2 | 249 | 434498 | 2316.84 | 660 | 629 | 187.3 |
| D | 2 | 31 | 95810 | 508.26 | 660 | 629 | 187.3 |
| D | 2 | 120 | 47669 | 251.19 | 660 | 629 | 187.3 |

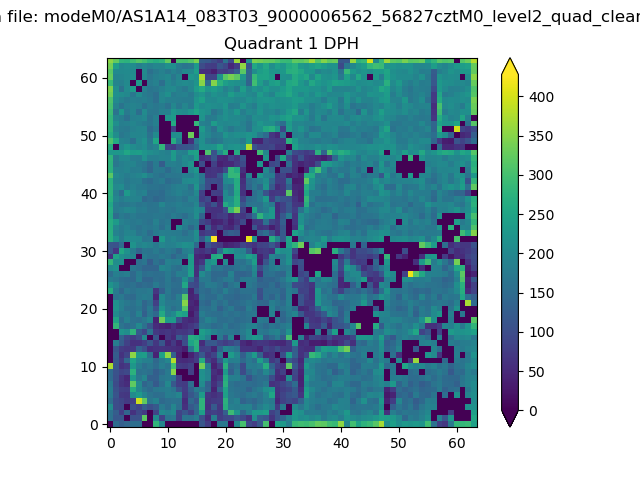

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

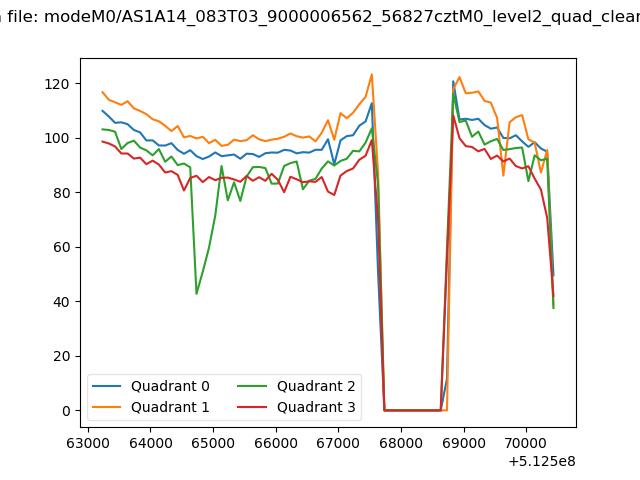

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

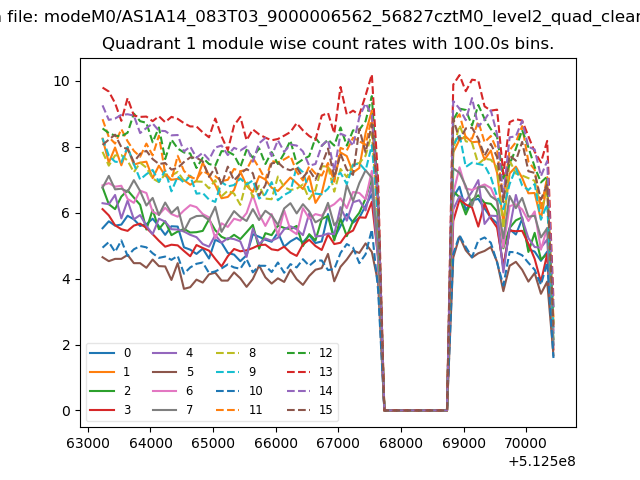

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

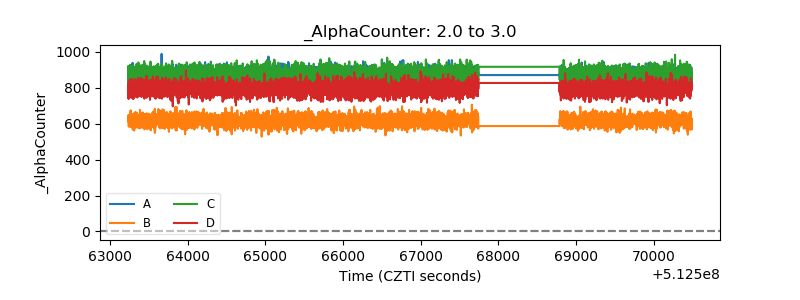

| Alpha Counter |  |
| _CPM_Rate |  |

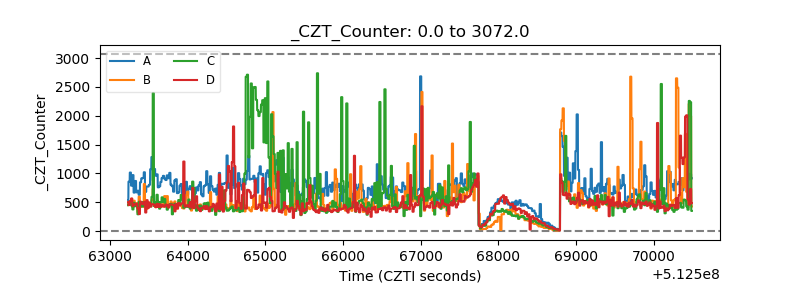

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

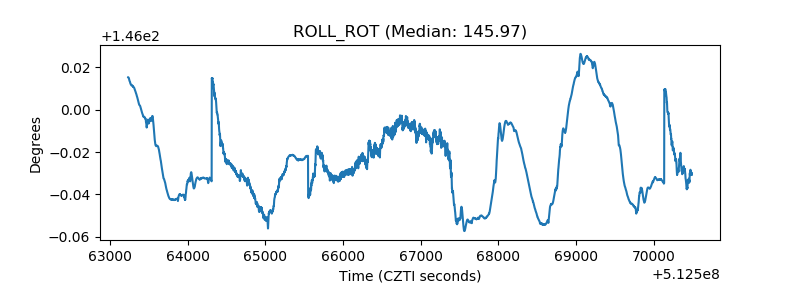

| _ROLL_ROT |  |

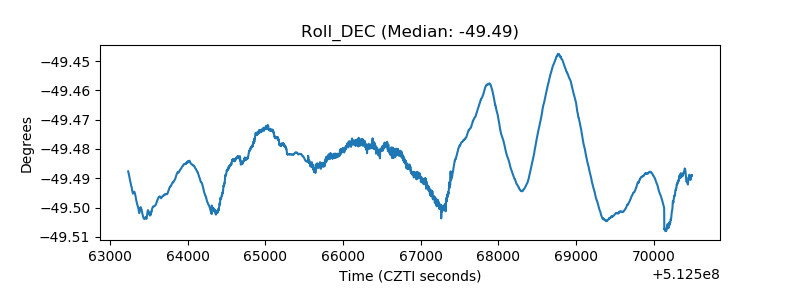

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
