| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56828cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56828cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,216,960 | 93,116,160 |
| Size | 458.0 MB | 88.8 MB |
| Events in quadrant A | 5,017,268 | 610,488 |
| Events in quadrant B | 4,026,185 | 642,583 |
| Events in quadrant C | 3,811,692 | 581,094 |
| Events in quadrant D | 4,423,537 | 537,891 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19530 | 1 |
| B | 0 | 16337 | 1 |
| C | 0 | 15915 | 1 |
| D | 0 | 17653 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6407 | 148 | 2.309973% |
| B | 6408 | 327 | 5.102996% |
| C | 6408 | 184 | 2.871411% |
| D | 6407 | 356 | 5.556423% |

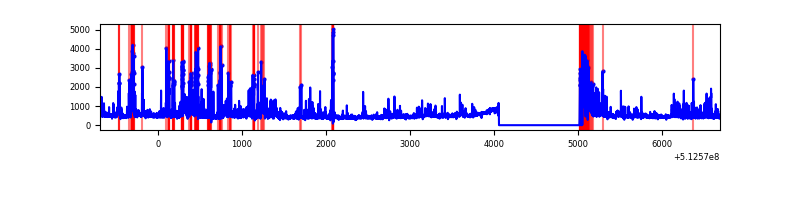

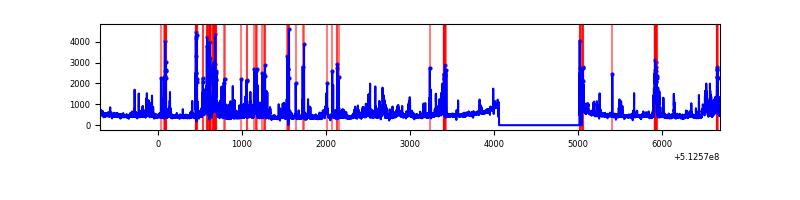

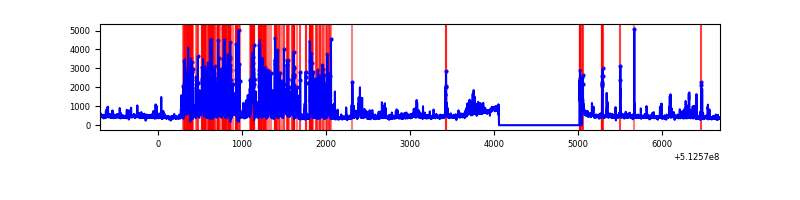

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7382 | 6409 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7383 | 6410 | 174 | 174 | 2.36% | 2.71% |  |
| C | 7383 | 6409 | 120 | 120 | 1.63% | 1.87% |  |
| D | 7382 | 6409 | 302 | 302 | 4.09% | 4.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2154618 | 12549.21 | 692 | 673 | 171.6 |
| A | 7 | 64 | 71768 | 414.21 | 692 | 673 | 171.6 |
| A | 10 | 251 | 70581 | 407.29 | 692 | 673 | 171.6 |
| B | 0 | 213 | 465659 | 3223.74 | 670 | 647 | 144.2 |
| B | 5 | 185 | 389820 | 2697.98 | 670 | 647 | 144.2 |
| B | 10 | 16 | 183240 | 1265.85 | 670 | 647 | 144.2 |
| C | 13 | 3 | 516307 | 2860.35 | 659 | 652 | 180.3 |
| C | 8 | 208 | 158832 | 877.43 | 659 | 652 | 180.3 |
| C | 15 | 208 | 157941 | 872.49 | 659 | 652 | 180.3 |
| D | 2 | 249 | 1296142 | 7031.67 | 656 | 626 | 184.2 |
| D | 6 | 30 | 249438 | 1350.48 | 656 | 626 | 184.2 |
| D | 6 | 239 | 100065 | 539.72 | 656 | 626 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

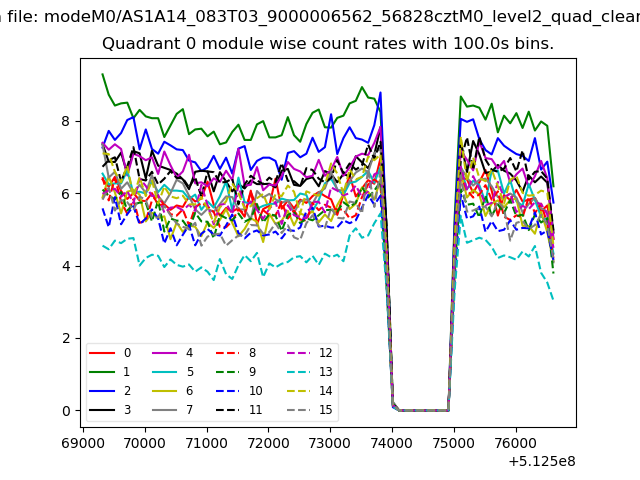

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

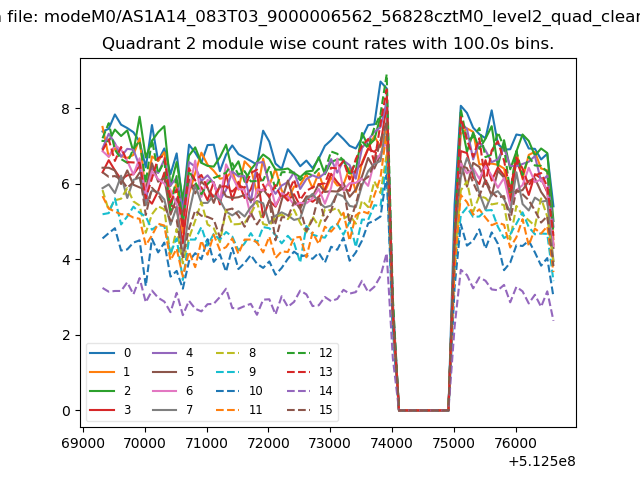

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

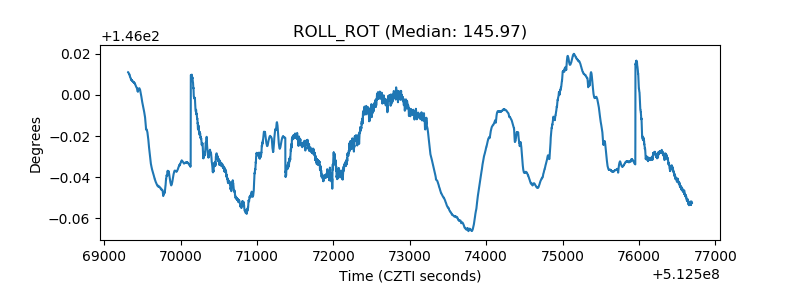

| _ROLL_ROT |  |

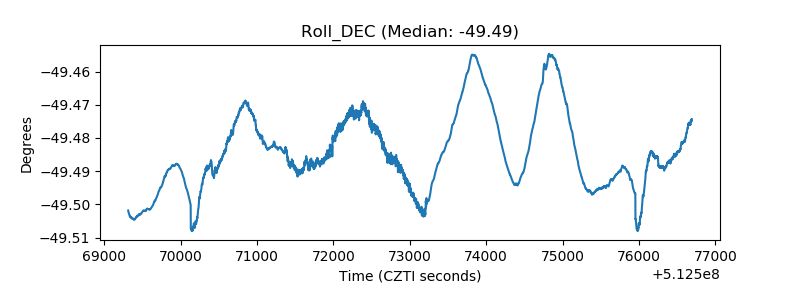

| _Roll_DEC |  |

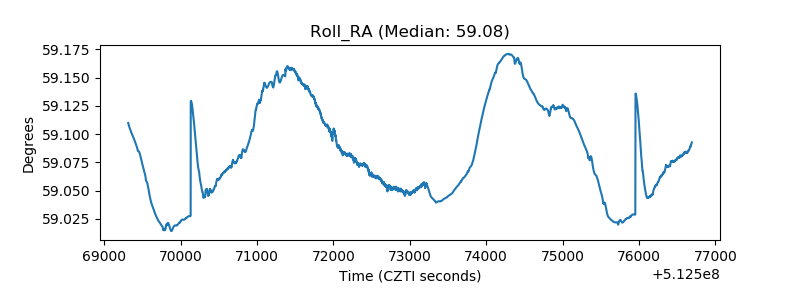

| _Roll_RA |  |
| Veto Counter |  |
