| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56830cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56830cztM0_level2_quad_clean.evt |
| Size (bytes) | 590,590,080 | 105,471,360 |
| Size | 563.2 MB | 100.6 MB |
| Events in quadrant A | 6,726,412 | 681,947 |
| Events in quadrant B | 4,216,913 | 745,593 |
| Events in quadrant C | 6,552,032 | 615,924 |
| Events in quadrant D | 3,790,628 | 632,641 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25376 | 1 |
| B | 0 | 17763 | 1 |
| C | 0 | 24651 | 1 |
| D | 0 | 16726 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7430 | 306 | 4.118439% |
| B | 7431 | 185 | 2.489571% |
| C | 7431 | 689 | 9.271969% |
| D | 7431 | 74 | 0.995828% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

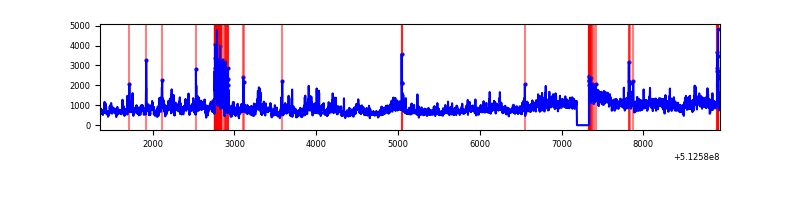

| A | 7580 | 7431 | 95 | 95 | 1.25% | 1.28% |  |

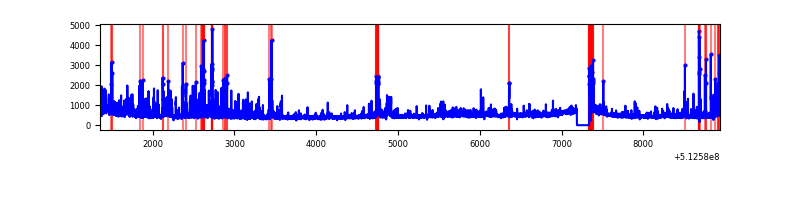

| B | 7581 | 7432 | 85 | 85 | 1.12% | 1.14% |  |
| C | 7581 | 7432 | 533 | 533 | 7.03% | 7.17% |  |

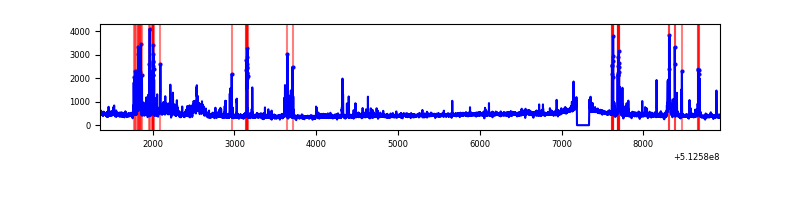

| D | 7581 | 7432 | 62 | 62 | 0.82% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 3067178 | 15688.77 | 788 | 768 | 195.5 |
| A | 10 | 251 | 357470 | 1825.01 | 788 | 768 | 195.5 |
| A | 7 | 255 | 169179 | 861.65 | 788 | 768 | 195.5 |
| B | 5 | 185 | 525544 | 3111.8 | 784 | 755 | 168.6 |
| B | 10 | 16 | 103755 | 610.75 | 784 | 755 | 168.6 |
| B | 5 | 172 | 85252 | 501.03 | 784 | 755 | 168.6 |
| C | 9 | 38 | 1436663 | 7219.51 | 727 | 716 | 198.9 |
| C | 12 | 249 | 812596 | 4081.89 | 727 | 716 | 198.9 |
| C | 13 | 3 | 604445 | 3035.37 | 727 | 716 | 198.9 |
| D | 2 | 249 | 248870 | 1154.28 | 767 | 732 | 215.0 |
| D | 2 | 31 | 183244 | 849.0 | 767 | 732 | 215.0 |
| D | 2 | 120 | 113457 | 524.37 | 767 | 732 | 215.0 |

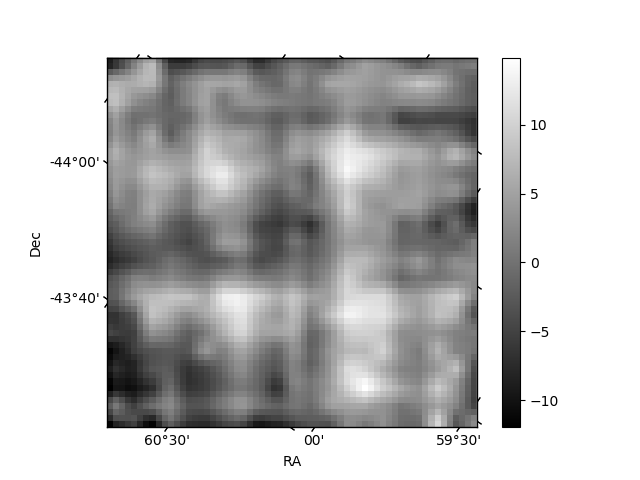

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

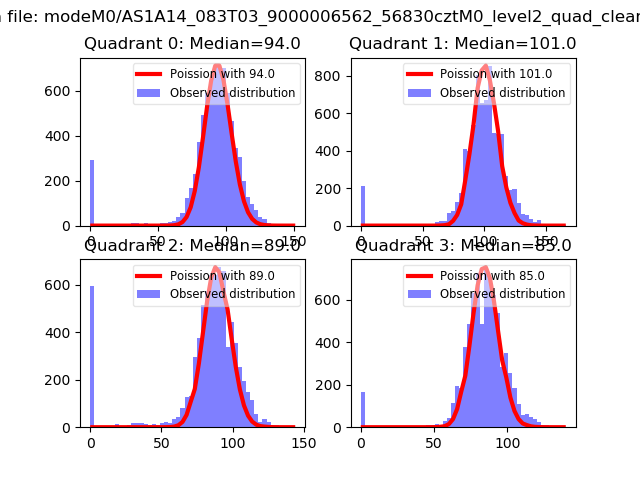

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

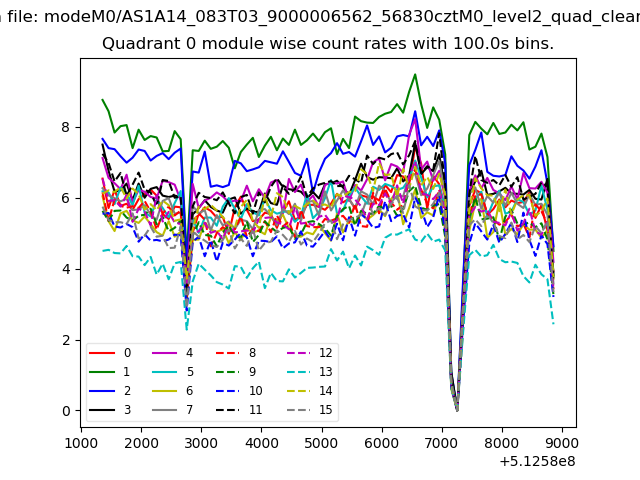

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

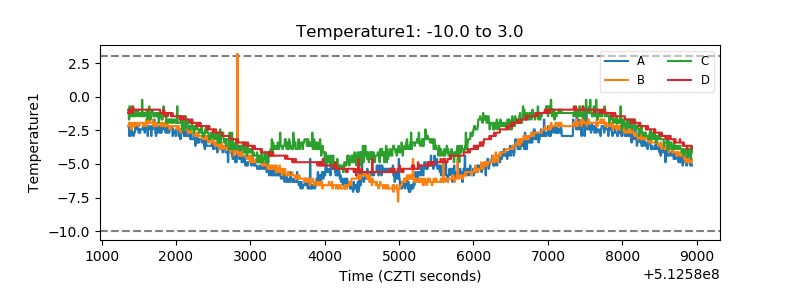

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

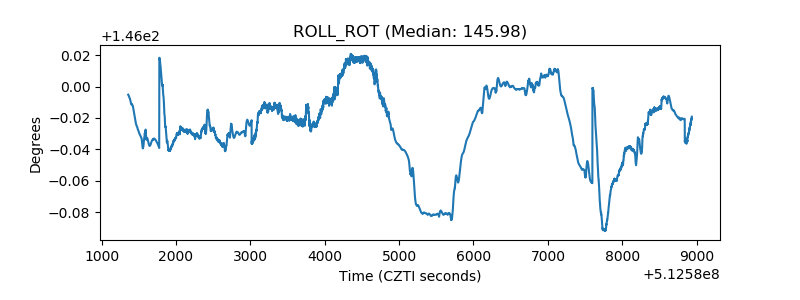

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
