| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56840cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56840cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,696,320 | 80,956,800 |
| Size | 602.4 MB | 77.2 MB |
| Events in quadrant A | 5,558,358 | 599,104 |
| Events in quadrant B | 3,230,844 | 641,438 |
| Events in quadrant C | 10,735,692 | 250,395 |
| Events in quadrant D | 3,389,150 | 538,173 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20921 | 1 |
| B | 0 | 13662 | 1 |
| C | 0 | 36164 | 1 |
| D | 0 | 14202 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6042 | 183 | 3.028798% |
| B | 6042 | 190 | 3.144654% |
| C | 6043 | 3502 | 57.951349% |
| D | 6043 | 198 | 3.276518% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7167 | 6043 | 101 | 101 | 1.41% | 1.67% |  |
| B | 7167 | 6043 | 57 | 57 | 0.80% | 0.94% |  |
| C | 7168 | 6044 | 3296 | 3296 | 45.98% | 54.53% |  |
| D | 7168 | 6044 | 105 | 105 | 1.46% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2818299 | 17152.85 | 668 | 650 | 164.3 |
| A | 10 | 251 | 87925 | 531.3 | 668 | 650 | 164.3 |
| A | 12 | 3 | 32673 | 194.94 | 668 | 650 | 164.3 |
| B | 5 | 185 | 215866 | 1521.58 | 655 | 632 | 141.5 |
| B | 10 | 16 | 146930 | 1034.24 | 655 | 632 | 141.5 |
| B | 10 | 247 | 66133 | 463.05 | 655 | 632 | 141.5 |
| C | 12 | 249 | 8789799 | 75256.33 | 423 | 418 | 116.8 |
| C | 12 | 252 | 149878 | 1279.7 | 423 | 418 | 116.8 |
| C | 1 | 16 | 46218 | 392.15 | 423 | 418 | 116.8 |
| D | 8 | 240 | 408022 | 2241.14 | 648 | 620 | 181.8 |
| D | 2 | 249 | 139099 | 761.78 | 648 | 620 | 181.8 |
| D | 2 | 31 | 62393 | 339.82 | 648 | 620 | 181.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

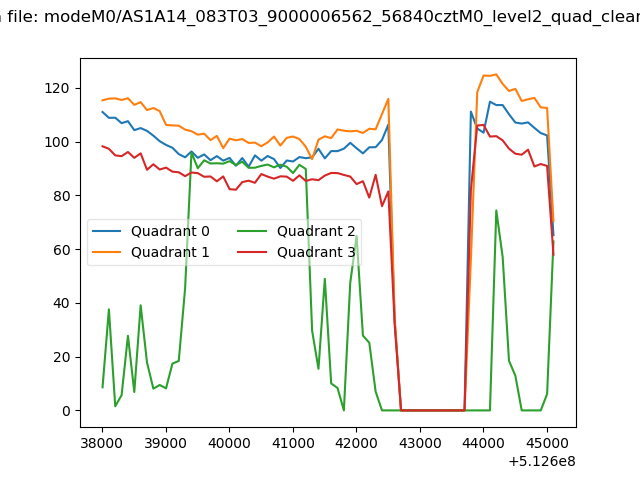

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

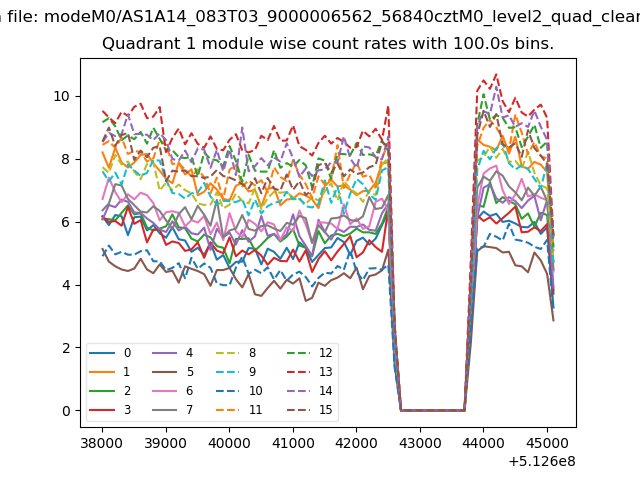

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
