| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T03_9000006562_56871cztM0_level2.fits | modeM0/AS1A14_083T03_9000006562_56871cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,925,440 | 93,755,520 |
| Size | 424.3 MB | 89.4 MB |
| Events in quadrant A | 3,192,265 | 625,887 |
| Events in quadrant B | 4,993,928 | 610,530 |
| Events in quadrant C | 3,319,716 | 601,941 |
| Events in quadrant D | 4,462,118 | 550,648 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14188 | 1 |
| B | 0 | 19236 | 3 |
| C | 0 | 14358 | 1 |
| D | 0 | 17728 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6447 | 146 | 2.264619% |
| B | 6446 | 763 | 11.836798% |
| C | 6446 | 97 | 1.504809% |
| D | 6447 | 383 | 5.940748% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

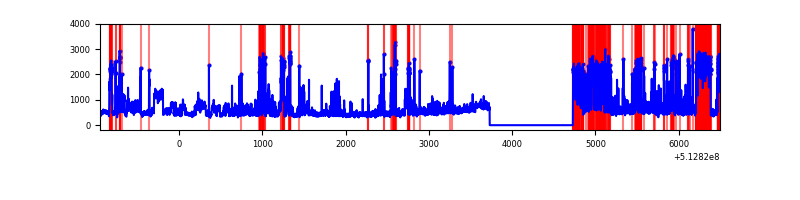

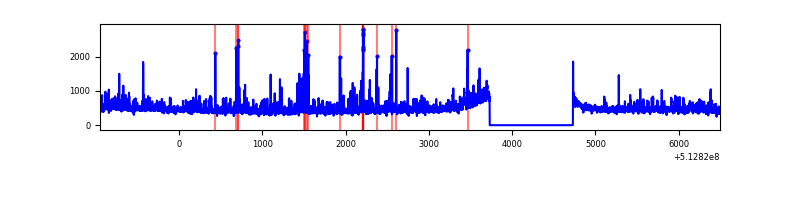

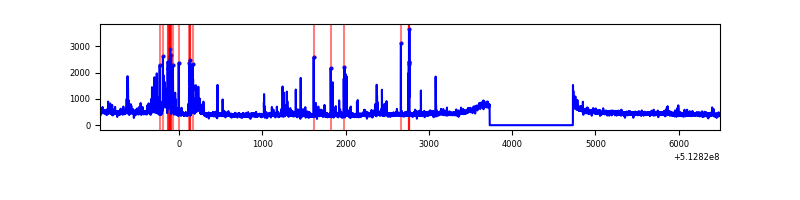

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6447 | 30 | 30 | 0.40% | 0.47% |  |
| B | 7445 | 6445 | 507 | 507 | 6.81% | 7.87% |  |
| C | 7446 | 6446 | 21 | 21 | 0.28% | 0.33% |  |
| D | 7447 | 6447 | 313 | 313 | 4.20% | 4.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 313630 | 1799.36 | 706 | 688 | 173.9 |
| A | 3 | 62 | 49592 | 281.19 | 706 | 688 | 173.9 |
| A | 4 | 13 | 31798 | 178.88 | 706 | 688 | 173.9 |
| B | 5 | 185 | 1428504 | 10137.68 | 647 | 621 | 140.8 |
| B | 10 | 16 | 556734 | 3948.29 | 647 | 621 | 140.8 |
| B | 0 | 197 | 122511 | 865.39 | 647 | 621 | 140.8 |
| C | 1 | 16 | 379119 | 2020.38 | 679 | 671 | 187.3 |
| C | 6 | 223 | 104208 | 552.74 | 679 | 671 | 187.3 |
| C | 14 | 254 | 32225 | 168.45 | 679 | 671 | 187.3 |
| D | 8 | 240 | 631987 | 3320.69 | 674 | 641 | 190.1 |
| D | 2 | 249 | 467791 | 2457.07 | 674 | 641 | 190.1 |
| D | 7 | 96 | 344823 | 1810.29 | 674 | 641 | 190.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

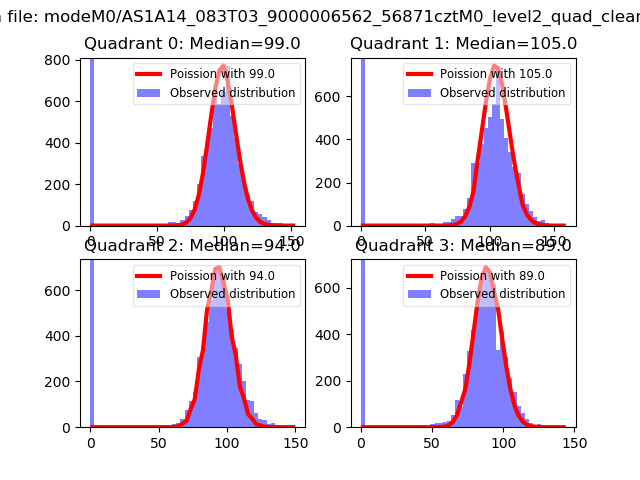

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

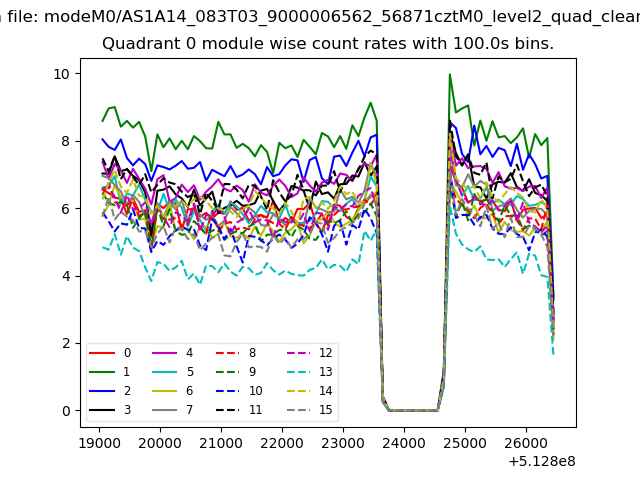

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

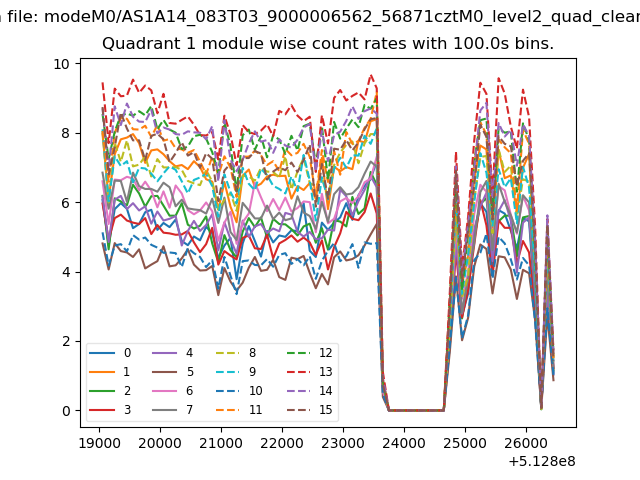

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

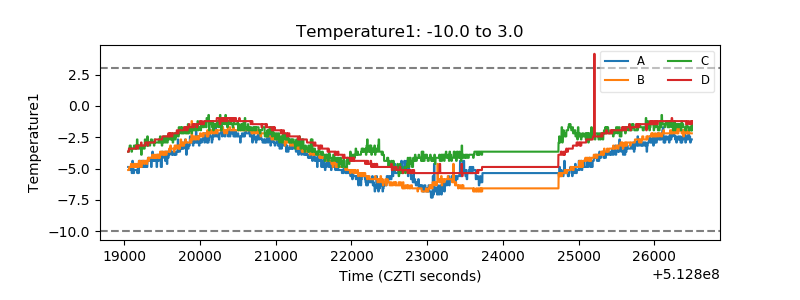

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

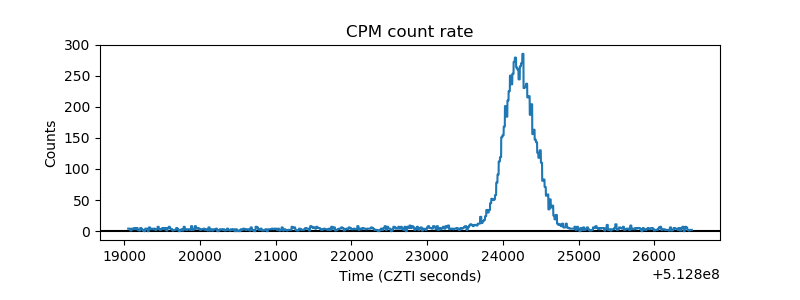

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
