| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T14_9000006564_56895cztM0_level2.fits | modeM0/AS1A14_083T14_9000006564_56895cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,974,080 | 99,696,960 |
| Size | 506.4 MB | 95.1 MB |
| Events in quadrant A | 5,778,513 | 605,935 |
| Events in quadrant B | 4,137,561 | 672,437 |
| Events in quadrant C | 3,953,150 | 648,136 |
| Events in quadrant D | 5,233,455 | 596,989 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22623 | 2 |
| B | 0 | 17653 | 2 |
| C | 0 | 16542 | 2 |
| D | 0 | 20753 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7103 | 1036 | 14.585386% |
| B | 7103 | 548 | 7.715050% |
| C | 7103 | 165 | 2.322962% |
| D | 7103 | 502 | 7.067436% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

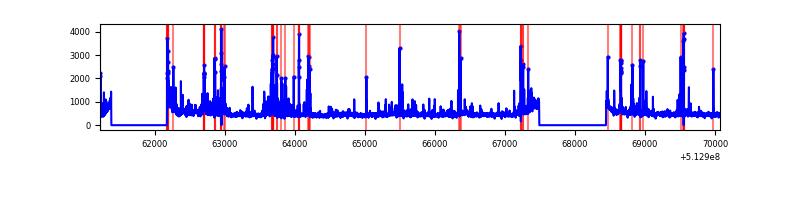

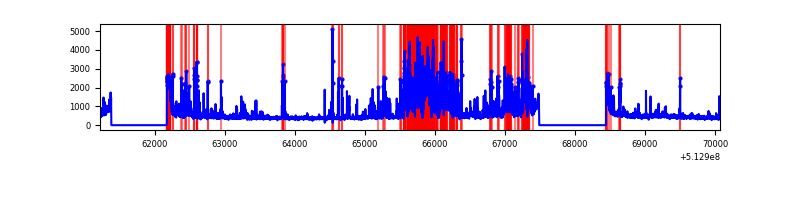

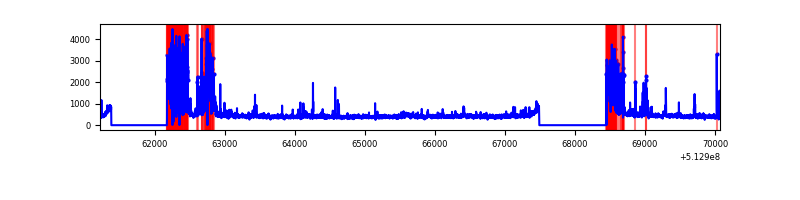

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8853 | 7105 | 762 | 762 | 8.61% | 10.72% |  |
| B | 8853 | 7105 | 275 | 275 | 3.11% | 3.87% |  |
| C | 8853 | 7104 | 78 | 78 | 0.88% | 1.10% |  |
| D | 8853 | 7105 | 457 | 457 | 5.16% | 6.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2759499 | 15701.15 | 696 | 678 | 175.7 |
| A | 4 | 13 | 182562 | 1035.15 | 696 | 678 | 175.7 |
| A | 7 | 14 | 71019 | 400.33 | 696 | 678 | 175.7 |
| B | 10 | 16 | 1125643 | 7447.04 | 703 | 680 | 151.1 |
| B | 5 | 185 | 59691 | 390.64 | 703 | 680 | 151.1 |
| B | 10 | 32 | 47726 | 311.44 | 703 | 680 | 151.1 |
| C | 1 | 16 | 331090 | 1645.12 | 733 | 726 | 200.8 |
| C | 6 | 223 | 233591 | 1159.6 | 733 | 726 | 200.8 |
| C | 13 | 3 | 211079 | 1047.5 | 733 | 726 | 200.8 |
| D | 8 | 160 | 790783 | 3870.53 | 715 | 680 | 204.1 |
| D | 8 | 240 | 290887 | 1421.66 | 715 | 680 | 204.1 |
| D | 7 | 96 | 243421 | 1189.13 | 715 | 680 | 204.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

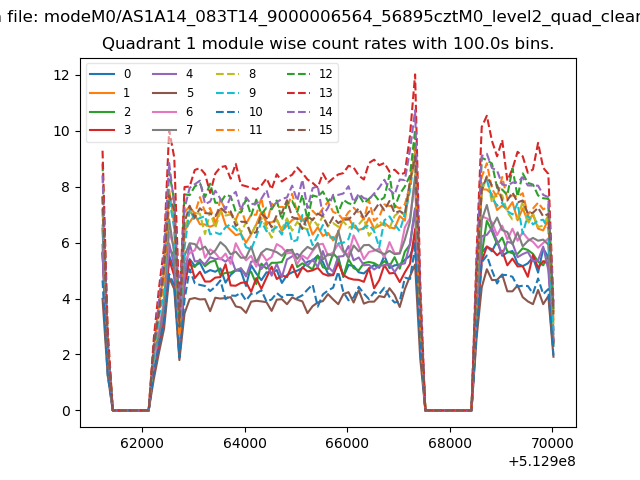

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

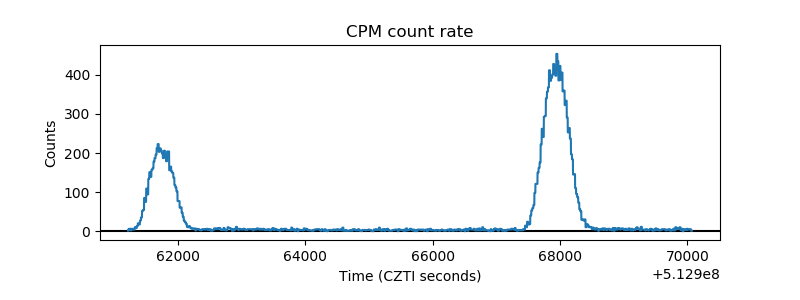

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

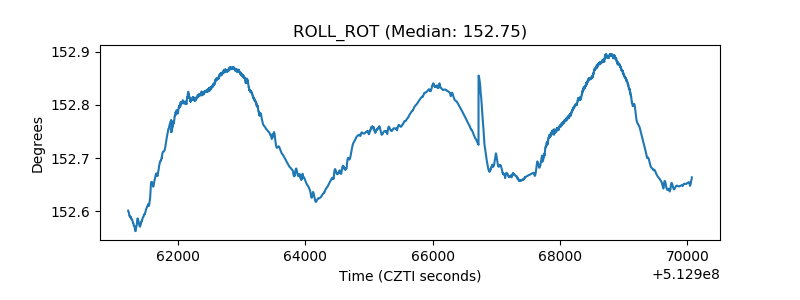

| _ROLL_ROT |  |
| _Roll_DEC |  |

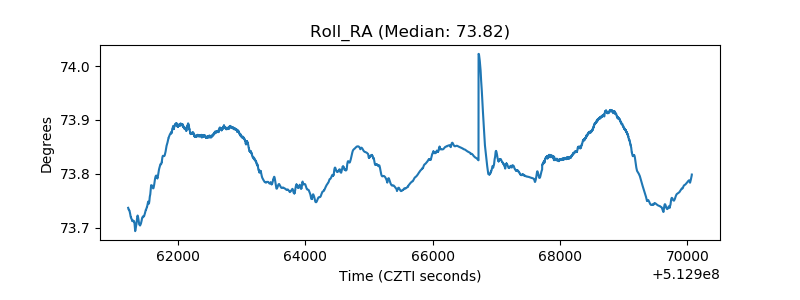

| _Roll_RA |  |

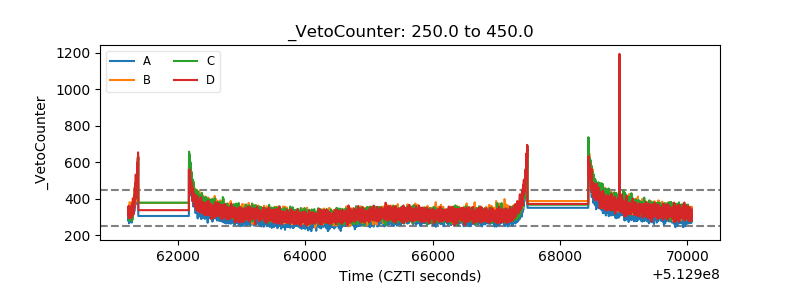

| Veto Counter |  |
