| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T14_9000006564_56905cztM0_level2.fits | modeM0/AS1A14_083T14_9000006564_56905cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,103,360 | 110,070,720 |
| Size | 605.7 MB | 105.0 MB |
| Events in quadrant A | 4,035,560 | 745,963 |
| Events in quadrant B | 6,611,599 | 702,665 |
| Events in quadrant C | 4,656,547 | 704,878 |
| Events in quadrant D | 7,578,892 | 617,286 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18020 | 0 |
| B | 0 | 25468 | 0 |
| C | 0 | 19165 | 1 |
| D | 0 | 28103 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8080 | 99 | 1.225248% |
| B | 8080 | 1024 | 12.673267% |
| C | 8080 | 130 | 1.608911% |
| D | 8080 | 896 | 11.089109% |

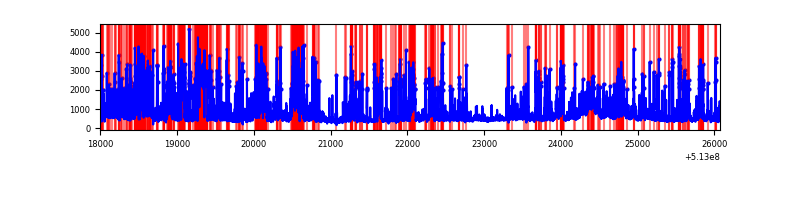

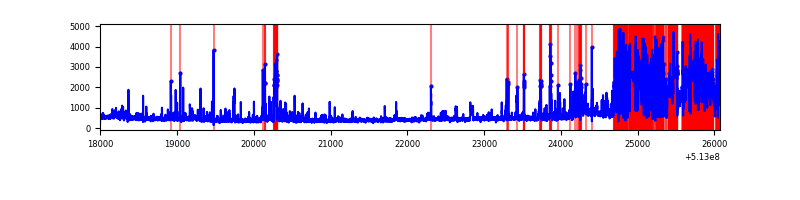

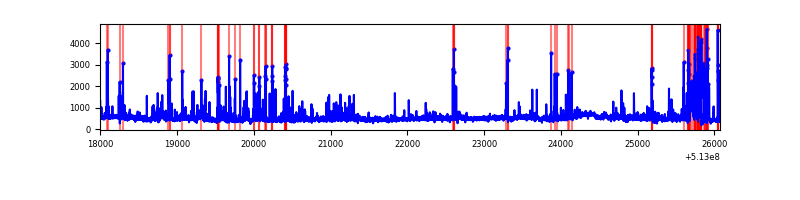

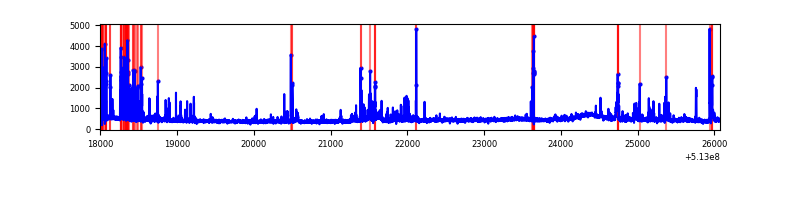

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8080 | 8080 | 75 | 75 | 0.93% | 0.93% |  |
| B | 8079 | 8079 | 882 | 882 | 10.92% | 10.92% |  |
| C | 8080 | 8080 | 122 | 122 | 1.51% | 1.51% |  |
| D | 8080 | 8080 | 819 | 819 | 10.14% | 10.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 275213 | 1310.8 | 838 | 815 | 209.3 |
| A | 3 | 62 | 207363 | 986.68 | 838 | 815 | 209.3 |
| A | 4 | 3 | 110736 | 525.09 | 838 | 815 | 209.3 |
| B | 5 | 185 | 2724008 | 16453.33 | 771 | 743 | 165.5 |
| B | 5 | 172 | 200994 | 1209.87 | 771 | 743 | 165.5 |
| B | 7 | 0 | 139908 | 840.8 | 771 | 743 | 165.5 |
| C | 13 | 3 | 562919 | 2565.84 | 801 | 794 | 219.1 |
| C | 1 | 16 | 502829 | 2291.56 | 801 | 794 | 219.1 |
| C | 12 | 254 | 176554 | 802.26 | 801 | 794 | 219.1 |
| D | 2 | 249 | 1199391 | 5418.47 | 774 | 738 | 221.2 |
| D | 8 | 240 | 1001670 | 4524.68 | 774 | 738 | 221.2 |
| D | 2 | 31 | 535066 | 2415.41 | 774 | 738 | 221.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

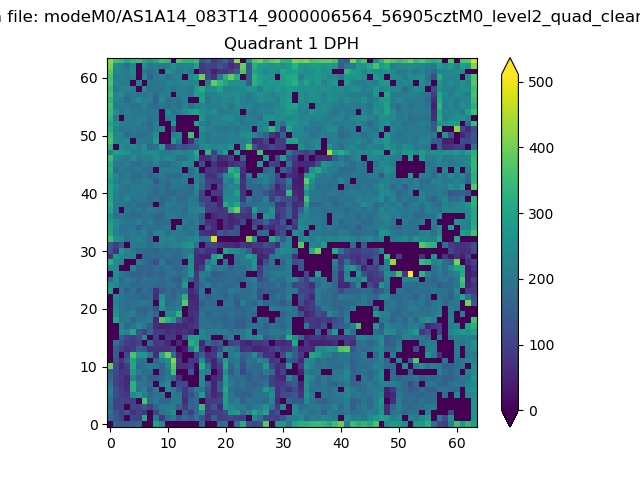

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

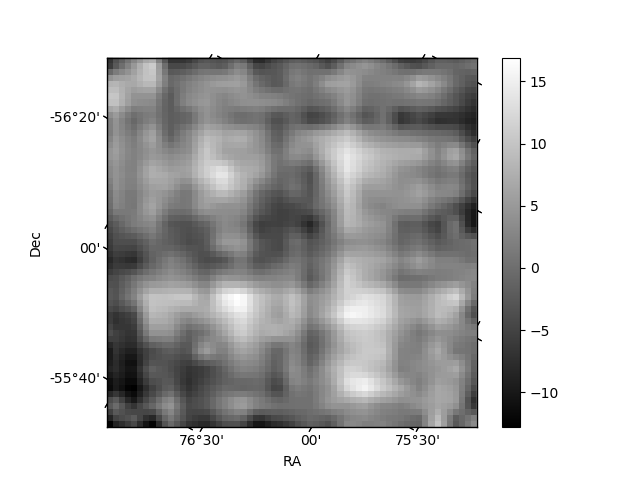

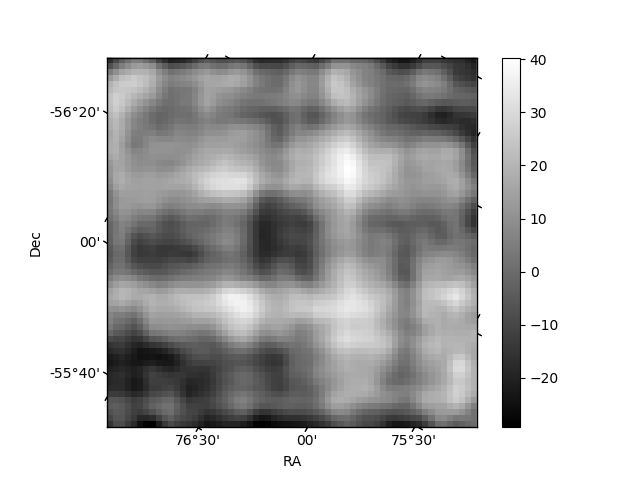

| Plot type | Count rate plots | Images |
|---|---|---|

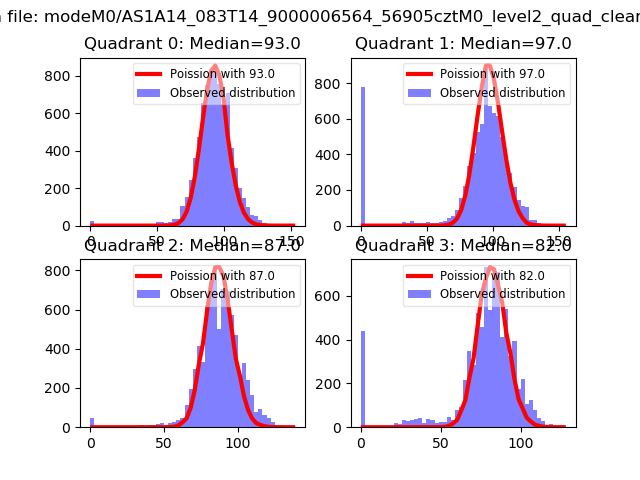

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

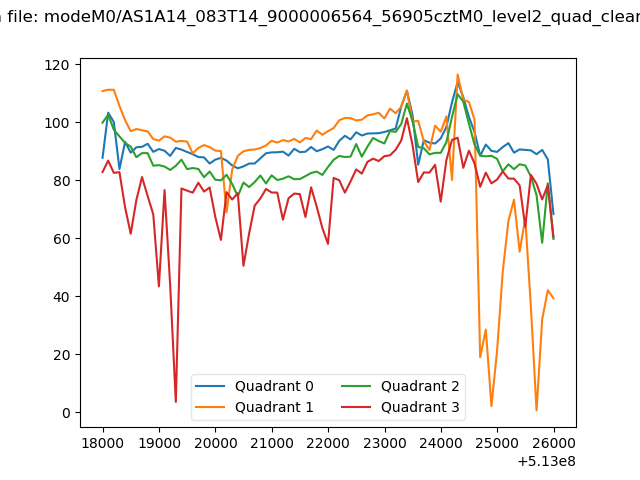

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

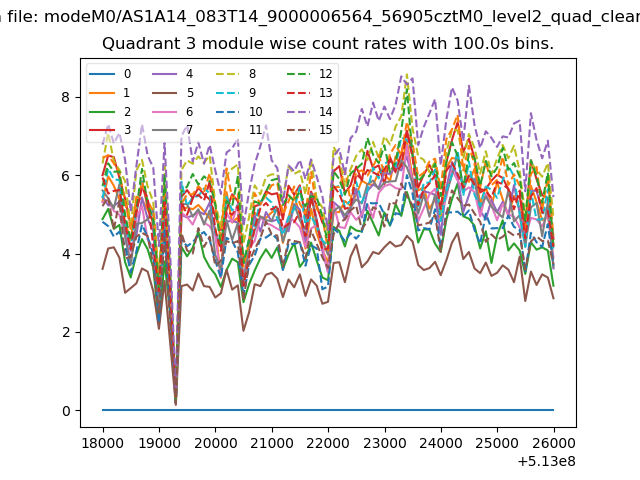

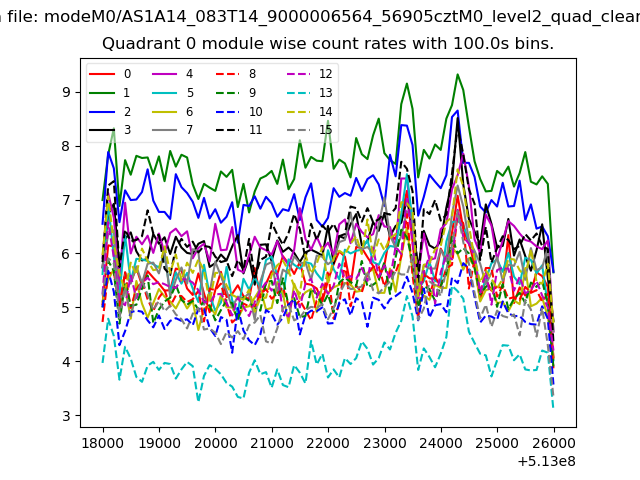

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

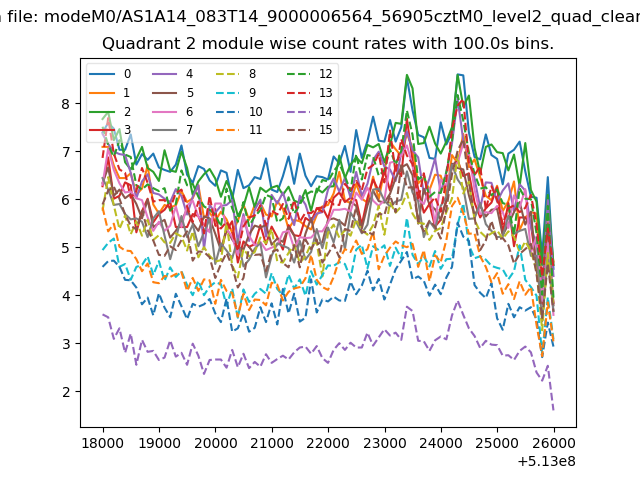

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

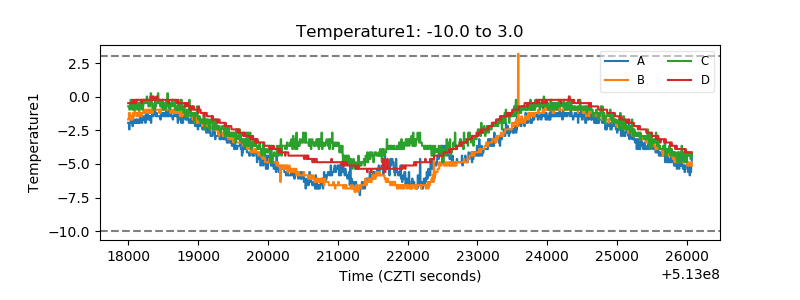

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

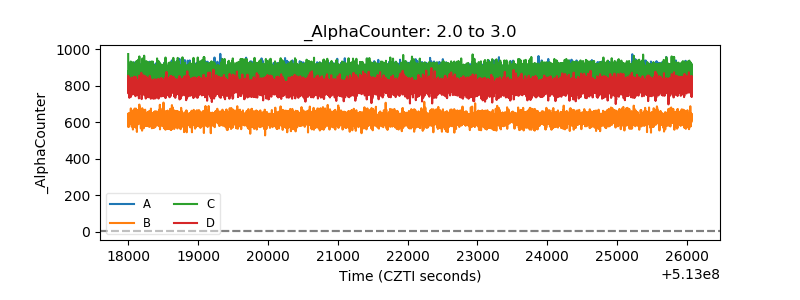

| Alpha Counter |  |

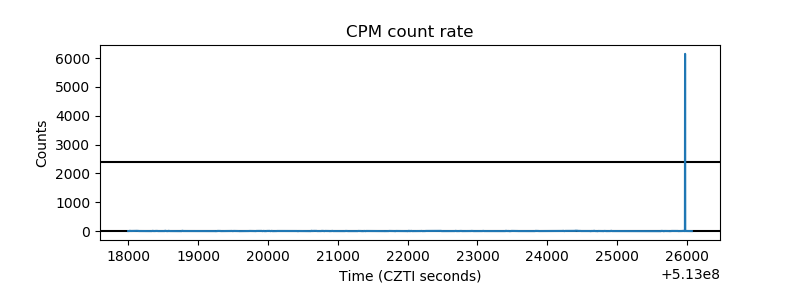

| _CPM_Rate |  |

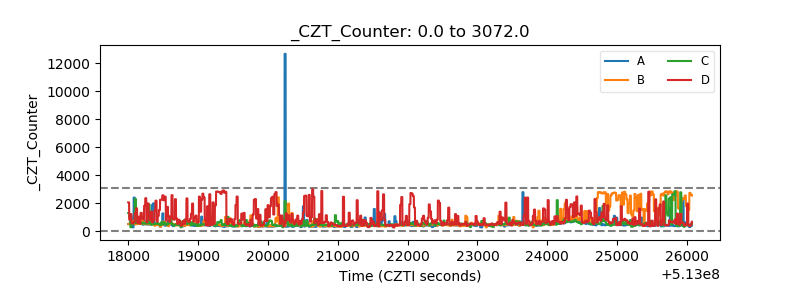

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

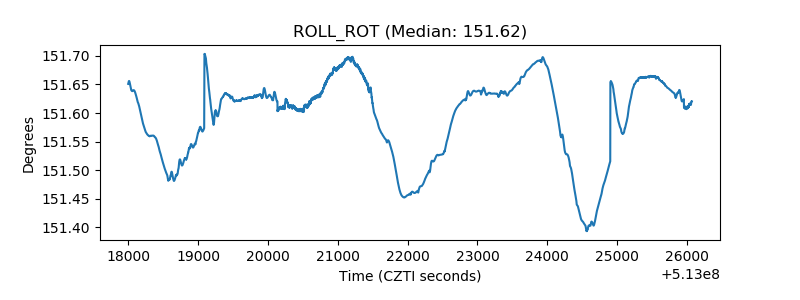

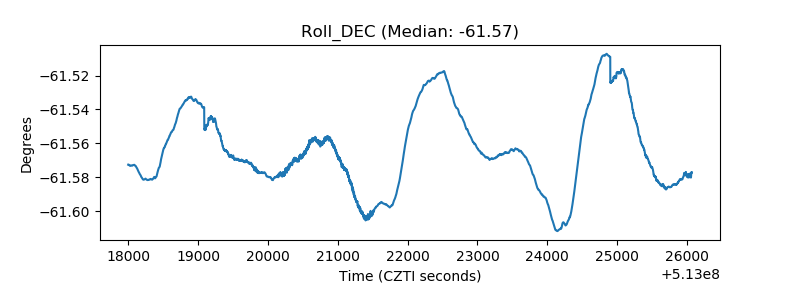

| _ROLL_ROT |  |
| _Roll_DEC |  |

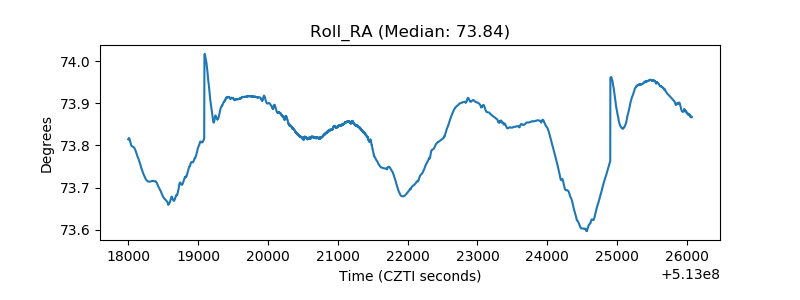

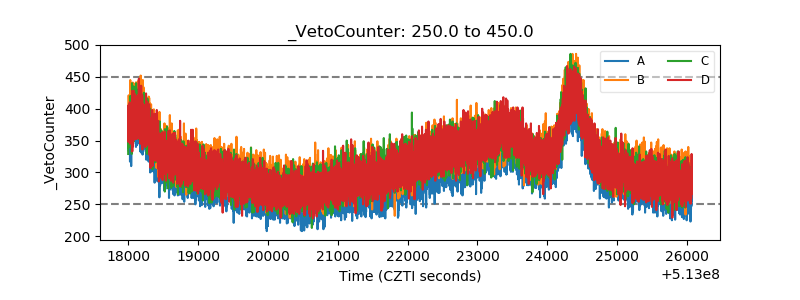

| _Roll_RA |  |
| Veto Counter |  |
