| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T14_9000006564_56911cztM0_level2.fits | modeM0/AS1A14_083T14_9000006564_56911cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,694,400 | 79,842,240 |
| Size | 468.0 MB | 76.1 MB |
| Events in quadrant A | 4,169,678 | 515,330 |
| Events in quadrant B | 4,419,270 | 549,109 |
| Events in quadrant C | 5,014,542 | 462,904 |
| Events in quadrant D | 4,098,191 | 474,739 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16751 | 4 |
| B | 0 | 17375 | 1 |
| C | 0 | 19240 | 1 |
| D | 0 | 16433 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5941 | 490 | 8.247770% |
| B | 5941 | 634 | 10.671604% |
| C | 5942 | 900 | 15.146415% |
| D | 5942 | 413 | 6.950522% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

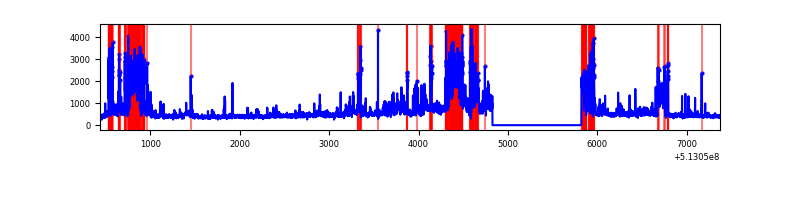

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6935 | 5940 | 392 | 392 | 5.65% | 6.60% |  |
| B | 6936 | 5942 | 408 | 408 | 5.88% | 6.87% |  |
| C | 6937 | 5943 | 677 | 677 | 9.76% | 11.39% |  |
| D | 6937 | 5943 | 330 | 330 | 4.76% | 5.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1417712 | 9627.45 | 588 | 571 | 147.2 |
| A | 3 | 14 | 156642 | 1060.28 | 588 | 571 | 147.2 |
| A | 4 | 13 | 100971 | 682.07 | 588 | 571 | 147.2 |
| B | 5 | 172 | 922056 | 7400.98 | 583 | 563 | 124.5 |
| B | 10 | 16 | 505607 | 4056.27 | 583 | 563 | 124.5 |
| B | 8 | 128 | 368379 | 2954.12 | 583 | 563 | 124.5 |
| C | 13 | 3 | 2669728 | 17204.0 | 566 | 559 | 155.1 |
| C | 14 | 254 | 30479 | 192.85 | 566 | 559 | 155.1 |
| C | 7 | 87 | 26073 | 164.45 | 566 | 559 | 155.1 |
| D | 0 | 160 | 672659 | 4067.98 | 580 | 554 | 165.2 |
| D | 8 | 240 | 381358 | 2304.85 | 580 | 554 | 165.2 |
| D | 3 | 12 | 222461 | 1343.11 | 580 | 554 | 165.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

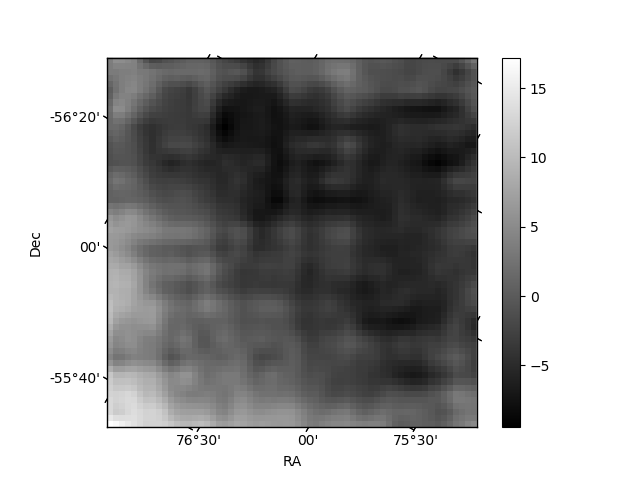

| Plot type | Count rate plots | Images |
|---|---|---|

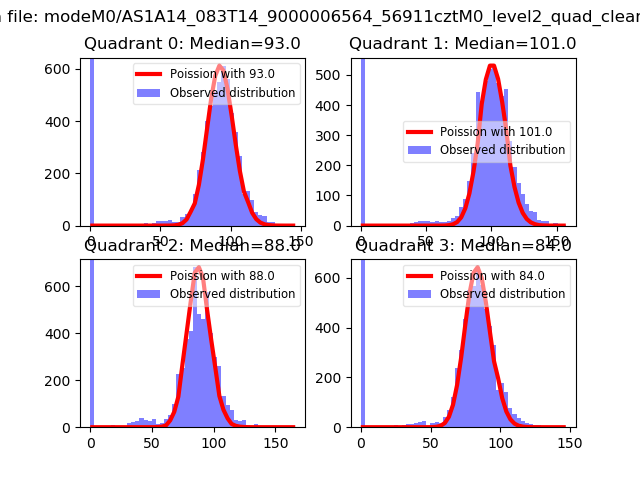

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

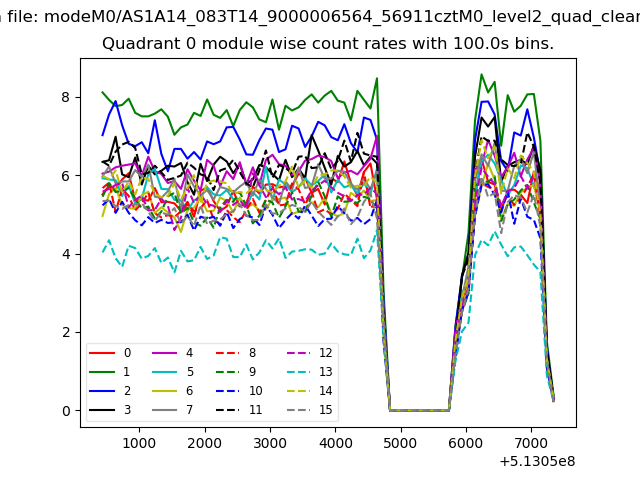

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

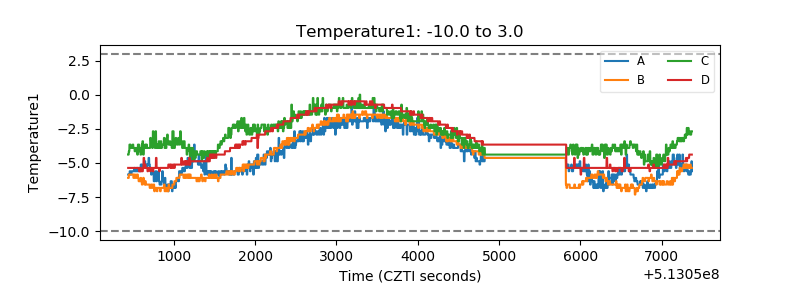

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

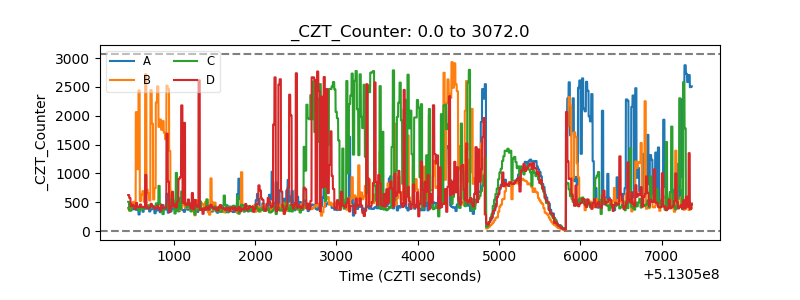

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

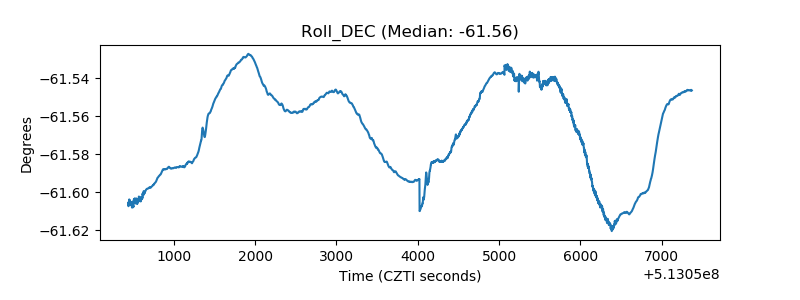

| _Roll_DEC |  |
| _Roll_RA |  |

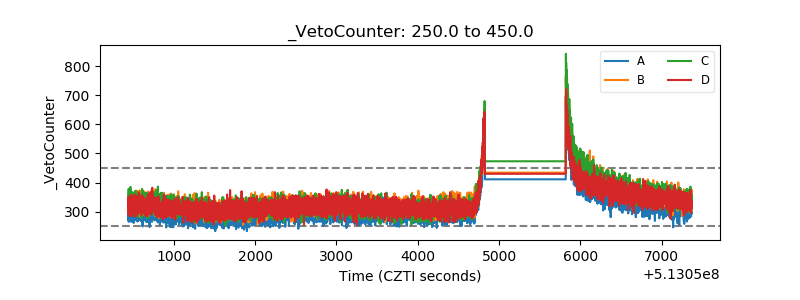

| Veto Counter |  |
