| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T14_9000006564_56922cztM0_level2.fits | modeM0/AS1A14_083T14_9000006564_56922cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,778,488,640 | 195,384,960 |
| Size | 2.6 GB | 186.3 MB |
| Events in quadrant A | 10,136,919 | 1,742,519 |
| Events in quadrant B | 14,996,755 | 1,708,239 |
| Events in quadrant C | 29,543,802 | 1,064,210 |
| Events in quadrant D | 46,687,980 | 72,405 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44874 | 2 |
| B | 0 | 58052 | 2 |
| C | 0 | 101344 | 2 |
| D | 0 | 151500 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19265 | 430 | 2.232027% |
| B | 19265 | 1758 | 9.125357% |
| C | 19265 | 7210 | 37.425383% |
| D | 19264 | 18606 | 96.584302% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20275 | 19267 | 330 | 330 | 1.63% | 1.71% |  |
| B | 20275 | 19267 | 1107 | 1107 | 5.46% | 5.75% |  |
| C | 20275 | 19266 | 7171 | 7171 | 35.37% | 37.22% |  |
| D | 20274 | 19264 | 17734 | 17734 | 87.47% | 92.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1235135 | 2487.76 | 1992 | 1944 | 495.7 |
| A | 10 | 251 | 436820 | 877.29 | 1992 | 1944 | 495.7 |
| A | 11 | 31 | 243552 | 487.4 | 1992 | 1944 | 495.7 |
| B | 5 | 172 | 3110329 | 7680.07 | 1896 | 1825 | 404.7 |
| B | 10 | 16 | 1424881 | 3515.9 | 1896 | 1825 | 404.7 |
| B | 5 | 185 | 1136603 | 2803.66 | 1896 | 1825 | 404.7 |
| C | 9 | 38 | 17634571 | 38408.24 | 1682 | 1666 | 459.1 |
| C | 13 | 3 | 4042484 | 8801.77 | 1682 | 1666 | 459.1 |
| C | 14 | 254 | 554821 | 1204.89 | 1682 | 1666 | 459.1 |
| D | 12 | 33 | 39058142 | 145044.41 | 941 | 896 | 269.3 |
| D | 2 | 249 | 1807424 | 6708.79 | 941 | 896 | 269.3 |
| D | 3 | 12 | 461170 | 1709.29 | 941 | 896 | 269.3 |

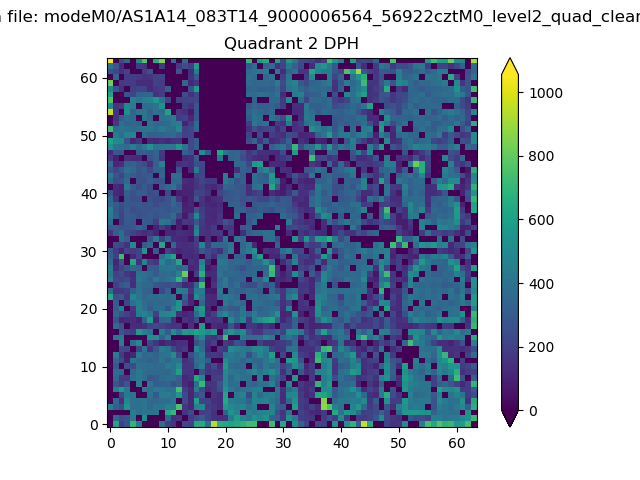

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

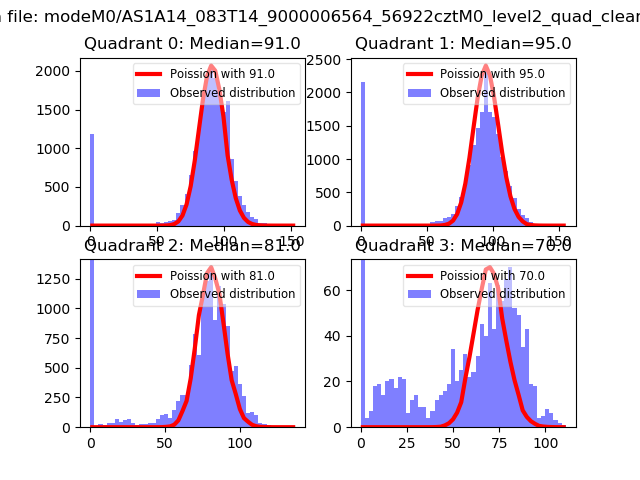

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

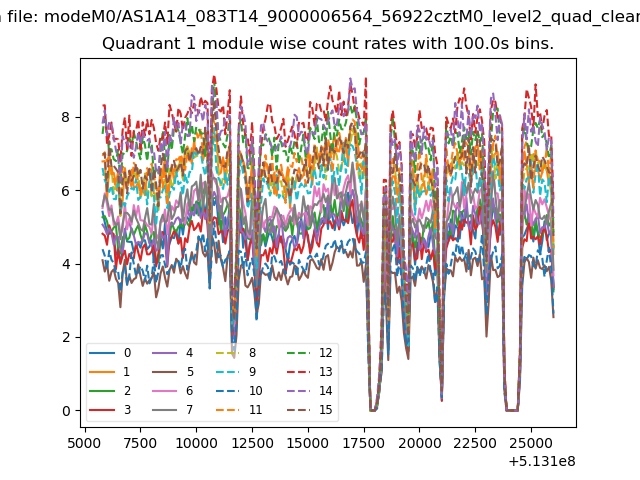

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

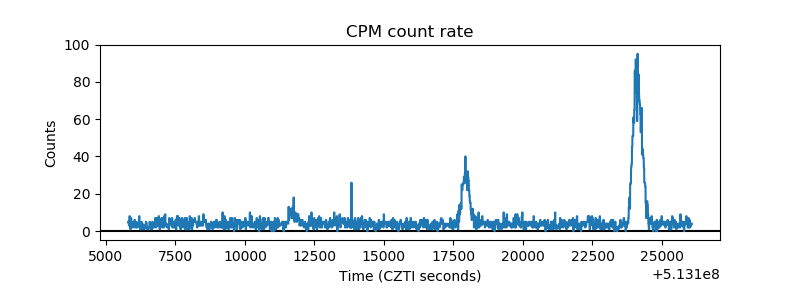

| _CPM_Rate |  |

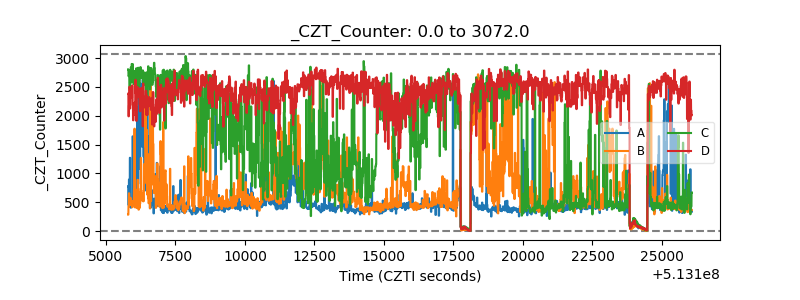

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

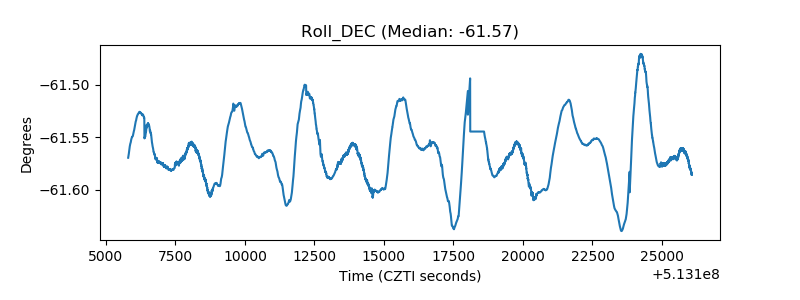

| _Roll_DEC |  |

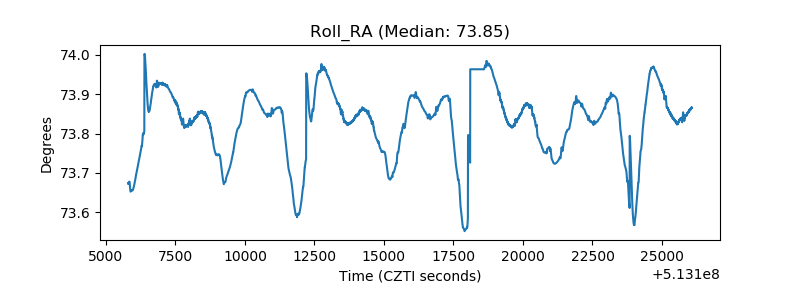

| _Roll_RA |  |
| Veto Counter |  |
