| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T14_9000006564_56930cztM0_level2.fits | modeM0/AS1A14_083T14_9000006564_56930cztM0_level2_quad_clean.evt |
| Size (bytes) | 835,413,120 | 79,410,240 |
| Size | 796.7 MB | 75.7 MB |
| Events in quadrant A | 5,536,444 | 623,797 |
| Events in quadrant B | 5,941,265 | 644,586 |
| Events in quadrant C | 3,243,146 | 639,468 |
| Events in quadrant D | 15,664,821 | 14,689 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21164 | 9 |
| B | 0 | 22400 | 1 |
| C | 0 | 14943 | 1 |
| D | 0 | 51237 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6923 | 607 | 8.767875% |
| B | 6924 | 908 | 13.113807% |
| C | 6924 | 135 | 1.949740% |
| D | 6924 | 6792 | 98.093588% |

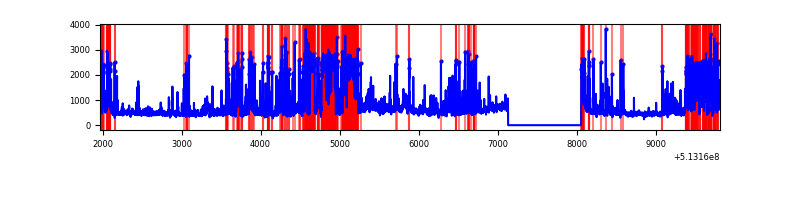

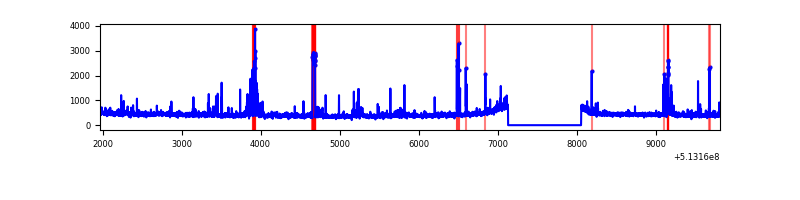

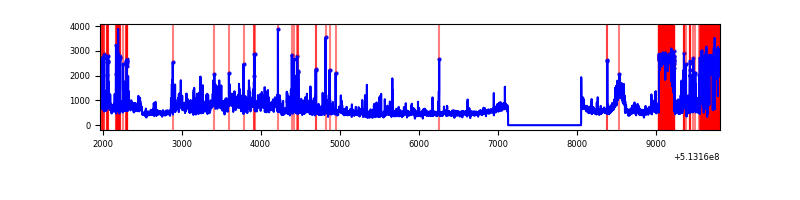

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7848 | 6923 | 457 | 457 | 5.82% | 6.60% |  |
| B | 7849 | 6924 | 668 | 668 | 8.51% | 9.65% |  |
| C | 7849 | 6924 | 60 | 60 | 0.76% | 0.87% |  |
| D | 7848 | 6923 | 5623 | 5623 | 71.65% | 81.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2423843 | 13523.27 | 719 | 699 | 179.2 |
| A | 10 | 251 | 138895 | 771.26 | 719 | 699 | 179.2 |
| A | 3 | 14 | 118389 | 656.81 | 719 | 699 | 179.2 |
| B | 5 | 172 | 2078349 | 13973.48 | 697 | 671 | 148.7 |
| B | 5 | 185 | 675927 | 4541.45 | 697 | 671 | 148.7 |
| B | 10 | 16 | 158424 | 1060.97 | 697 | 671 | 148.7 |
| C | 13 | 3 | 160161 | 802.8 | 722 | 715 | 198.6 |
| C | 1 | 28 | 89371 | 446.37 | 722 | 715 | 198.6 |
| C | 1 | 12 | 52656 | 261.52 | 722 | 715 | 198.6 |
| D | 12 | 33 | 12564607 | 183317.17 | 237 | 226 | 68.5 |
| D | 2 | 249 | 1723325 | 25140.41 | 237 | 226 | 68.5 |
| D | 3 | 12 | 95156 | 1385.05 | 237 | 226 | 68.5 |

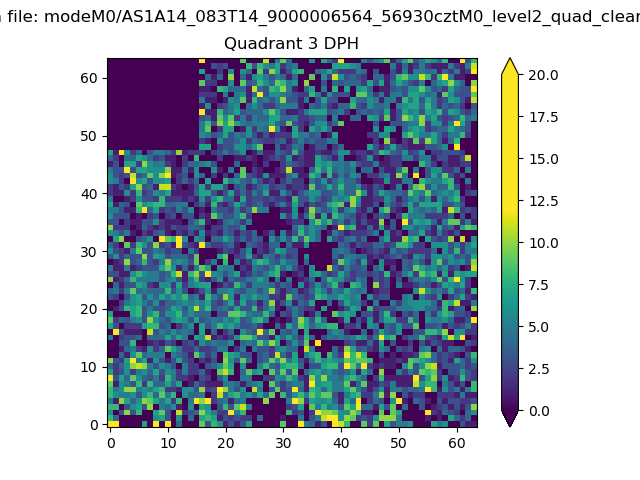

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

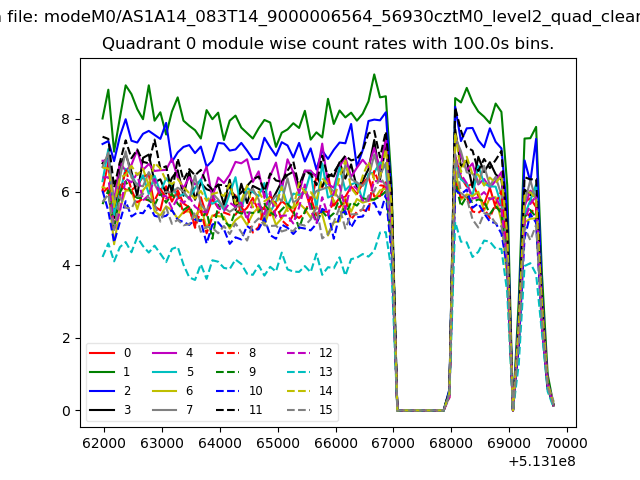

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

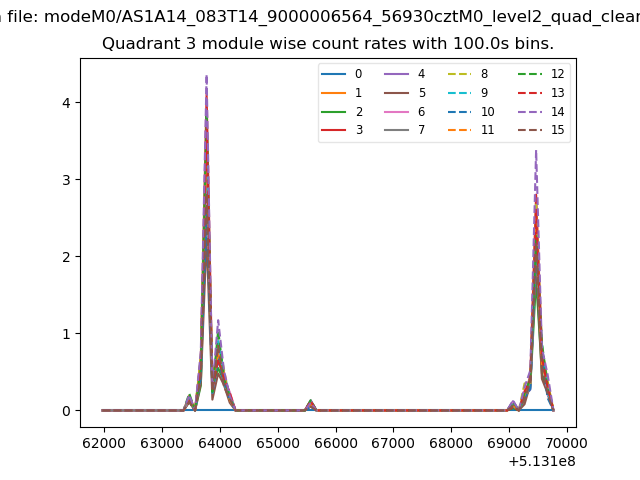

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

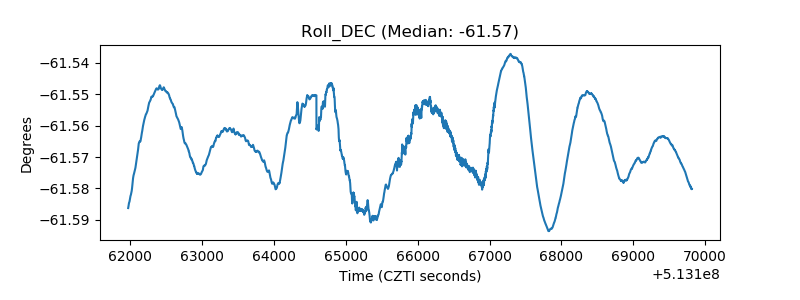

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
