| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T14_9000006564_57043cztM0_level2.fits | modeM0/AS1A14_083T14_9000006564_57043cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,185,920 | 93,035,520 |
| Size | 482.7 MB | 88.7 MB |
| Events in quadrant A | 4,516,522 | 600,913 |
| Events in quadrant B | 5,171,756 | 605,737 |
| Events in quadrant C | 3,599,348 | 606,195 |
| Events in quadrant D | 4,949,099 | 554,791 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17908 | 2 |
| B | 0 | 19827 | 2 |
| C | 0 | 15089 | 2 |
| D | 0 | 19147 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6445 | 527 | 8.176881% |
| B | 6445 | 924 | 14.336695% |
| C | 6445 | 71 | 1.101629% |
| D | 6445 | 231 | 3.584174% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 6446 | 423 | 423 | 5.57% | 6.56% |  |
| B | 7595 | 6446 | 602 | 602 | 7.93% | 9.34% |  |
| C | 7595 | 6446 | 45 | 45 | 0.59% | 0.70% |  |
| D | 7595 | 6446 | 223 | 223 | 2.94% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 13 | 1290368 | 7769.53 | 674 | 658 | 166.0 |
| A | 4 | 249 | 302105 | 1815.99 | 674 | 658 | 166.0 |
| A | 3 | 14 | 157784 | 946.57 | 674 | 658 | 166.0 |
| B | 5 | 185 | 1872396 | 13271.91 | 661 | 637 | 141.0 |
| B | 10 | 16 | 348452 | 2466.22 | 661 | 637 | 141.0 |
| B | 0 | 63 | 164406 | 1161.22 | 661 | 637 | 141.0 |
| C | 1 | 16 | 373108 | 2010.33 | 681 | 675 | 185.3 |
| C | 9 | 38 | 199284 | 1072.06 | 681 | 675 | 185.3 |
| C | 14 | 246 | 172607 | 928.06 | 681 | 675 | 185.3 |
| D | 15 | 142 | 1658849 | 8717.27 | 666 | 635 | 190.2 |
| D | 7 | 96 | 273916 | 1436.64 | 666 | 635 | 190.2 |
| D | 12 | 251 | 131222 | 686.5 | 666 | 635 | 190.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

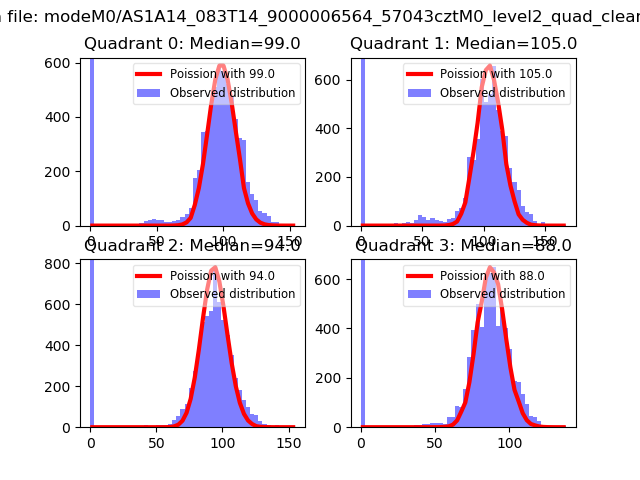

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

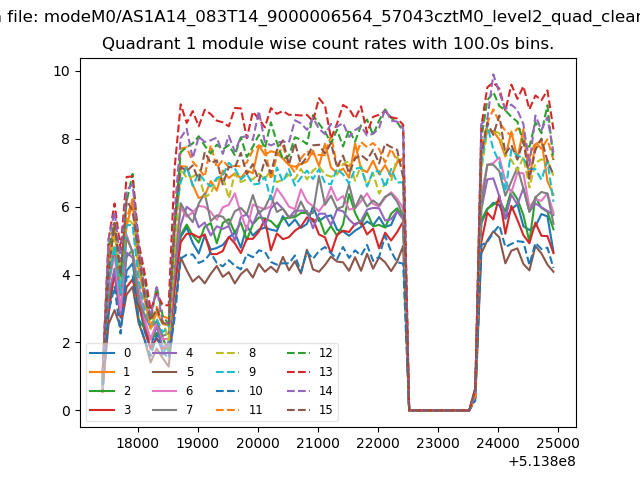

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

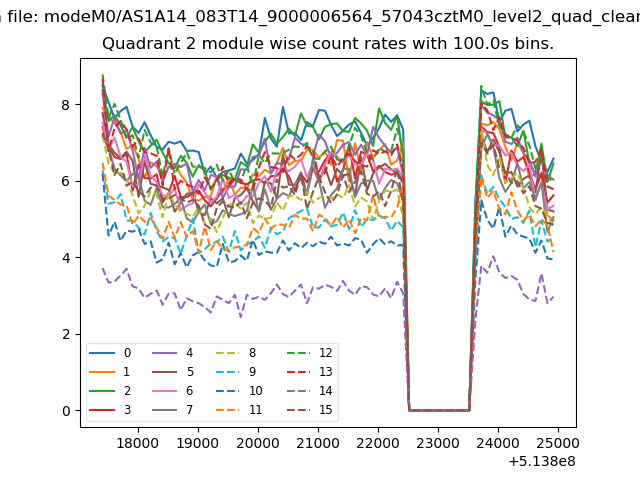

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

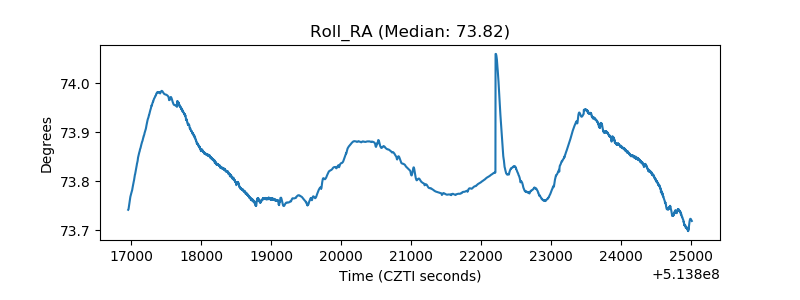

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

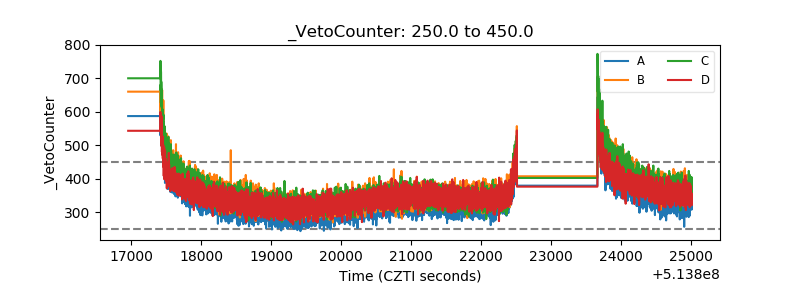

| Veto Counter |  |
