| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T10_9000006566_57077cztM0_level2.fits | modeM0/AS1A14_083T10_9000006566_57077cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,905,600 | 107,403,840 |
| Size | 556.9 MB | 102.4 MB |
| Events in quadrant A | 3,577,439 | 719,938 |
| Events in quadrant B | 5,221,727 | 727,787 |
| Events in quadrant C | 6,340,160 | 661,868 |
| Events in quadrant D | 5,873,220 | 603,885 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16357 | 1 |
| B | 0 | 20994 | 2 |
| C | 0 | 24157 | 1 |
| D | 0 | 22732 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7747 | 299 | 3.859559% |
| B | 7746 | 789 | 10.185902% |
| C | 7746 | 746 | 9.630777% |
| D | 7747 | 845 | 10.907448% |

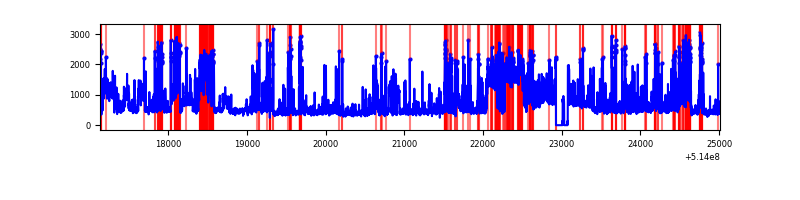

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

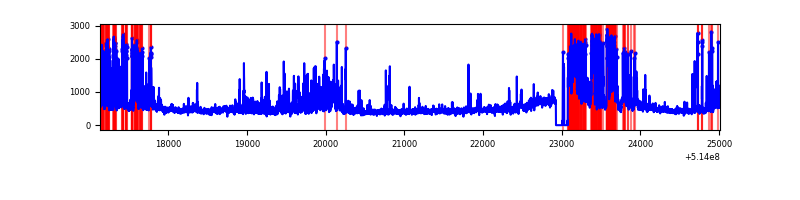

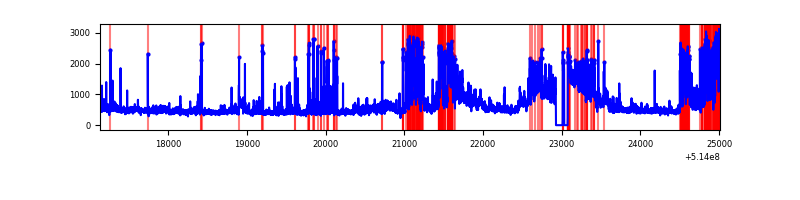

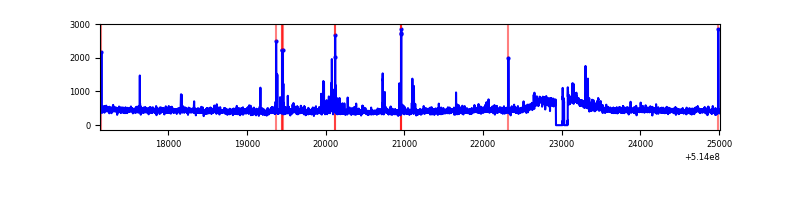

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7877 | 7749 | 12 | 12 | 0.15% | 0.15% |  |
| B | 7876 | 7748 | 347 | 347 | 4.41% | 4.48% |  |
| C | 7876 | 7748 | 417 | 417 | 5.29% | 5.38% |  |
| D | 7877 | 7749 | 441 | 441 | 5.60% | 5.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 93130 | 435.97 | 865 | 839 | 211.7 |
| A | 3 | 14 | 44523 | 206.36 | 865 | 839 | 211.7 |
| A | 4 | 78 | 25315 | 115.62 | 865 | 839 | 211.7 |
| B | 10 | 16 | 1396029 | 8076.55 | 805 | 773 | 172.8 |
| B | 4 | 171 | 379972 | 2195.02 | 805 | 773 | 172.8 |
| B | 0 | 63 | 116098 | 667.57 | 805 | 773 | 172.8 |
| C | 12 | 254 | 1170526 | 5264.12 | 820 | 809 | 222.2 |
| C | 1 | 16 | 1046275 | 4704.95 | 820 | 809 | 222.2 |
| C | 14 | 245 | 304268 | 1365.67 | 820 | 809 | 222.2 |
| D | 12 | 33 | 1346703 | 5959.6 | 808 | 769 | 225.8 |
| D | 15 | 142 | 747893 | 3308.15 | 808 | 769 | 225.8 |
| D | 8 | 240 | 326168 | 1440.82 | 808 | 769 | 225.8 |

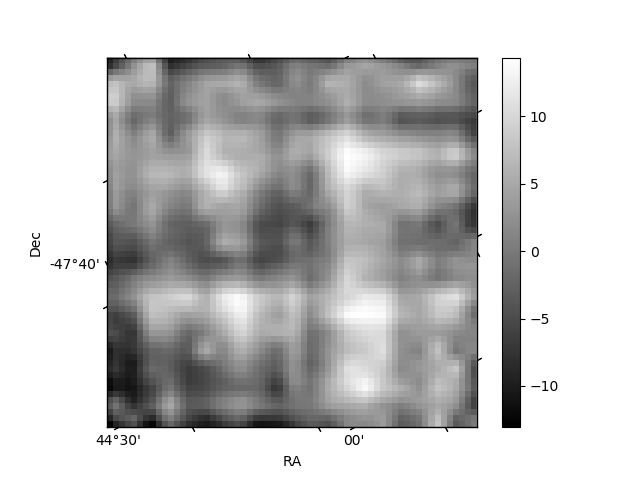

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

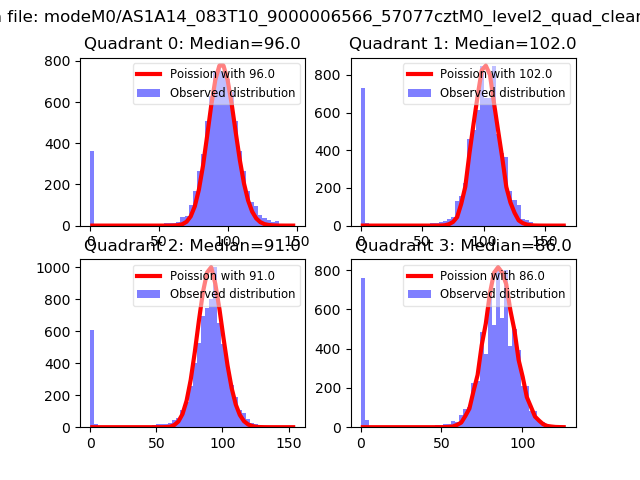

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

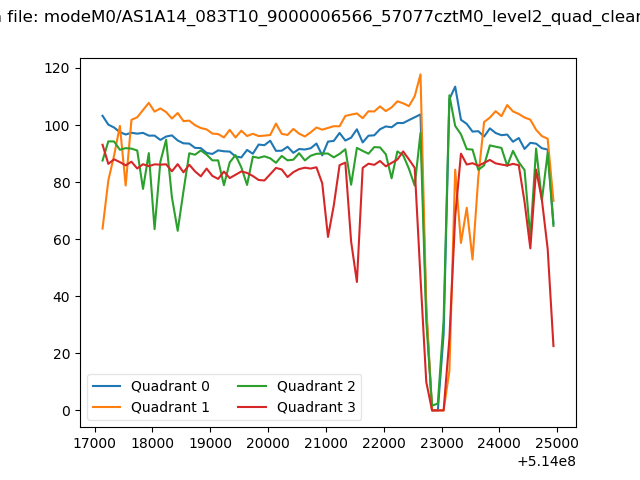

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

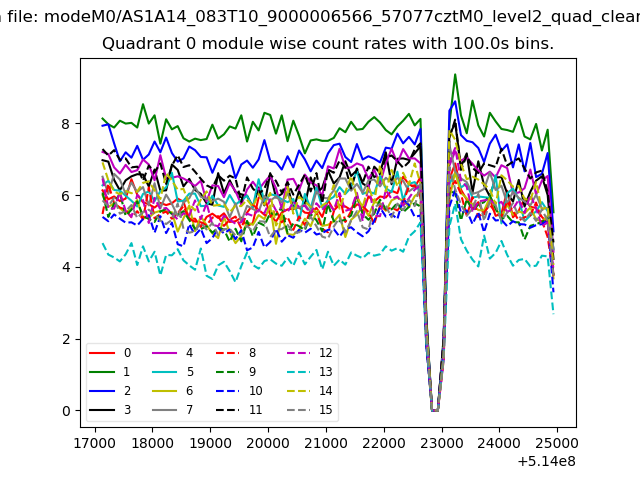

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

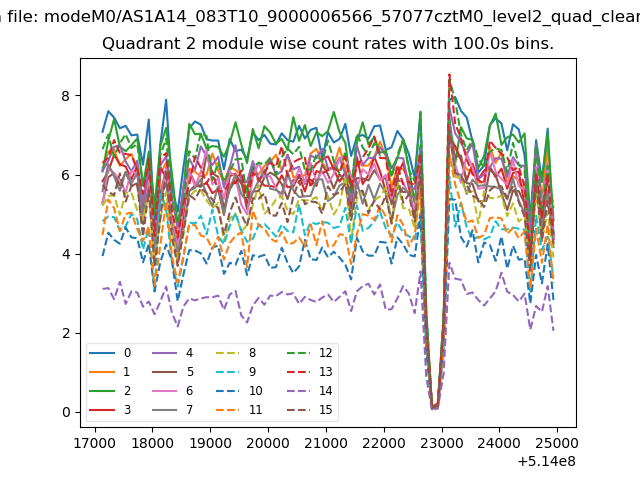

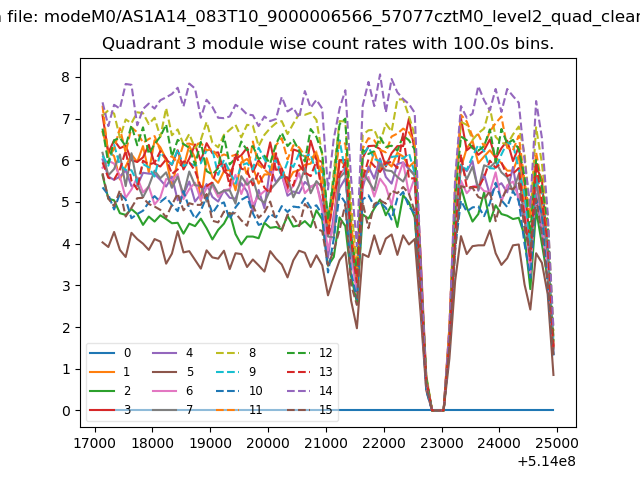

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

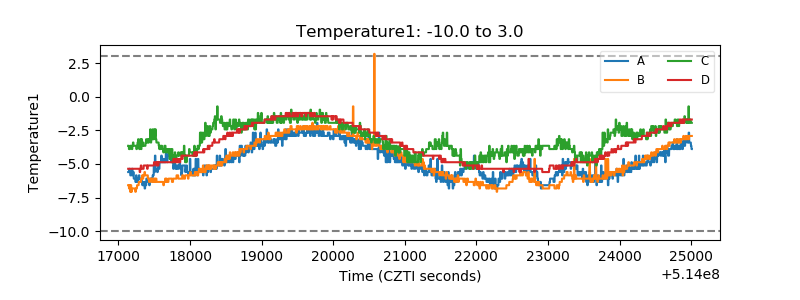

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

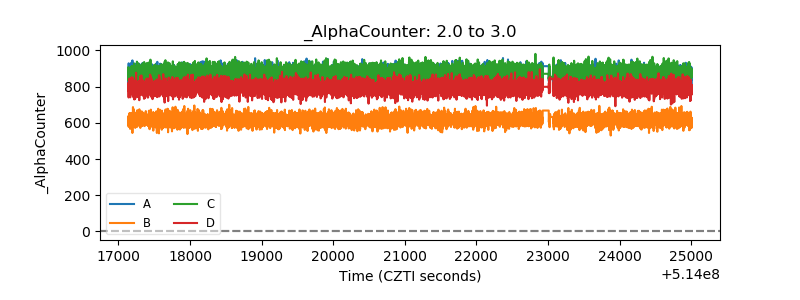

| Alpha Counter |  |

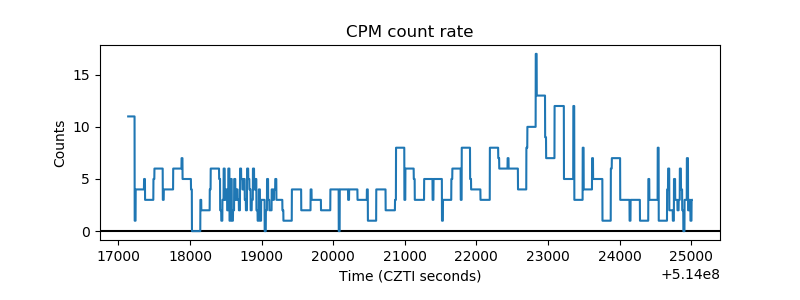

| _CPM_Rate |  |

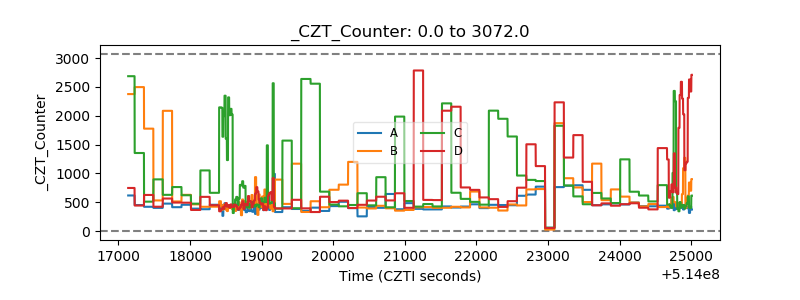

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

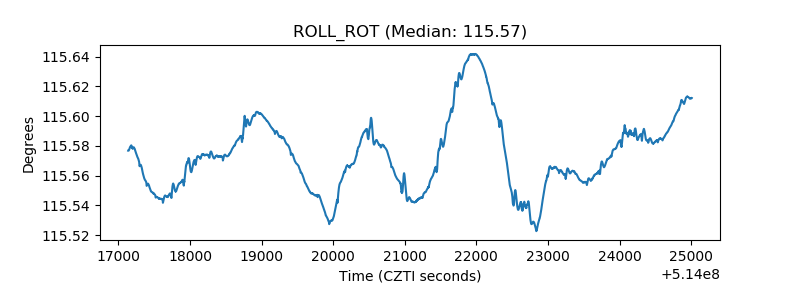

| _ROLL_ROT |  |

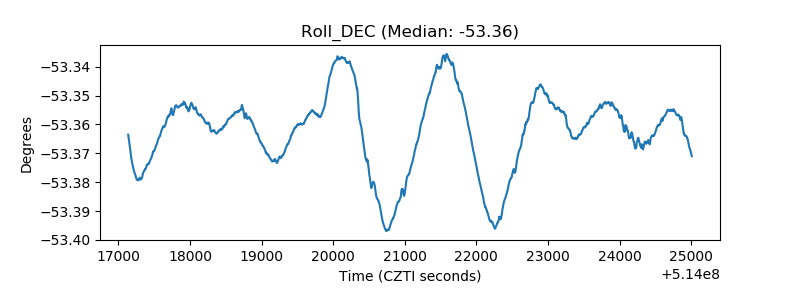

| _Roll_DEC |  |

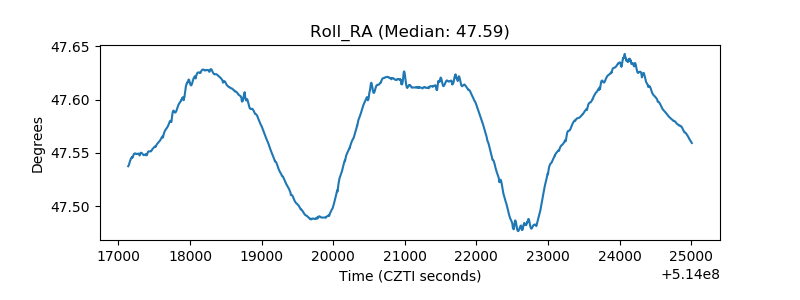

| _Roll_RA |  |

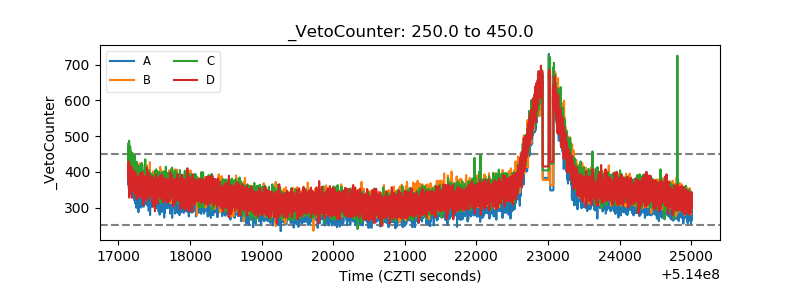

| Veto Counter |  |
