| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T10_9000006566_57145cztM0_level2.fits | modeM0/AS1A14_083T10_9000006566_57145cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,140,160 | 89,023,680 |
| Size | 503.7 MB | 84.9 MB |
| Events in quadrant A | 2,778,486 | 640,104 |
| Events in quadrant B | 5,095,149 | 599,273 |
| Events in quadrant C | 6,175,912 | 462,894 |
| Events in quadrant D | 5,011,158 | 554,805 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12873 | 2 |
| B | 0 | 19530 | 2 |
| C | 0 | 22716 | 2 |
| D | 0 | 19319 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6289 | 14 | 0.222611% |
| B | 6290 | 856 | 13.608903% |
| C | 6290 | 1575 | 25.039746% |
| D | 6289 | 204 | 3.243759% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

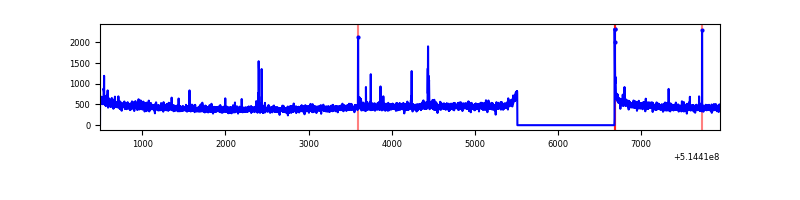

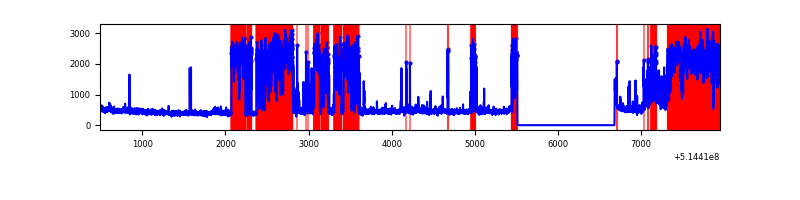

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6290 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7460 | 6291 | 627 | 627 | 8.40% | 9.97% |  |
| C | 7460 | 6291 | 1262 | 1262 | 16.92% | 20.06% |  |
| D | 7459 | 6290 | 199 | 199 | 2.67% | 3.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 47149 | 268.1 | 694 | 677 | 173.3 |
| A | 5 | 113 | 21391 | 119.5 | 694 | 677 | 173.3 |
| A | 10 | 251 | 12074 | 65.75 | 694 | 677 | 173.3 |
| B | 10 | 16 | 2244215 | 16320.55 | 637 | 613 | 137.5 |
| B | 10 | 32 | 77473 | 559.1 | 637 | 613 | 137.5 |
| B | 5 | 185 | 63192 | 455.22 | 637 | 613 | 137.5 |
| C | 15 | 198 | 3205473 | 20214.64 | 575 | 569 | 158.5 |
| C | 9 | 38 | 554057 | 3491.08 | 575 | 569 | 158.5 |
| C | 14 | 67 | 49243 | 307.01 | 575 | 569 | 158.5 |
| D | 15 | 142 | 1047137 | 5614.33 | 653 | 621 | 186.4 |
| D | 12 | 33 | 869950 | 4663.76 | 653 | 621 | 186.4 |
| D | 7 | 96 | 147353 | 787.18 | 653 | 621 | 186.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

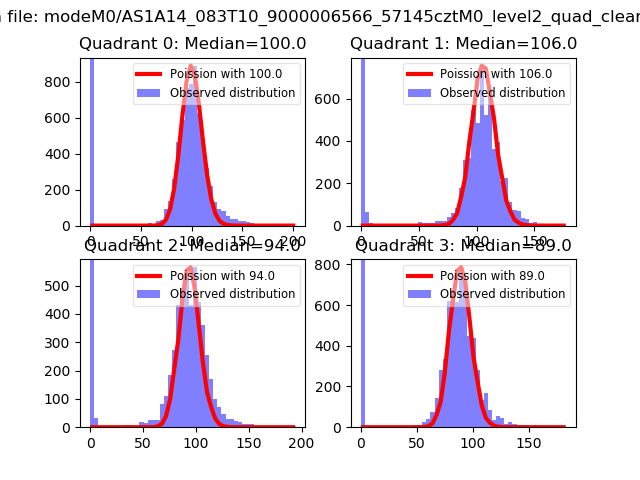

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

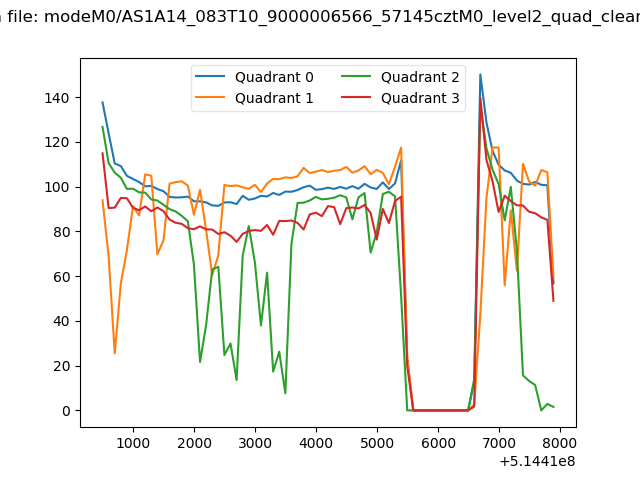

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

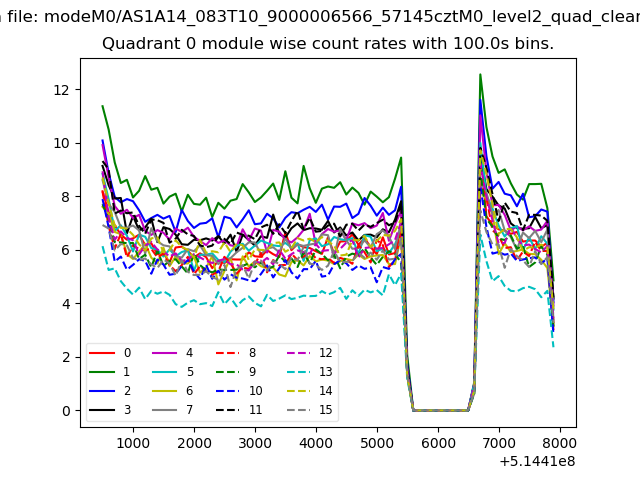

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

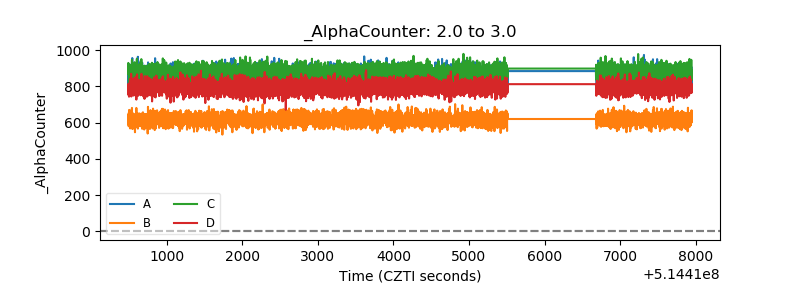

| Alpha Counter |  |

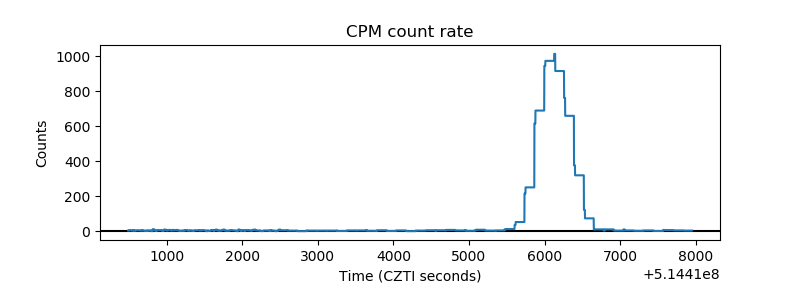

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

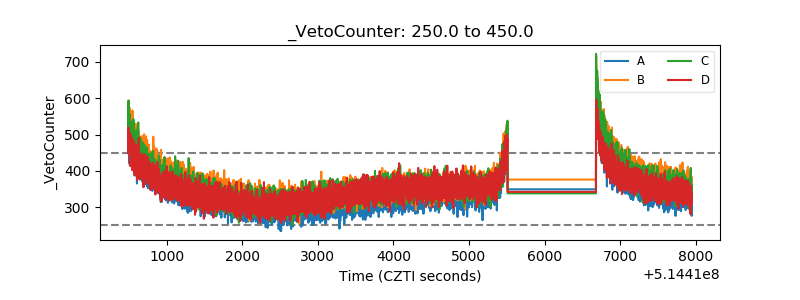

| Veto Counter |  |
