| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57158cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57158cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,535,040 | 81,279,360 |
| Size | 576.5 MB | 77.5 MB |
| Events in quadrant A | 2,655,468 | 605,593 |
| Events in quadrant B | 4,417,426 | 612,708 |
| Events in quadrant C | 10,544,870 | 278,601 |
| Events in quadrant D | 4,278,764 | 531,999 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12619 | 1 |
| B | 0 | 17418 | 1 |
| C | 0 | 35654 | 1 |
| D | 0 | 17059 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 12 | 0.193861% |
| B | 6190 | 374 | 6.042003% |
| C | 6189 | 3473 | 56.115689% |
| D | 6189 | 175 | 2.827597% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7210 | 6191 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7210 | 6191 | 264 | 264 | 3.66% | 4.26% |  |
| C | 7209 | 6190 | 2865 | 2865 | 39.74% | 46.28% |  |
| D | 7209 | 6190 | 175 | 175 | 2.43% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 248 | 57495 | 351.24 | 654 | 638 | 161.9 |
| A | 3 | 14 | 33027 | 200.09 | 654 | 638 | 161.9 |
| A | 10 | 251 | 14618 | 86.36 | 654 | 638 | 161.9 |
| B | 10 | 16 | 700072 | 5141.97 | 633 | 610 | 136.0 |
| B | 5 | 185 | 503499 | 3696.9 | 633 | 610 | 136.0 |
| B | 8 | 128 | 219243 | 1607.24 | 633 | 610 | 136.0 |
| C | 15 | 198 | 8440234 | 69090.96 | 441 | 436 | 122.2 |
| C | 13 | 3 | 273678 | 2236.85 | 441 | 436 | 122.2 |
| C | 9 | 38 | 26323 | 211.92 | 441 | 436 | 122.2 |
| D | 12 | 33 | 947883 | 5355.27 | 620 | 592 | 176.9 |
| D | 2 | 249 | 188808 | 1064.03 | 620 | 592 | 176.9 |
| D | 7 | 96 | 153638 | 865.21 | 620 | 592 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

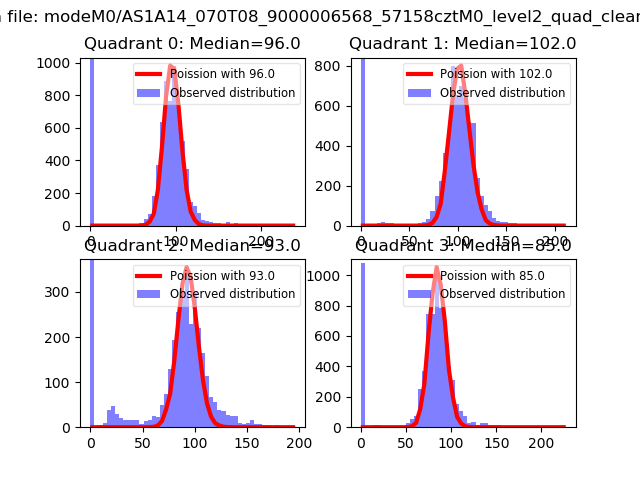

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

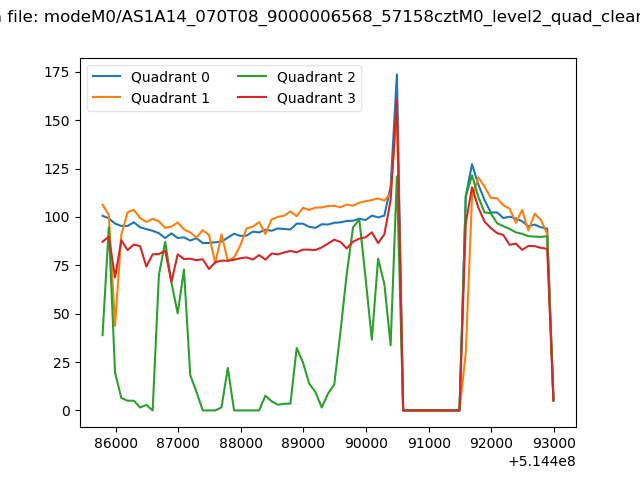

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

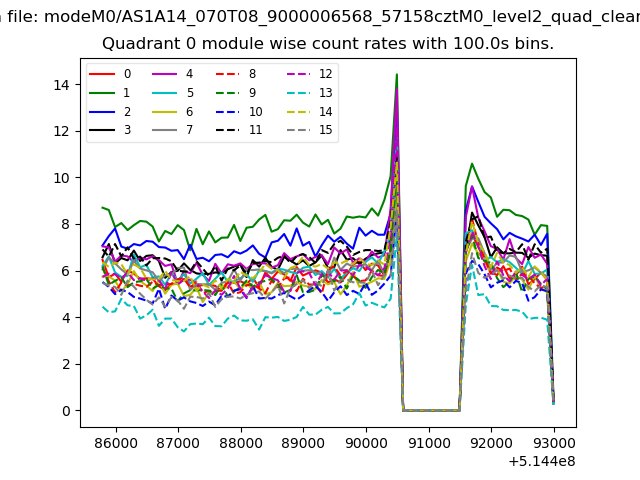

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

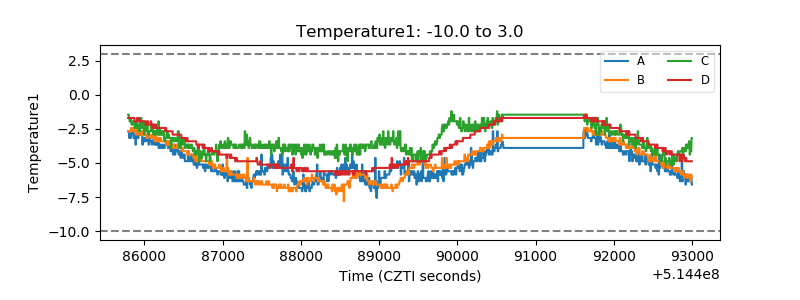

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

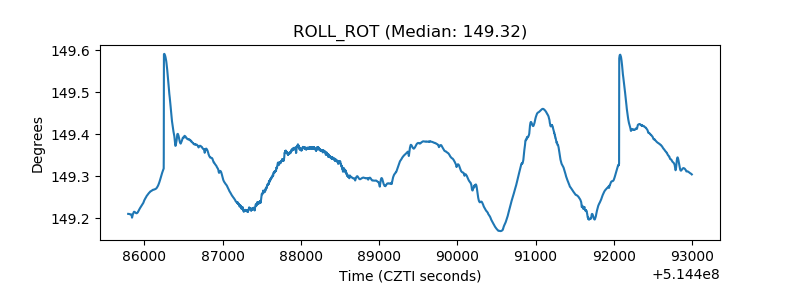

| _ROLL_ROT |  |
| _Roll_DEC |  |

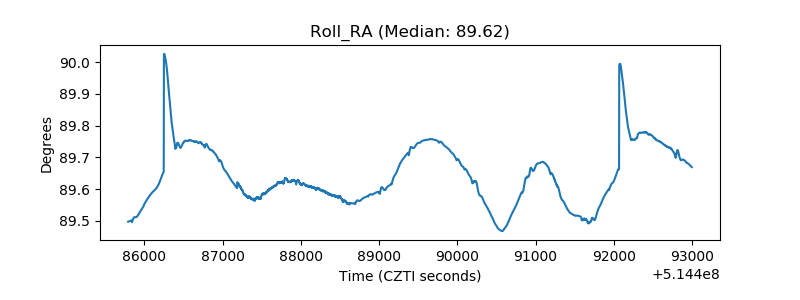

| _Roll_RA |  |

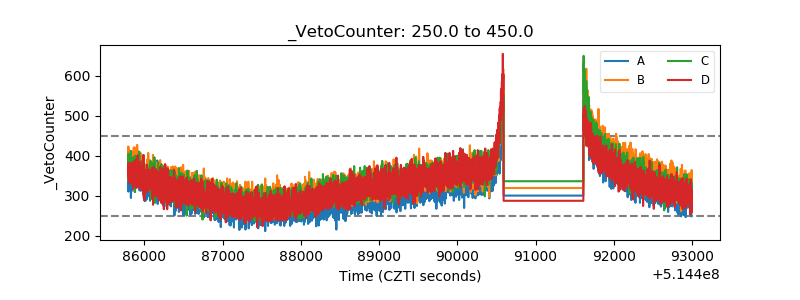

| Veto Counter |  |
