| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57161cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57161cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,118,400 | 92,473,920 |
| Size | 450.2 MB | 88.2 MB |
| Events in quadrant A | 2,803,914 | 632,742 |
| Events in quadrant B | 3,756,664 | 654,509 |
| Events in quadrant C | 4,002,300 | 575,348 |
| Events in quadrant D | 6,416,683 | 492,177 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13138 | 2 |
| B | 0 | 15677 | 2 |
| C | 0 | 16544 | 2 |
| D | 0 | 23556 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6387 | 37 | 0.579302% |
| B | 6387 | 359 | 5.620792% |
| C | 6387 | 330 | 5.166745% |
| D | 6386 | 945 | 14.797996% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6388 | 14 | 14 | 0.19% | 0.22% |  |
| B | 7567 | 6387 | 232 | 232 | 3.07% | 3.63% |  |
| C | 7567 | 6388 | 215 | 215 | 2.84% | 3.37% |  |
| D | 7566 | 6386 | 843 | 843 | 11.14% | 13.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 63249 | 368.01 | 684 | 667 | 170.1 |
| A | 13 | 248 | 31009 | 178.42 | 684 | 667 | 170.1 |
| A | 15 | 16 | 23718 | 135.55 | 684 | 667 | 170.1 |
| B | 10 | 16 | 305386 | 2169.97 | 664 | 640 | 140.4 |
| B | 0 | 152 | 285495 | 2028.34 | 664 | 640 | 140.4 |
| B | 4 | 67 | 165658 | 1175.03 | 664 | 640 | 140.4 |
| C | 15 | 224 | 868805 | 4898.67 | 645 | 637 | 177.2 |
| C | 12 | 252 | 252332 | 1420.2 | 645 | 637 | 177.2 |
| C | 14 | 246 | 158186 | 888.98 | 645 | 637 | 177.2 |
| D | 12 | 33 | 3099691 | 17891.9 | 612 | 582 | 173.2 |
| D | 14 | 49 | 529971 | 3056.29 | 612 | 582 | 173.2 |
| D | 15 | 142 | 84199 | 482.74 | 612 | 582 | 173.2 |

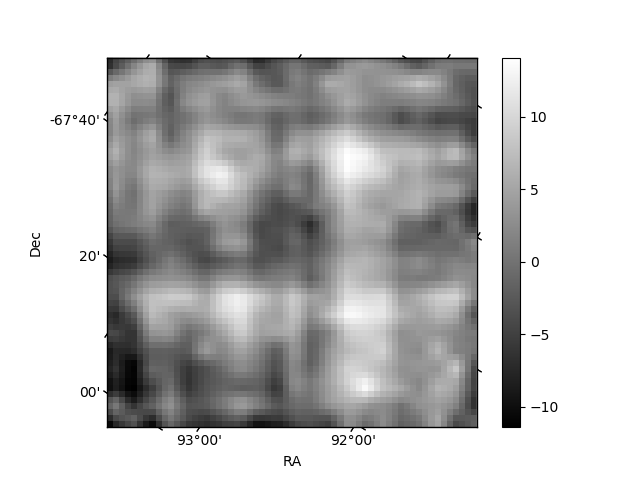

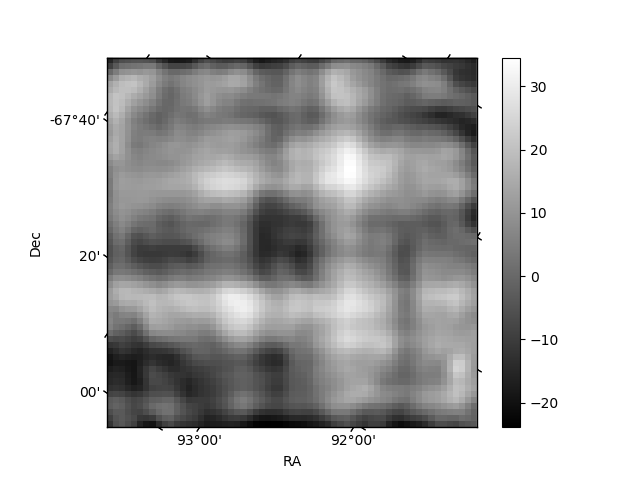

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

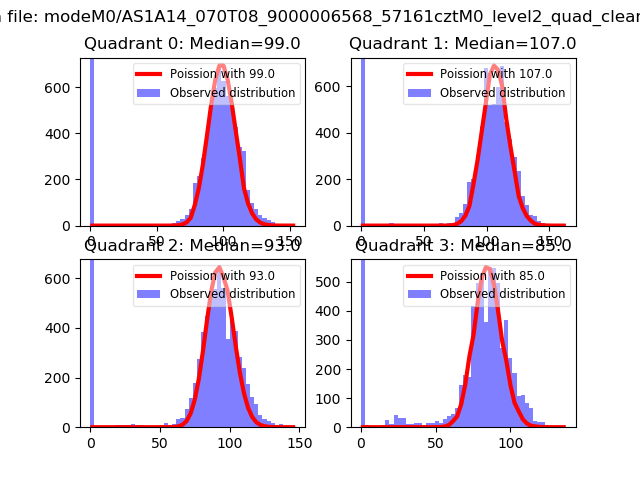

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

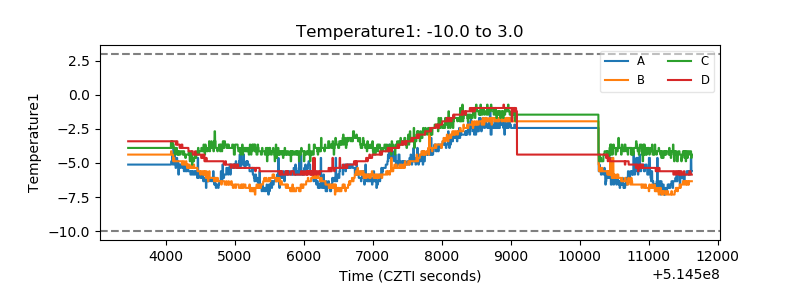

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

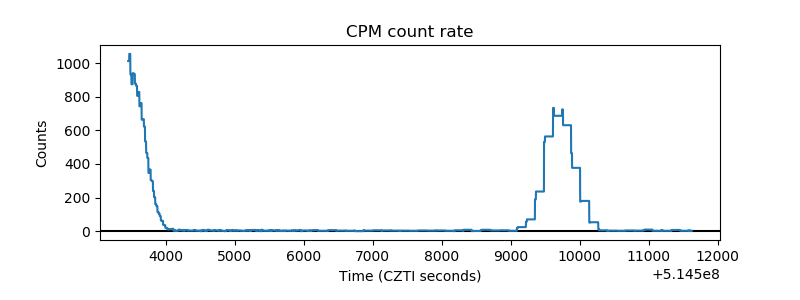

| _CPM_Rate |  |

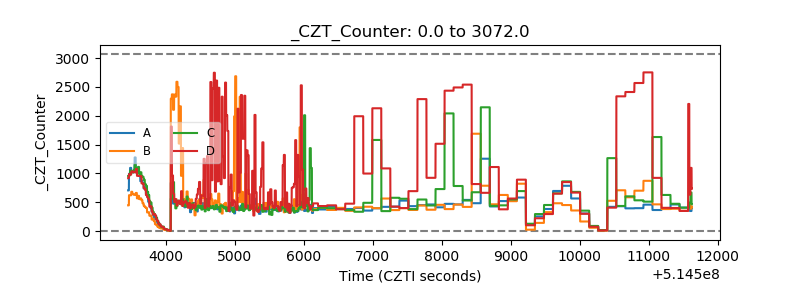

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

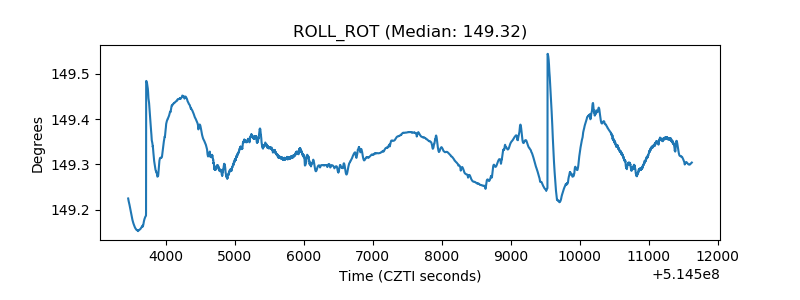

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
