| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57163cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57163cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,798,400 | 98,233,920 |
| Size | 497.6 MB | 93.7 MB |
| Events in quadrant A | 3,069,314 | 666,072 |
| Events in quadrant B | 3,489,856 | 707,451 |
| Events in quadrant C | 6,806,183 | 548,530 |
| Events in quadrant D | 5,404,094 | 563,083 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14733 | 2 |
| B | 0 | 15567 | 2 |
| C | 0 | 25094 | 2 |
| D | 0 | 20966 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7024 | 86 | 1.224374% |
| B | 7024 | 224 | 3.189066% |
| C | 7024 | 1153 | 16.415148% |
| D | 7024 | 474 | 6.748292% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7964 | 7026 | 13 | 13 | 0.16% | 0.19% |  |
| B | 7964 | 7026 | 82 | 82 | 1.03% | 1.17% |  |
| C | 7964 | 7026 | 872 | 872 | 10.95% | 12.41% |  |
| D | 7964 | 7026 | 322 | 322 | 4.04% | 4.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 93887 | 509.25 | 739 | 720 | 182.9 |
| A | 13 | 248 | 31428 | 167.85 | 739 | 720 | 182.9 |
| A | 15 | 16 | 23493 | 124.48 | 739 | 720 | 182.9 |
| B | 4 | 67 | 182137 | 1173.47 | 729 | 703 | 154.6 |
| B | 10 | 16 | 135533 | 872.05 | 729 | 703 | 154.6 |
| B | 0 | 213 | 81266 | 521.06 | 729 | 703 | 154.6 |
| C | 15 | 224 | 3876670 | 21228.12 | 673 | 669 | 182.6 |
| C | 12 | 252 | 80120 | 435.14 | 673 | 669 | 182.6 |
| C | 13 | 3 | 69428 | 376.58 | 673 | 669 | 182.6 |
| D | 12 | 33 | 1722164 | 8611.16 | 701 | 669 | 199.9 |
| D | 2 | 249 | 200670 | 1000.43 | 701 | 669 | 199.9 |
| D | 0 | 19 | 194424 | 969.19 | 701 | 669 | 199.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

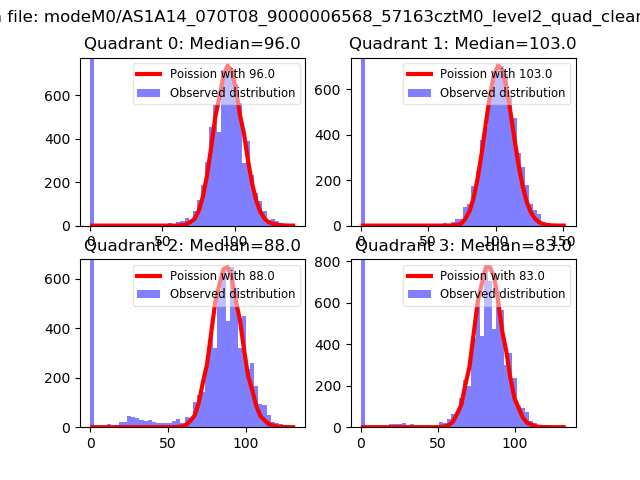

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

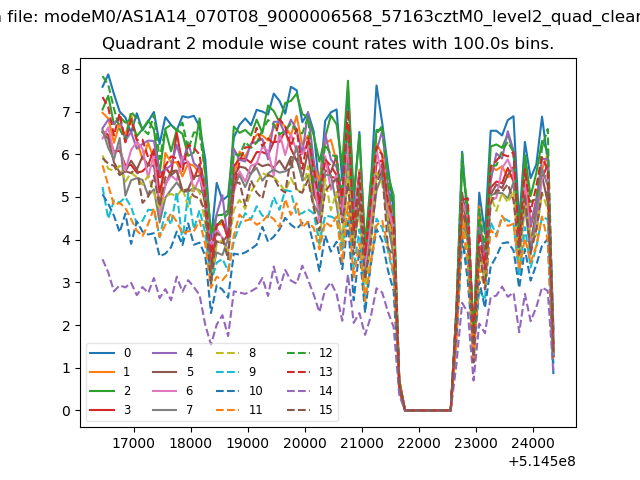

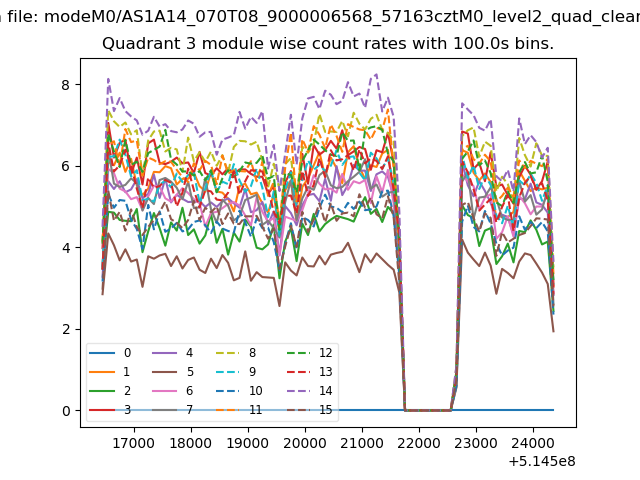

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
