| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57170cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57170cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,014,168,960 | 230,339,520 |
| Size | 967.2 MB | 219.7 MB |
| Events in quadrant A | 7,101,206 | 1,518,845 |
| Events in quadrant B | 8,388,284 | 1,601,723 |
| Events in quadrant C | 11,762,864 | 1,384,110 |
| Events in quadrant D | 9,028,040 | 1,347,428 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 330 | 0 |
| B | 0 | 330 | 0 |
| C | 0 | 330 | 0 |
| D | 0 | 330 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33389 | 4 |
| B | 0 | 36684 | 3 |
| C | 0 | 46599 | 3 |
| D | 0 | 38367 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16267 | 250 | 1.536854% |
| B | 16268 | 521 | 3.202606% |
| C | 16268 | 1078 | 6.626506% |
| D | 16268 | 468 | 2.876813% |

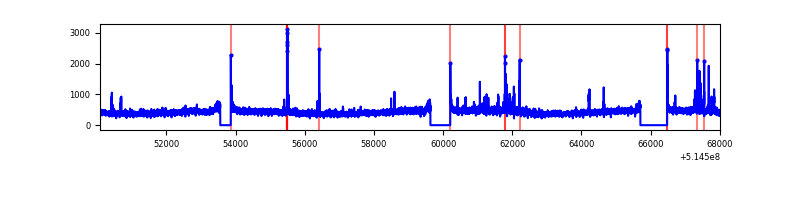

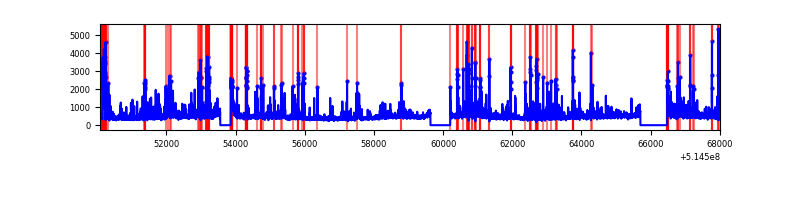

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17922 | 16270 | 15 | 15 | 0.08% | 0.09% |  |
| B | 17923 | 16271 | 156 | 156 | 0.87% | 0.96% |  |
| C | 17923 | 16271 | 729 | 729 | 4.07% | 4.48% |  |
| D | 17923 | 16271 | 246 | 246 | 1.37% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 170447 | 396.41 | 1730 | 1685 | 425.7 |
| A | 13 | 248 | 73046 | 167.62 | 1730 | 1685 | 425.7 |
| A | 0 | 12 | 58030 | 132.35 | 1730 | 1685 | 425.7 |
| B | 2 | 249 | 600538 | 1655.31 | 1699 | 1639 | 361.8 |
| B | 10 | 16 | 413618 | 1138.68 | 1699 | 1639 | 361.8 |
| B | 0 | 213 | 163695 | 447.91 | 1699 | 1639 | 361.8 |
| C | 15 | 224 | 4187382 | 9380.04 | 1641 | 1621 | 446.2 |
| C | 12 | 252 | 368573 | 822.32 | 1641 | 1621 | 446.2 |
| C | 14 | 254 | 242653 | 540.14 | 1641 | 1621 | 446.2 |
| D | 12 | 33 | 592803 | 1277.4 | 1658 | 1584 | 462.8 |
| D | 2 | 249 | 518742 | 1117.38 | 1658 | 1584 | 462.8 |
| D | 8 | 240 | 416782 | 897.09 | 1658 | 1584 | 462.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

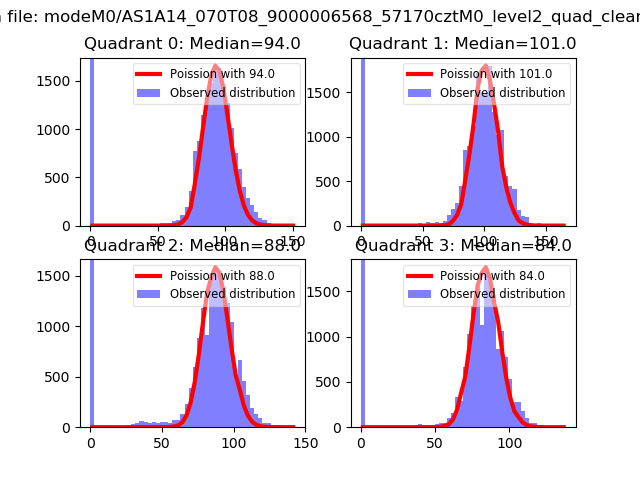

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

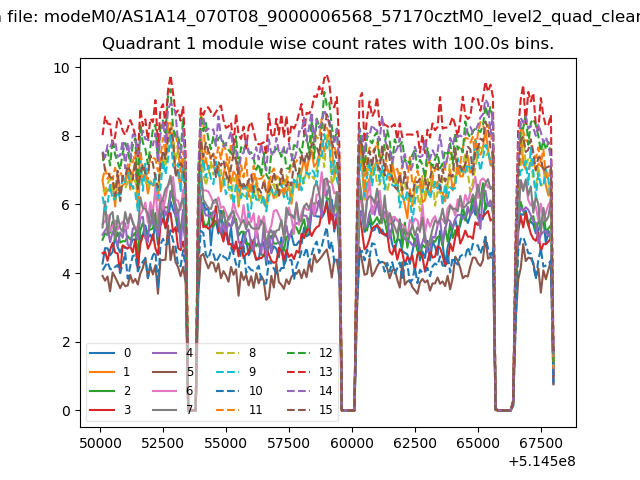

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

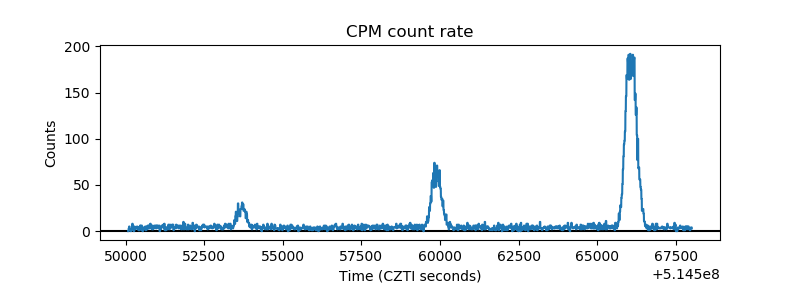

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

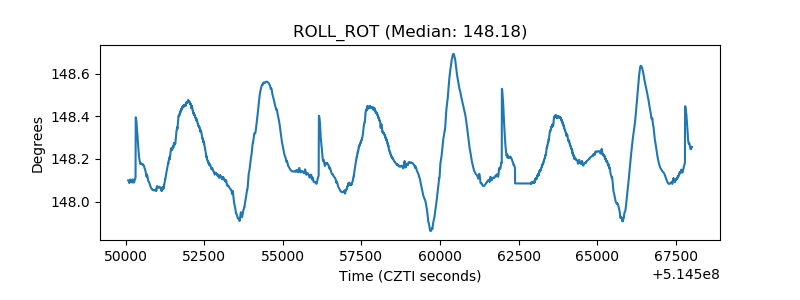

| _ROLL_ROT |  |

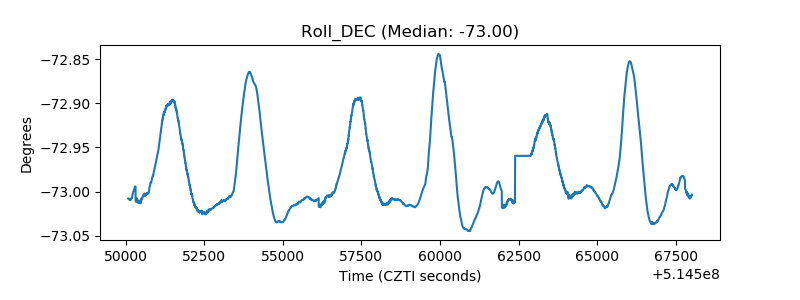

| _Roll_DEC |  |

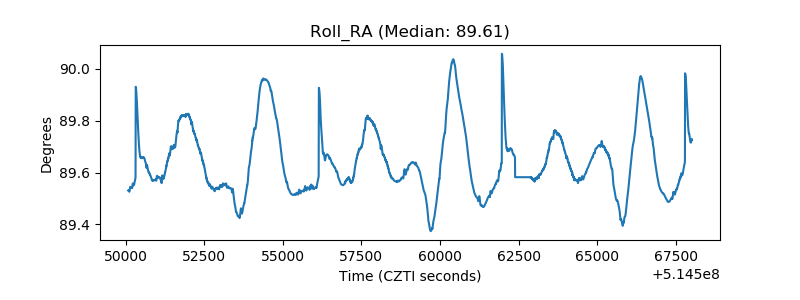

| _Roll_RA |  |
| Veto Counter |  |
