| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57173cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57173cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,545,920 | 93,421,440 |
| Size | 448.7 MB | 89.1 MB |
| Events in quadrant A | 2,885,780 | 636,533 |
| Events in quadrant B | 3,685,425 | 659,938 |
| Events in quadrant C | 5,780,707 | 528,750 |
| Events in quadrant D | 4,560,391 | 550,112 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13451 | 2 |
| B | 0 | 15680 | 2 |
| C | 0 | 21788 | 2 |
| D | 0 | 17687 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6505 | 33 | 0.507302% |
| B | 6505 | 261 | 4.012298% |
| C | 6505 | 952 | 14.634896% |
| D | 6504 | 214 | 3.290283% |

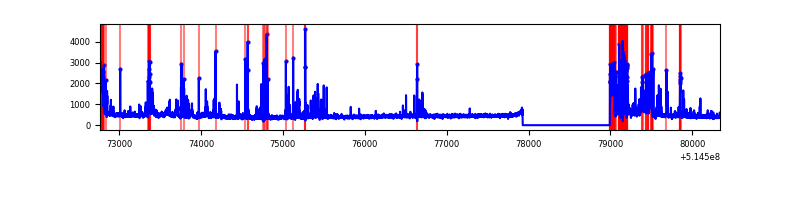

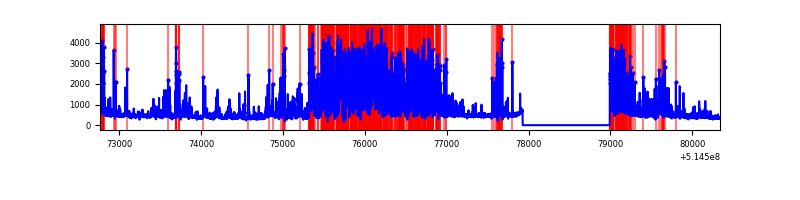

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7570 | 6506 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7570 | 6506 | 172 | 172 | 2.27% | 2.64% |  |
| C | 7570 | 6506 | 724 | 724 | 9.56% | 11.13% |  |
| D | 7569 | 6505 | 214 | 214 | 2.83% | 3.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 85312 | 491.58 | 694 | 679 | 172.2 |
| A | 13 | 248 | 28450 | 161.3 | 694 | 679 | 172.2 |
| A | 6 | 226 | 17878 | 99.9 | 694 | 679 | 172.2 |
| B | 10 | 16 | 662136 | 4607.76 | 671 | 646 | 143.6 |
| B | 2 | 249 | 210813 | 1463.97 | 671 | 646 | 143.6 |
| B | 5 | 185 | 41064 | 281.54 | 671 | 646 | 143.6 |
| C | 15 | 224 | 2970906 | 17423.31 | 620 | 615 | 170.5 |
| C | 15 | 198 | 95693 | 557.71 | 620 | 615 | 170.5 |
| C | 13 | 3 | 72273 | 420.34 | 620 | 615 | 170.5 |
| D | 5 | 113 | 529910 | 2808.88 | 655 | 623 | 188.4 |
| D | 7 | 96 | 524965 | 2782.64 | 655 | 623 | 188.4 |
| D | 12 | 33 | 338006 | 1790.46 | 655 | 623 | 188.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

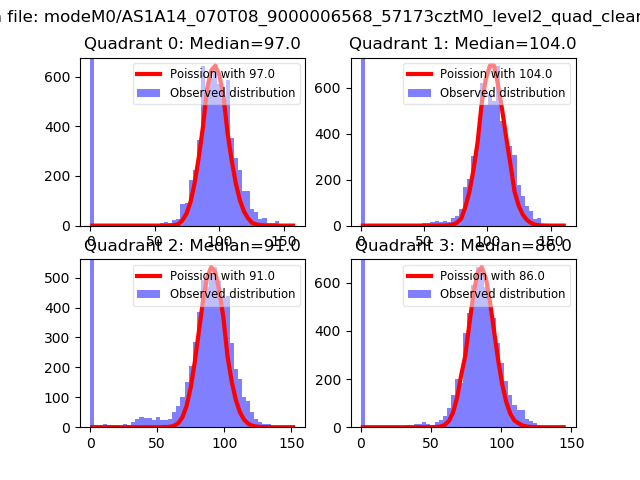

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

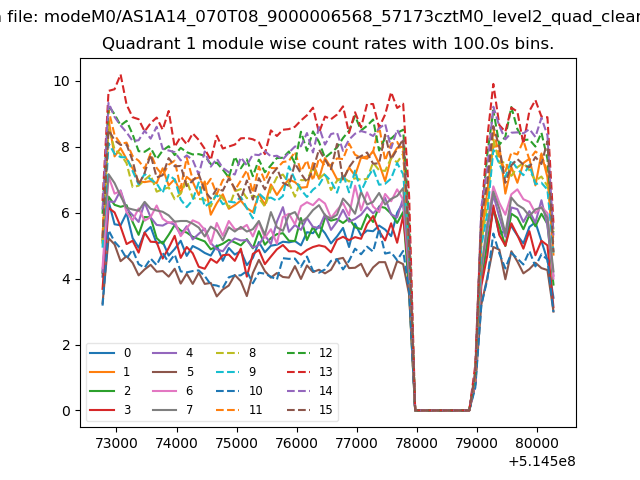

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

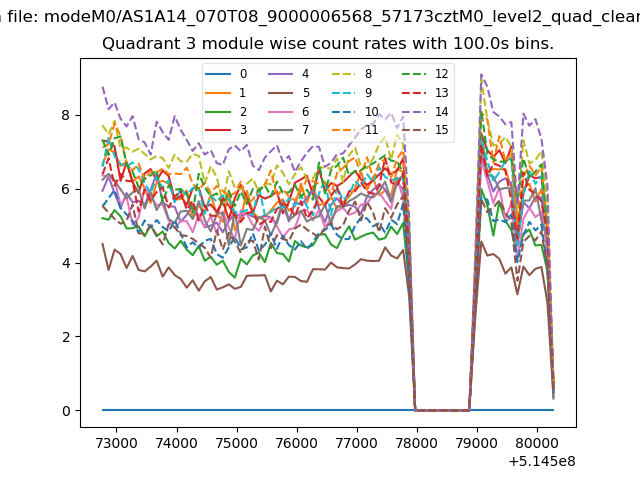

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

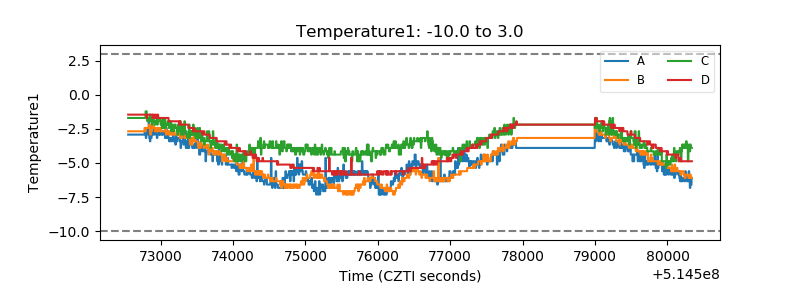

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

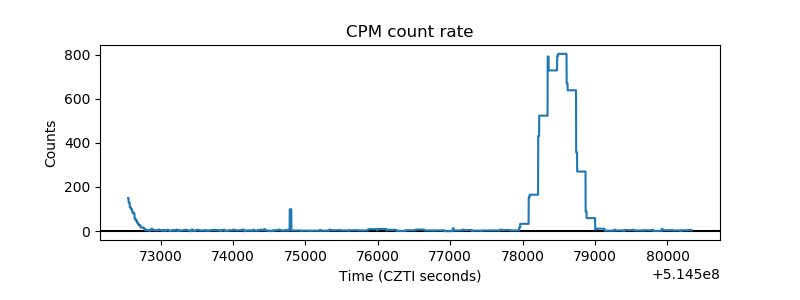

| _CPM_Rate |  |

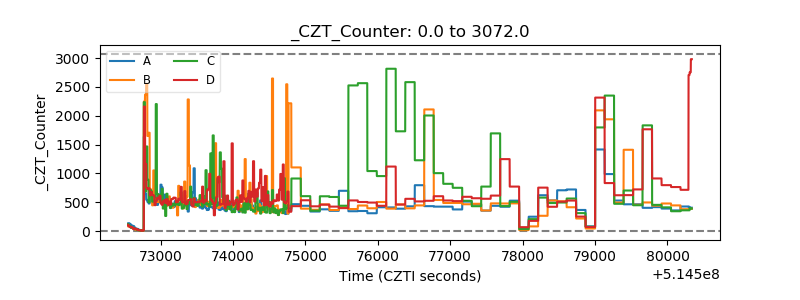

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
