| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57187cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57187cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,680,640 | 83,462,400 |
| Size | 475.6 MB | 79.6 MB |
| Events in quadrant A | 2,729,686 | 587,722 |
| Events in quadrant B | 6,547,836 | 467,889 |
| Events in quadrant C | 4,539,143 | 535,784 |
| Events in quadrant D | 4,166,526 | 507,642 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12903 | 1 |
| B | 0 | 23759 | 1 |
| C | 0 | 17868 | 1 |
| D | 0 | 16803 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6125 | 49 | 0.800000% |
| B | 6126 | 1630 | 26.607901% |
| C | 6126 | 345 | 5.631734% |
| D | 6126 | 286 | 4.668626% |

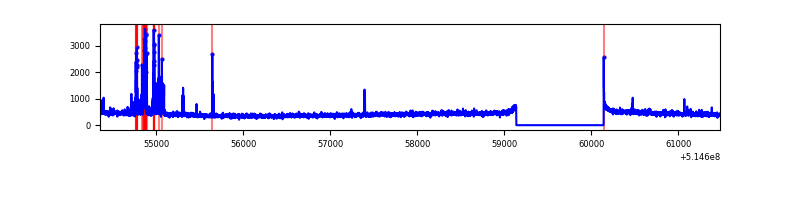

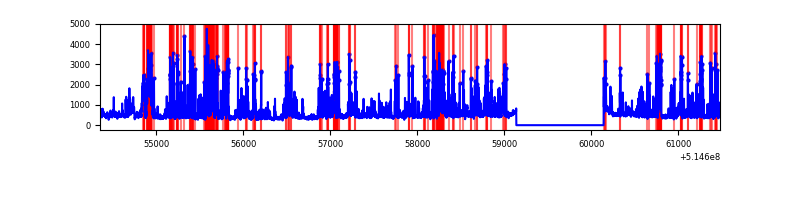

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7130 | 6126 | 30 | 30 | 0.42% | 0.49% |  |
| B | 7131 | 6127 | 1259 | 1259 | 17.66% | 20.55% |  |
| C | 7131 | 6127 | 328 | 328 | 4.60% | 5.35% |  |
| D | 7131 | 6127 | 257 | 257 | 3.60% | 4.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 182747 | 1129.27 | 647 | 630 | 161.3 |
| A | 4 | 13 | 15769 | 93.87 | 647 | 630 | 161.3 |
| A | 4 | 3 | 15135 | 89.94 | 647 | 630 | 161.3 |
| B | 5 | 185 | 2732131 | 22309.56 | 565 | 545 | 122.4 |
| B | 10 | 16 | 1212971 | 9902.19 | 565 | 545 | 122.4 |
| B | 0 | 199 | 110955 | 901.75 | 565 | 545 | 122.4 |
| C | 15 | 224 | 1995252 | 11915.01 | 607 | 602 | 167.4 |
| C | 14 | 254 | 40583 | 238.83 | 607 | 602 | 167.4 |
| C | 12 | 252 | 29508 | 172.67 | 607 | 602 | 167.4 |
| D | 2 | 249 | 693223 | 4021.6 | 607 | 578 | 172.2 |
| D | 15 | 142 | 318887 | 1848.15 | 607 | 578 | 172.2 |
| D | 8 | 240 | 301082 | 1744.77 | 607 | 578 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

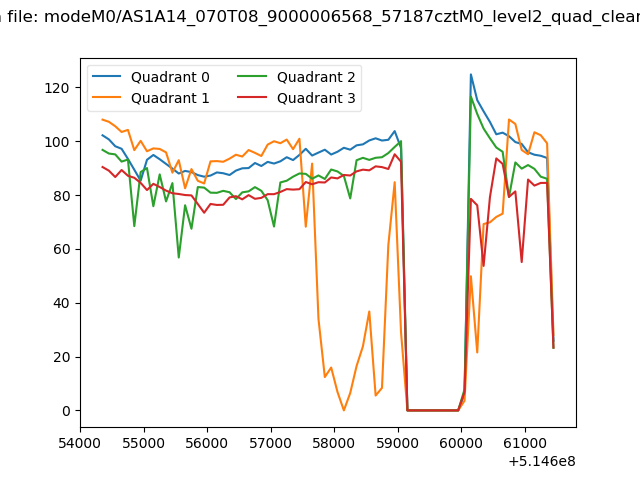

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

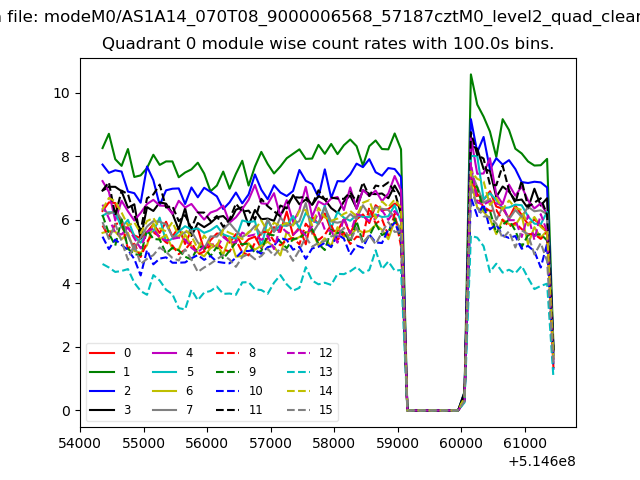

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

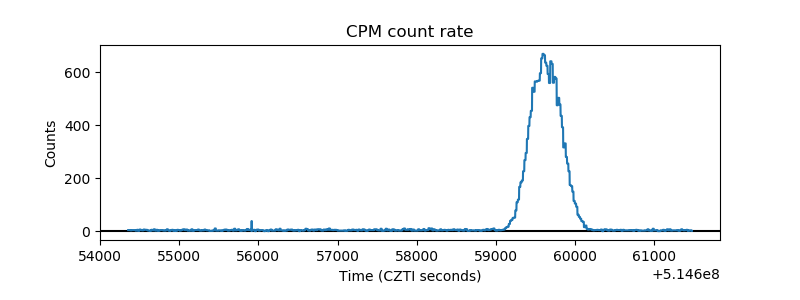

| _CPM_Rate |  |

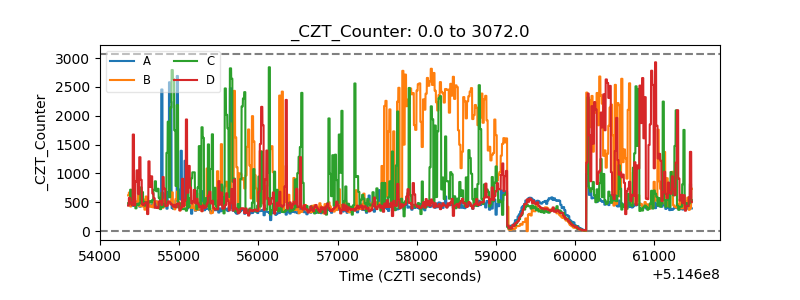

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

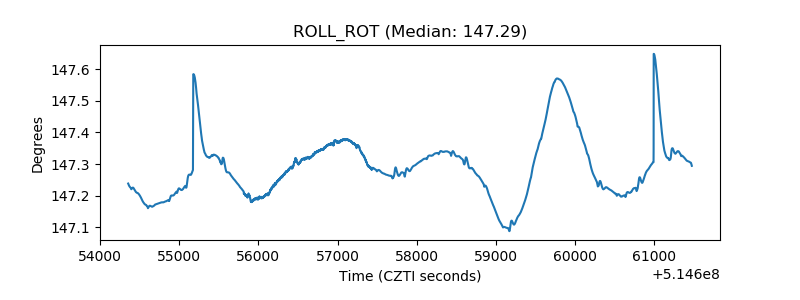

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
