| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57206cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57206cztM0_level2_quad_clean.evt |
| Size (bytes) | 595,146,240 | 83,122,560 |
| Size | 567.6 MB | 79.3 MB |
| Events in quadrant A | 2,787,795 | 582,583 |
| Events in quadrant B | 3,488,413 | 635,875 |
| Events in quadrant C | 5,287,670 | 513,042 |
| Events in quadrant D | 9,952,545 | 324,640 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13463 | 2 |
| B | 0 | 14931 | 2 |
| C | 0 | 20511 | 2 |
| D | 0 | 34214 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6612 | 28 | 0.423472% |
| B | 6612 | 142 | 2.147610% |
| C | 6612 | 560 | 8.469449% |
| D | 6612 | 2803 | 42.392619% |

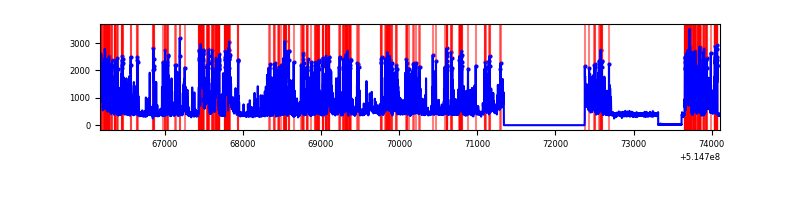

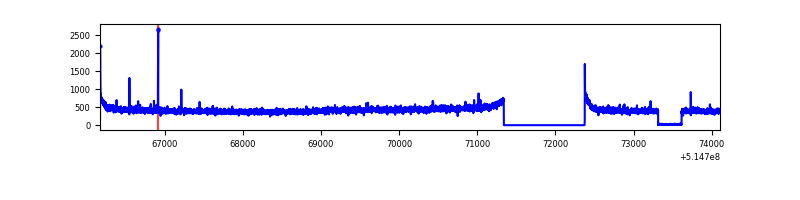

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7930 | 6896 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7930 | 6896 | 52 | 52 | 0.66% | 0.75% |  |
| C | 7930 | 6896 | 488 | 488 | 6.15% | 7.08% |  |
| D | 7930 | 6896 | 2690 | 2690 | 33.92% | 39.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 13218 | 71.26 | 709 | 690 | 175.8 |
| A | 13 | 254 | 10236 | 54.3 | 709 | 690 | 175.8 |
| A | 3 | 137 | 8578 | 44.87 | 709 | 690 | 175.8 |
| B | 5 | 185 | 330542 | 2188.96 | 702 | 676 | 150.7 |
| B | 0 | 199 | 83606 | 550.32 | 702 | 676 | 150.7 |
| B | 10 | 16 | 72397 | 475.93 | 702 | 676 | 150.7 |
| C | 15 | 224 | 2528732 | 14018.59 | 664 | 659 | 180.3 |
| C | 12 | 252 | 79080 | 434.86 | 664 | 659 | 180.3 |
| C | 14 | 246 | 46765 | 255.67 | 664 | 659 | 180.3 |
| D | 12 | 33 | 6833965 | 47772.88 | 498 | 474 | 143.0 |
| D | 2 | 249 | 389573 | 2720.19 | 498 | 474 | 143.0 |
| D | 8 | 240 | 217227 | 1515.32 | 498 | 474 | 143.0 |

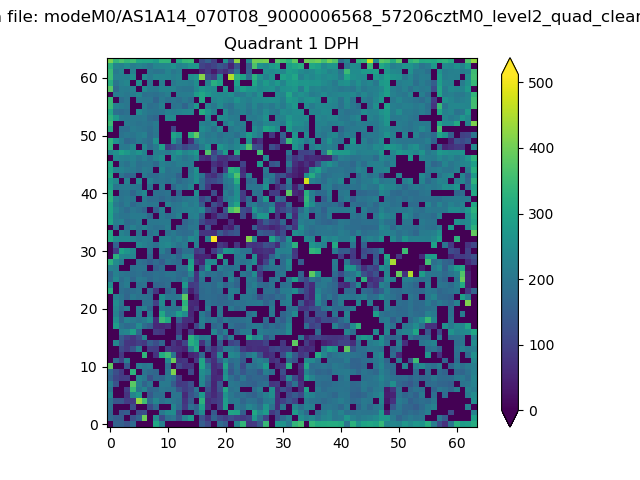

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

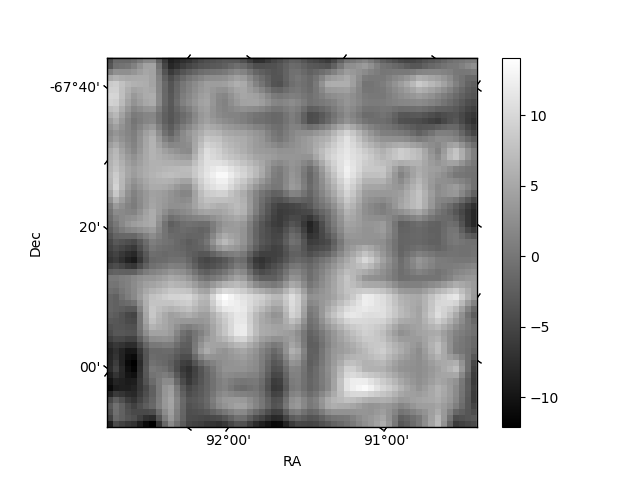

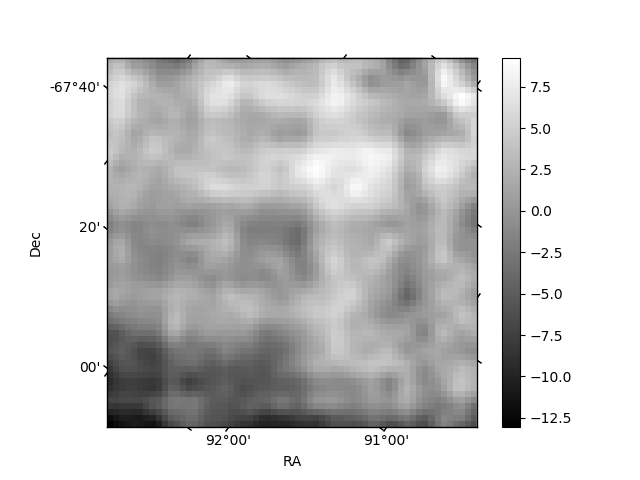

| Plot type | Count rate plots | Images |
|---|---|---|

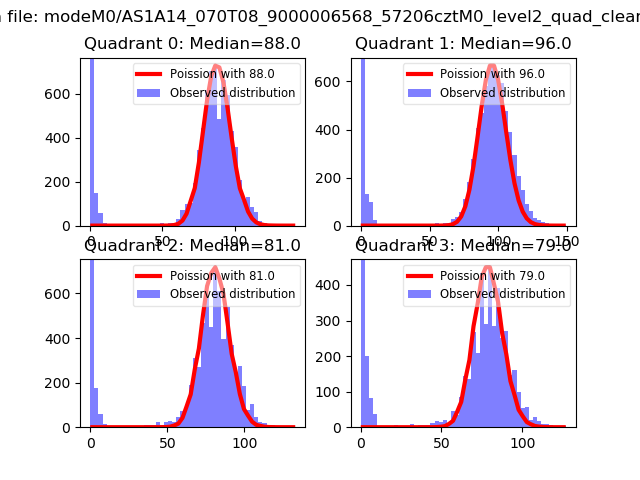

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

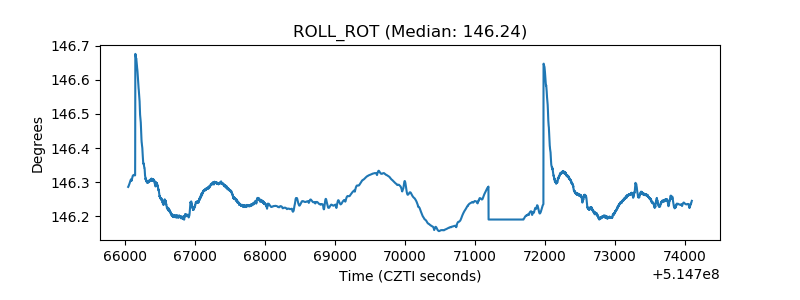

| _ROLL_ROT |  |

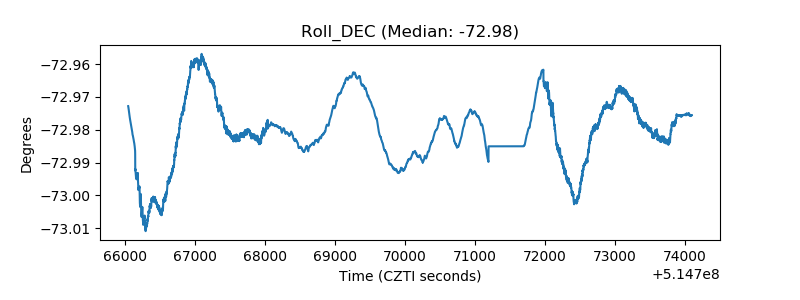

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
