| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57218cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57218cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,616,960 | 83,750,400 |
| Size | 471.7 MB | 79.9 MB |
| Events in quadrant A | 2,721,271 | 575,914 |
| Events in quadrant B | 3,439,385 | 618,435 |
| Events in quadrant C | 6,828,385 | 468,586 |
| Events in quadrant D | 4,834,546 | 436,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12838 | 1 |
| B | 0 | 14668 | 1 |
| C | 0 | 24743 | 1 |
| D | 0 | 18825 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6246 | 50 | 0.800512% |
| B | 6246 | 165 | 2.641691% |
| C | 6246 | 1217 | 19.484470% |
| D | 6246 | 408 | 6.532181% |

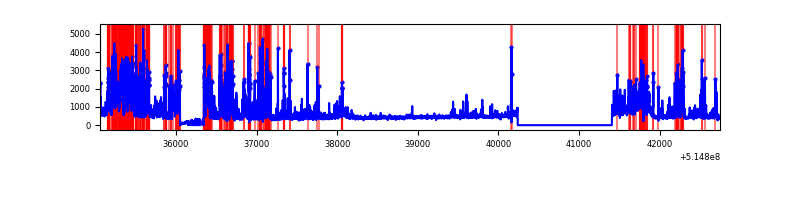

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7690 | 6520 | 32 | 32 | 0.42% | 0.49% |  |
| B | 7690 | 6519 | 89 | 89 | 1.16% | 1.37% |  |
| C | 7690 | 6520 | 914 | 914 | 11.89% | 14.02% |  |
| D | 7690 | 6476 | 406 | 406 | 5.28% | 6.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 96432 | 579.43 | 673 | 657 | 165.3 |
| A | 13 | 254 | 9154 | 51.41 | 673 | 657 | 165.3 |
| A | 3 | 137 | 8027 | 44.59 | 673 | 657 | 165.3 |
| B | 0 | 213 | 270918 | 1905.35 | 664 | 641 | 141.9 |
| B | 10 | 16 | 136337 | 956.6 | 664 | 641 | 141.9 |
| B | 10 | 247 | 103628 | 726.02 | 664 | 641 | 141.9 |
| C | 15 | 224 | 4081772 | 25063.17 | 590 | 584 | 162.8 |
| C | 12 | 254 | 196252 | 1201.63 | 590 | 584 | 162.8 |
| C | 15 | 216 | 142846 | 873.65 | 590 | 584 | 162.8 |
| D | 12 | 33 | 1199358 | 6600.76 | 627 | 595 | 181.6 |
| D | 8 | 240 | 466857 | 2567.38 | 627 | 595 | 181.6 |
| D | 2 | 120 | 239050 | 1313.01 | 627 | 595 | 181.6 |

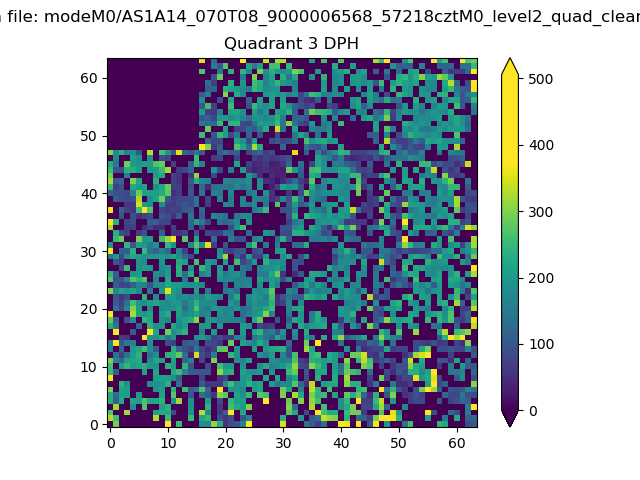

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

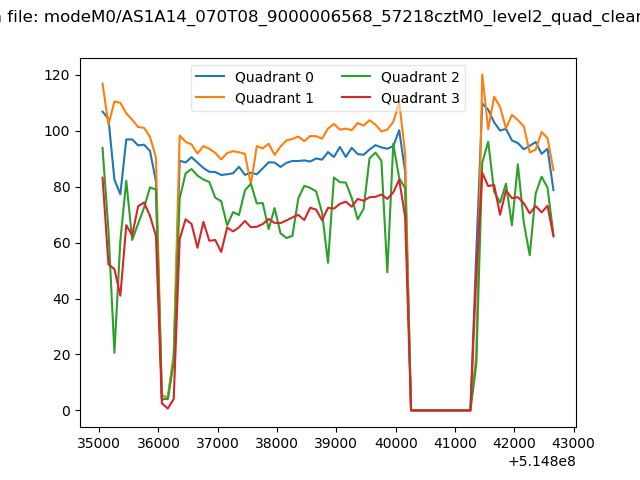

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

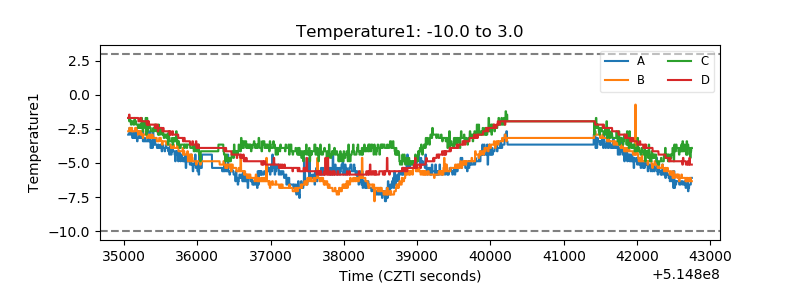

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

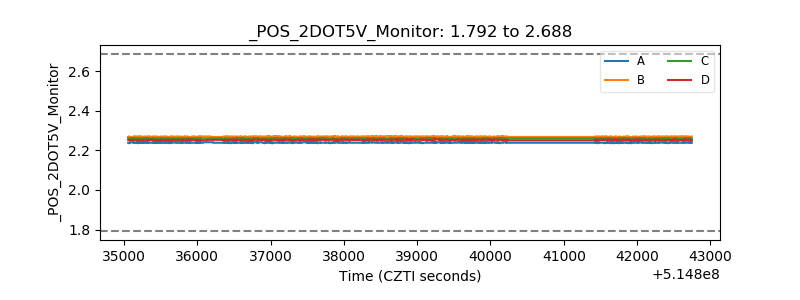

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

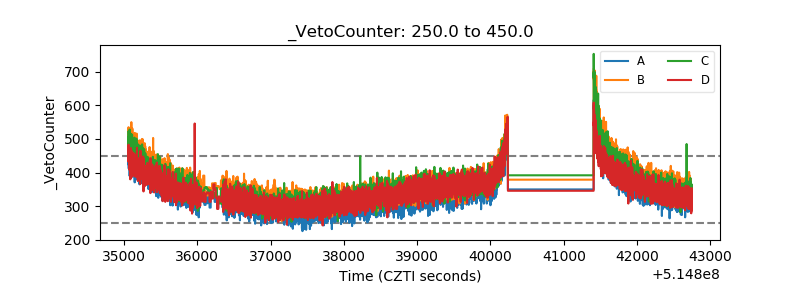

| Veto Counter |  |
