| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57245cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57245cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,197,440 | 85,910,400 |
| Size | 439.8 MB | 81.9 MB |
| Events in quadrant A | 5,972,583 | 513,080 |
| Events in quadrant B | 2,895,832 | 621,605 |
| Events in quadrant C | 4,922,895 | 514,373 |
| Events in quadrant D | 2,804,662 | 524,484 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21866 | 1 |
| B | 0 | 13176 | 1 |
| C | 0 | 19011 | 3 |
| D | 0 | 12947 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6121 | 899 | 14.687143% |
| B | 6122 | 92 | 1.502777% |
| C | 6121 | 558 | 9.116157% |
| D | 6121 | 45 | 0.735174% |

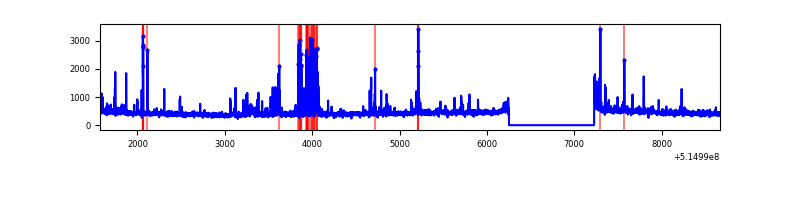

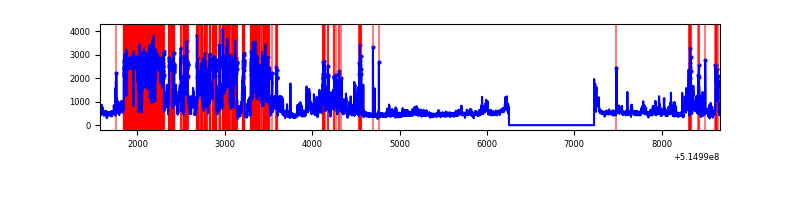

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7096 | 6121 | 833 | 833 | 11.74% | 13.61% |  |
| B | 7097 | 6122 | 37 | 37 | 0.52% | 0.60% |  |
| C | 7096 | 6122 | 448 | 448 | 6.31% | 7.32% |  |
| D | 7096 | 6121 | 14 | 14 | 0.20% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 3521611 | 23425.51 | 609 | 592 | 150.3 |
| A | 4 | 13 | 61573 | 405.71 | 609 | 592 | 150.3 |
| A | 8 | 249 | 10946 | 68.89 | 609 | 592 | 150.3 |
| B | 4 | 201 | 149397 | 1088.48 | 634 | 611 | 136.7 |
| B | 10 | 247 | 57096 | 413.23 | 634 | 611 | 136.7 |
| B | 5 | 185 | 42525 | 306.63 | 634 | 611 | 136.7 |
| C | 15 | 224 | 1673896 | 10221.76 | 596 | 591 | 163.7 |
| C | 12 | 254 | 429341 | 2619.12 | 596 | 591 | 163.7 |
| C | 9 | 38 | 353896 | 2158.24 | 596 | 591 | 163.7 |
| D | 9 | 1 | 111890 | 633.62 | 619 | 589 | 175.7 |
| D | 5 | 173 | 55833 | 314.5 | 619 | 589 | 175.7 |
| D | 2 | 233 | 40818 | 229.02 | 619 | 589 | 175.7 |

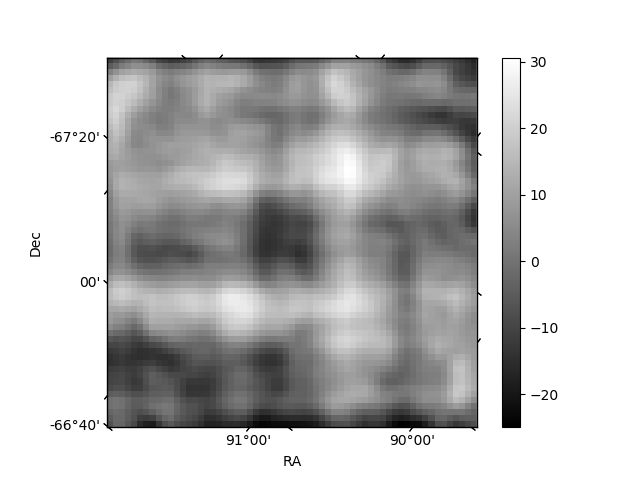

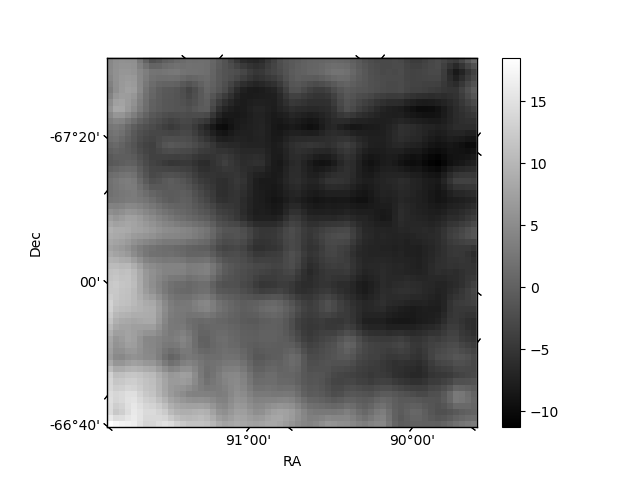

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

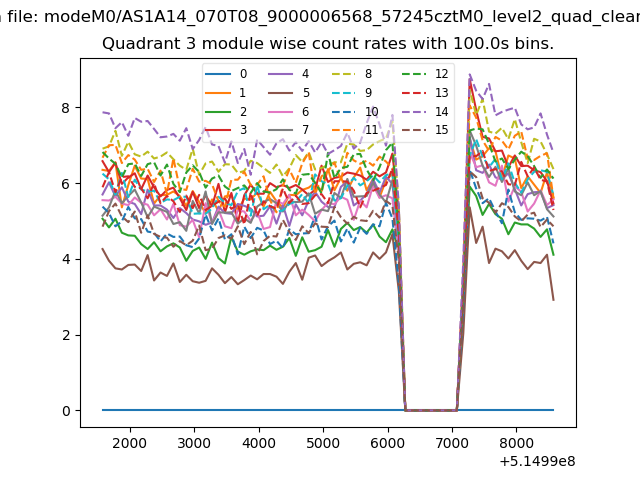

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

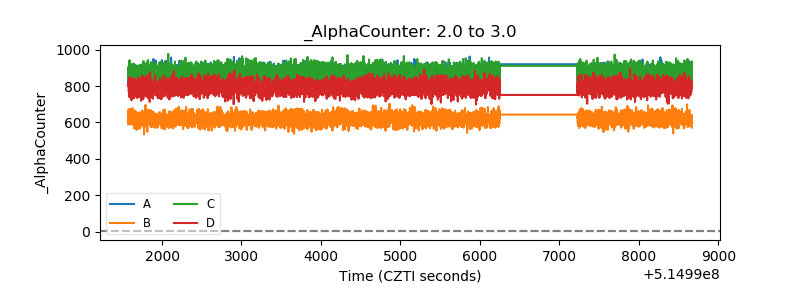

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

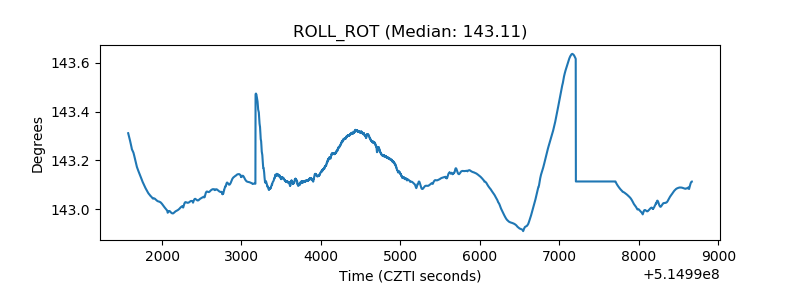

| _ROLL_ROT |  |
| _Roll_DEC |  |

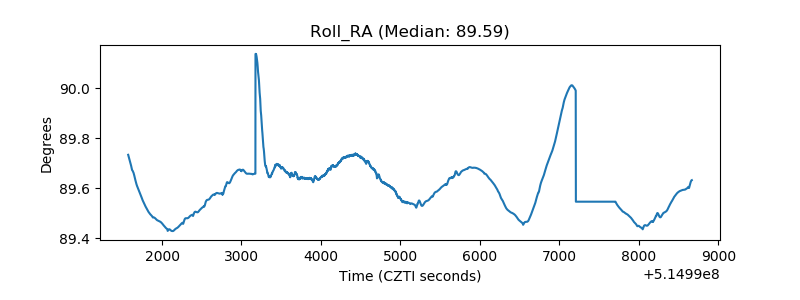

| _Roll_RA |  |
| Veto Counter |  |
