| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57248cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57248cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,104,000 | 87,773,760 |
| Size | 364.4 MB | 83.7 MB |
| Events in quadrant A | 3,295,492 | 571,706 |
| Events in quadrant B | 2,965,015 | 625,231 |
| Events in quadrant C | 4,288,287 | 521,401 |
| Events in quadrant D | 3,110,526 | 504,827 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14432 | 2 |
| B | 0 | 13339 | 2 |
| C | 0 | 17232 | 2 |
| D | 0 | 13773 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6228 | 157 | 2.520873% |
| B | 6228 | 60 | 0.963391% |
| C | 6228 | 283 | 4.543995% |
| D | 6228 | 58 | 0.931278% |

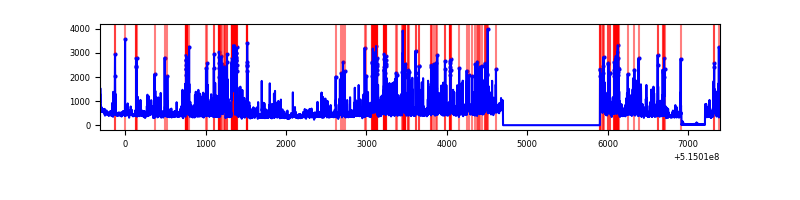

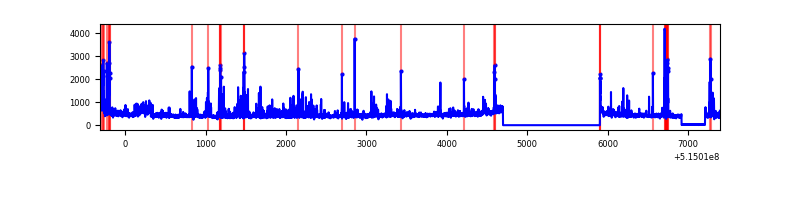

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6504 | 120 | 120 | 1.56% | 1.85% |  |
| B | 7708 | 6504 | 15 | 15 | 0.19% | 0.23% |  |
| C | 7708 | 6504 | 260 | 260 | 3.37% | 4.00% |  |
| D | 7708 | 6504 | 52 | 52 | 0.67% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 484552 | 2918.84 | 669 | 651 | 165.8 |
| A | 4 | 13 | 66082 | 394.67 | 669 | 651 | 165.8 |
| A | 10 | 251 | 52811 | 314.62 | 669 | 651 | 165.8 |
| B | 5 | 185 | 129302 | 904.84 | 666 | 642 | 142.2 |
| B | 10 | 16 | 38040 | 263.01 | 666 | 642 | 142.2 |
| B | 7 | 252 | 33269 | 229.46 | 666 | 642 | 142.2 |
| C | 15 | 224 | 1655713 | 9605.42 | 629 | 624 | 172.3 |
| C | 14 | 254 | 89295 | 514.61 | 629 | 624 | 172.3 |
| C | 12 | 250 | 43093 | 246.47 | 629 | 624 | 172.3 |
| D | 3 | 224 | 115232 | 626.77 | 637 | 607 | 182.9 |
| D | 7 | 96 | 73572 | 398.97 | 637 | 607 | 182.9 |
| D | 8 | 240 | 68884 | 373.34 | 637 | 607 | 182.9 |

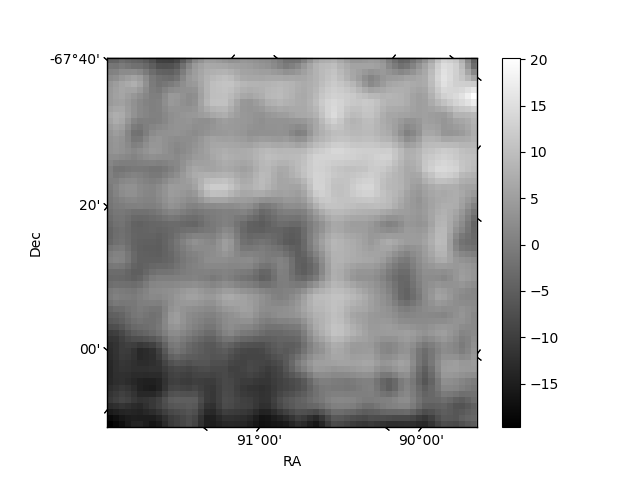

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

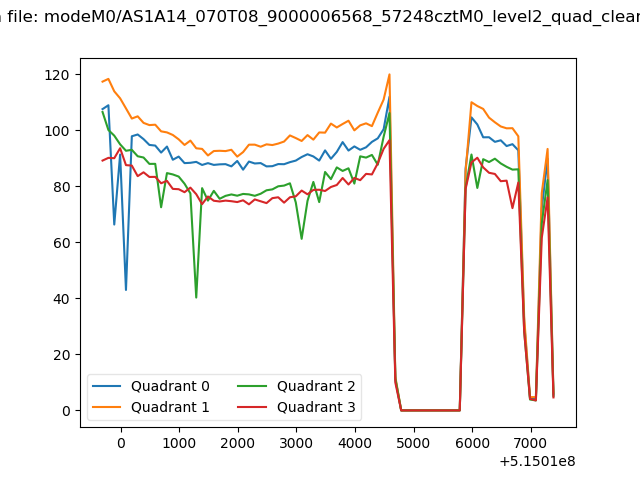

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

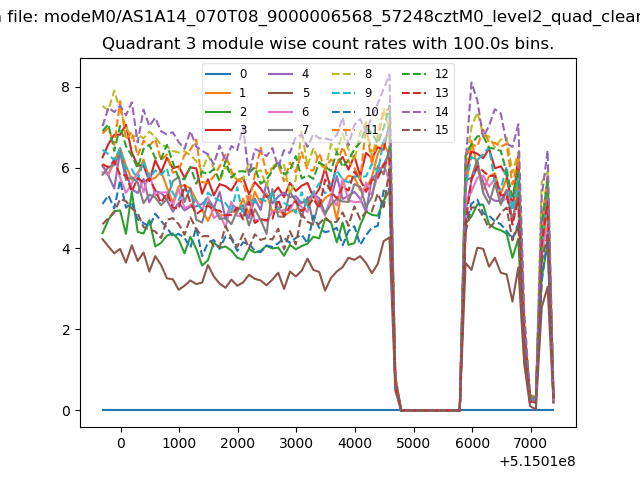

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

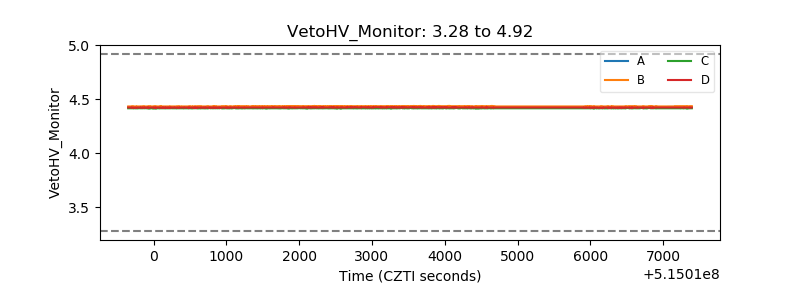

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

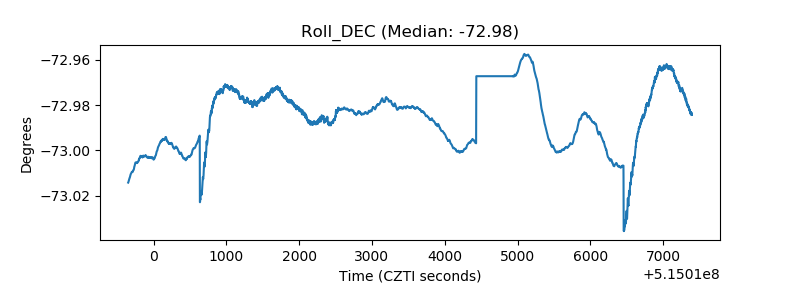

| _Roll_DEC |  |
| _Roll_RA |  |

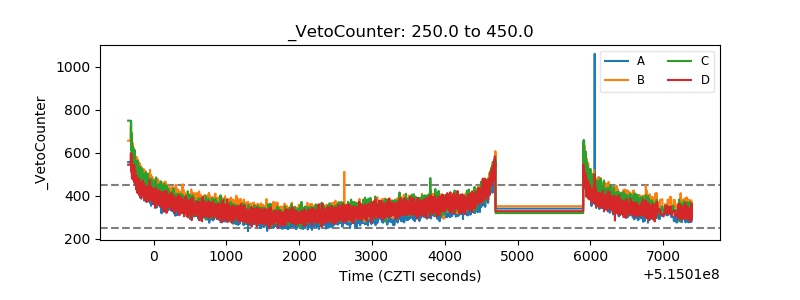

| Veto Counter |  |
