| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006568_57250cztM0_level2.fits | modeM0/AS1A14_070T08_9000006568_57250cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,908,800 | 92,185,920 |
| Size | 474.8 MB | 87.9 MB |
| Events in quadrant A | 3,914,848 | 629,027 |
| Events in quadrant B | 6,823,071 | 542,946 |
| Events in quadrant C | 4,118,843 | 589,166 |
| Events in quadrant D | 3,056,494 | 565,904 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16468 | 2 |
| B | 0 | 24970 | 2 |
| C | 0 | 17172 | 2 |
| D | 0 | 14116 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6656 | 162 | 2.433894% |
| B | 6656 | 1523 | 22.881611% |
| C | 6656 | 195 | 2.929688% |
| D | 6656 | 20 | 0.300481% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

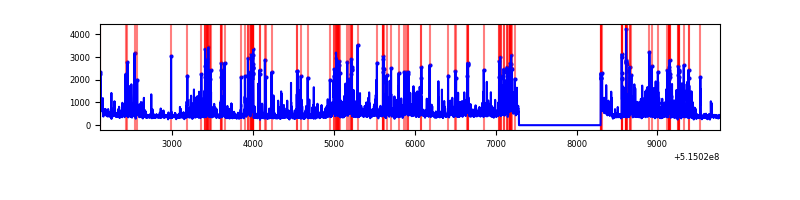

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6657 | 165 | 165 | 2.15% | 2.48% |  |
| B | 7666 | 6657 | 1303 | 1303 | 17.00% | 19.57% |  |
| C | 7666 | 6657 | 167 | 167 | 2.18% | 2.51% |  |
| D | 7666 | 6657 | 18 | 18 | 0.23% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1092320 | 6387.5 | 688 | 671 | 170.9 |
| A | 4 | 13 | 60015 | 347.24 | 688 | 671 | 170.9 |
| A | 10 | 251 | 56803 | 328.44 | 688 | 671 | 170.9 |
| B | 5 | 185 | 3996298 | 30384.04 | 618 | 596 | 131.5 |
| B | 4 | 201 | 94540 | 714.37 | 618 | 596 | 131.5 |
| B | 10 | 16 | 91625 | 692.2 | 618 | 596 | 131.5 |
| C | 15 | 224 | 1234690 | 6820.29 | 662 | 656 | 180.9 |
| C | 14 | 254 | 202645 | 1116.36 | 662 | 656 | 180.9 |
| C | 14 | 246 | 30788 | 166.53 | 662 | 656 | 180.9 |
| D | 2 | 249 | 163628 | 866.34 | 664 | 633 | 188.1 |
| D | 3 | 224 | 88588 | 467.49 | 664 | 633 | 188.1 |
| D | 5 | 173 | 52171 | 273.93 | 664 | 633 | 188.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

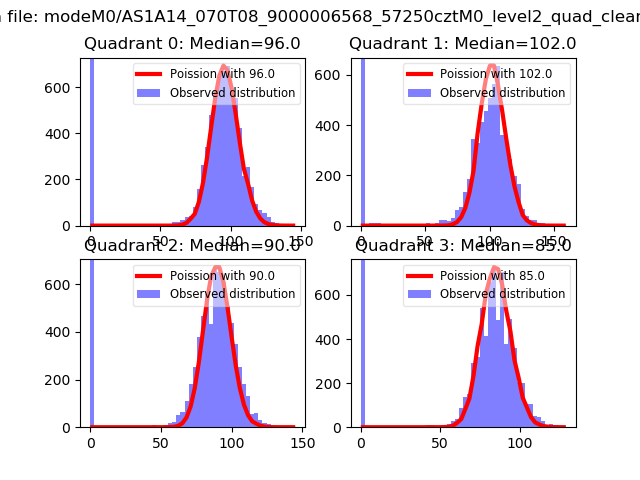

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

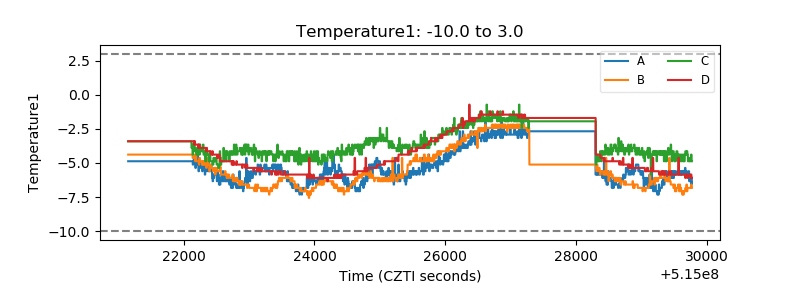

| Temperature 1 |  |

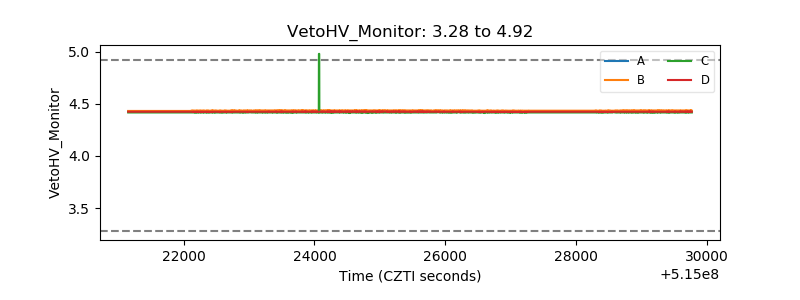

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

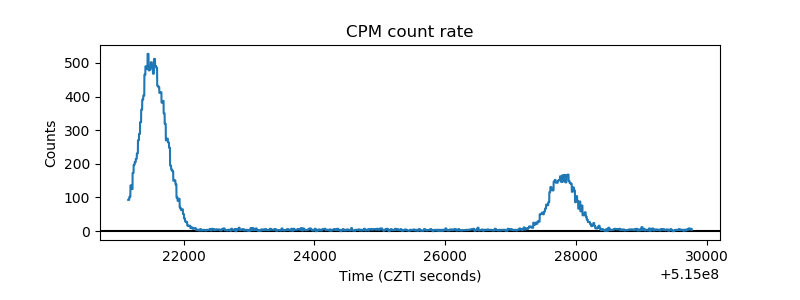

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

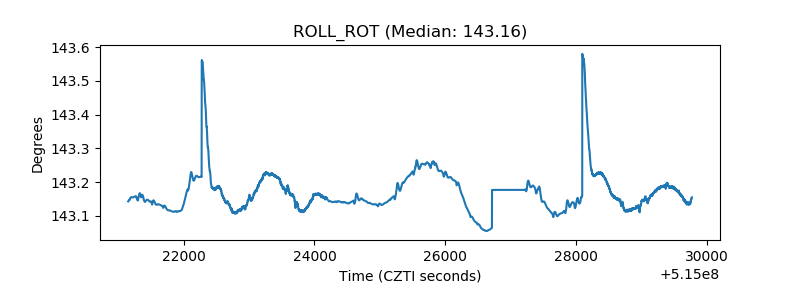

| _ROLL_ROT |  |
| _Roll_DEC |  |

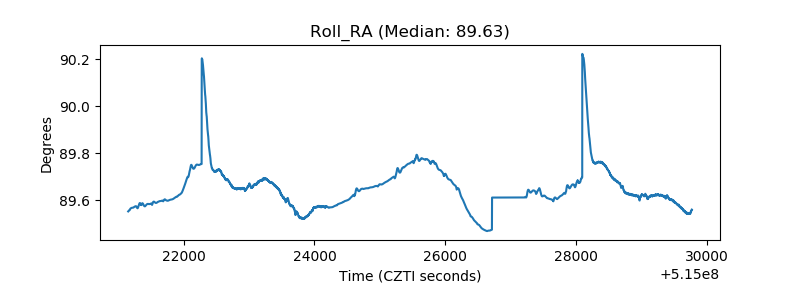

| _Roll_RA |  |
| Veto Counter |  |
