| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_102T01_9000006572_57333cztM0_level2.fits | modeM0/AS1A14_102T01_9000006572_57333cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,042,240 | 85,636,800 |
| Size | 460.7 MB | 81.7 MB |
| Events in quadrant A | 2,846,235 | 579,403 |
| Events in quadrant B | 2,777,351 | 620,045 |
| Events in quadrant C | 6,603,657 | 472,609 |
| Events in quadrant D | 5,191,144 | 505,323 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12937 | 1 |
| B | 0 | 12505 | 1 |
| C | 0 | 23738 | 1 |
| D | 0 | 19489 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5950 | 72 | 1.210084% |
| B | 5951 | 74 | 1.243488% |
| C | 5951 | 1173 | 19.710973% |
| D | 5951 | 359 | 6.032600% |

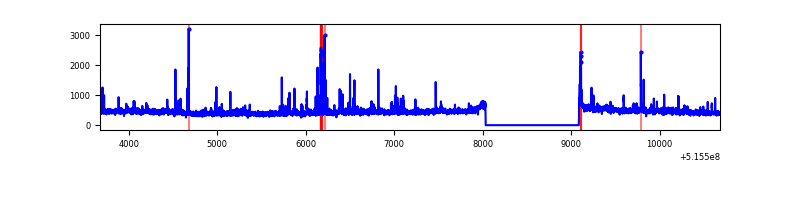

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7005 | 5951 | 15 | 15 | 0.21% | 0.25% |  |
| B | 7006 | 5952 | 17 | 17 | 0.24% | 0.29% |  |
| C | 7006 | 5952 | 934 | 934 | 13.33% | 15.69% |  |
| D | 7006 | 5952 | 299 | 299 | 4.27% | 5.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 46 | 195240 | 1200.11 | 650 | 634 | 162.2 |
| A | 0 | 12 | 66734 | 407.63 | 650 | 634 | 162.2 |
| A | 8 | 6 | 11228 | 65.33 | 650 | 634 | 162.2 |
| B | 0 | 213 | 56297 | 408.12 | 636 | 613 | 136.4 |
| B | 10 | 247 | 35269 | 254.0 | 636 | 613 | 136.4 |
| B | 10 | 16 | 29530 | 211.94 | 636 | 613 | 136.4 |
| C | 15 | 224 | 3254406 | 21019.4 | 569 | 563 | 154.8 |
| C | 12 | 250 | 490844 | 3167.15 | 569 | 563 | 154.8 |
| C | 12 | 252 | 271586 | 1750.77 | 569 | 563 | 154.8 |
| D | 3 | 224 | 1875131 | 10750.03 | 613 | 583 | 174.4 |
| D | 2 | 249 | 302780 | 1733.02 | 613 | 583 | 174.4 |
| D | 8 | 240 | 289816 | 1658.67 | 613 | 583 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

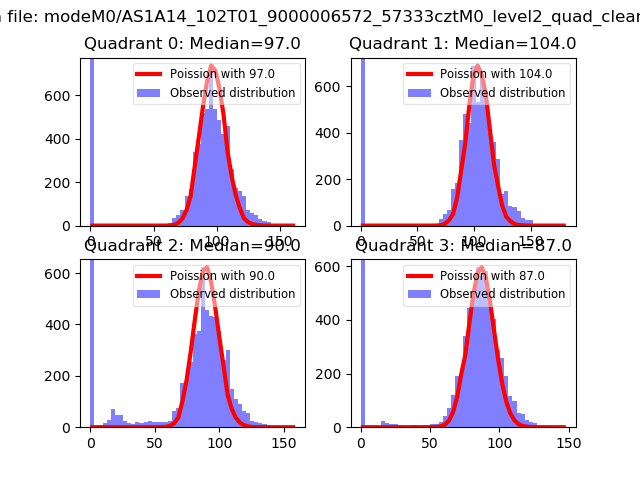

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

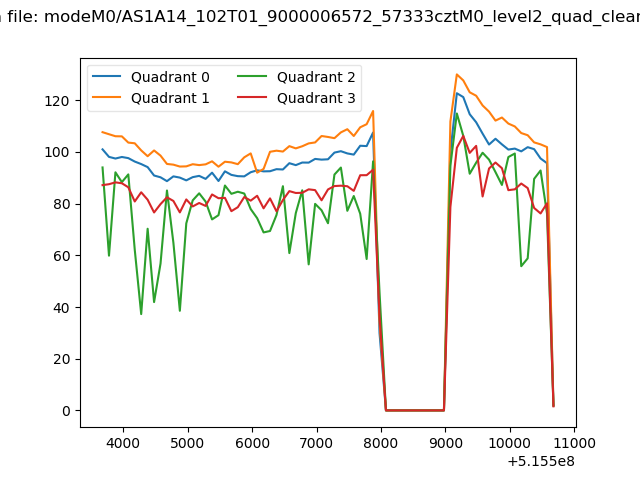

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

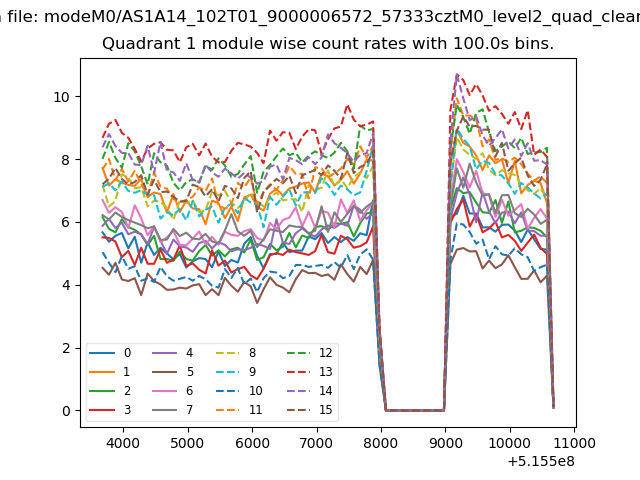

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

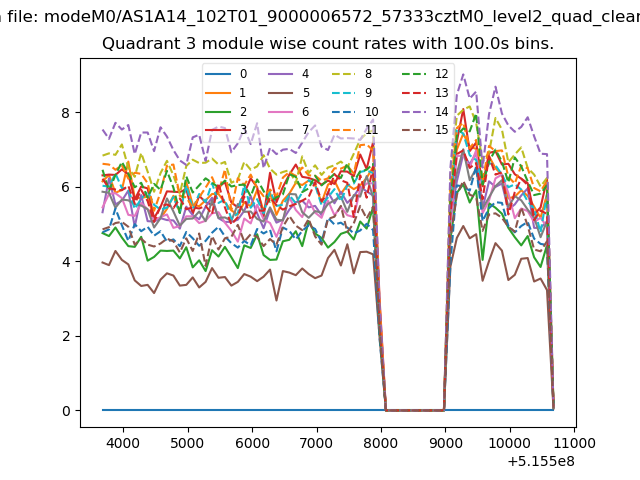

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

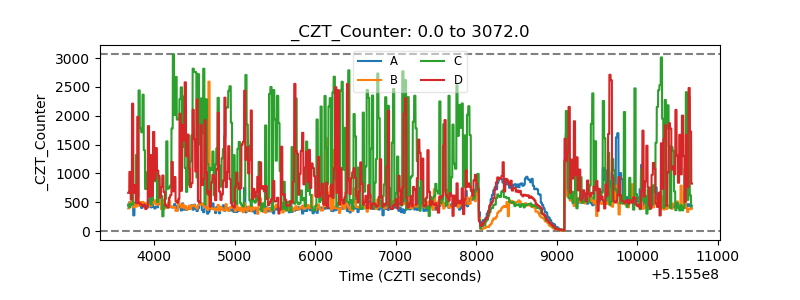

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
