| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_102T01_9000006572_57351cztM0_level2.fits | modeM0/AS1A14_102T01_9000006572_57351cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,732,480 | 86,797,440 |
| Size | 424.1 MB | 82.8 MB |
| Events in quadrant A | 2,846,146 | 589,847 |
| Events in quadrant B | 2,877,141 | 624,546 |
| Events in quadrant C | 5,715,981 | 494,905 |
| Events in quadrant D | 4,529,991 | 475,966 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13129 | 7 |
| B | 0 | 13167 | 3 |
| C | 0 | 21625 | 96 |
| D | 0 | 17916 | 13 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6344 | 19 | 0.299496% |
| B | 6346 | 28 | 0.441223% |
| C | 6335 | 835 | 13.180742% |
| D | 6341 | 368 | 5.803501% |

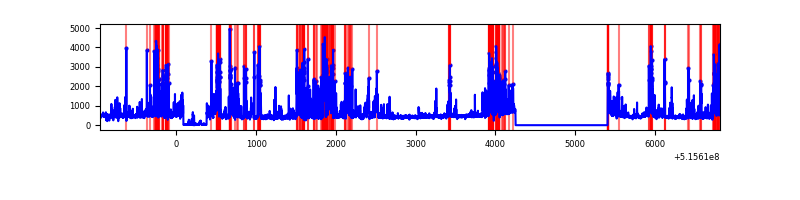

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7777 | 6623 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7777 | 6623 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7777 | 6612 | 686 | 686 | 8.82% | 10.38% |  |
| D | 7776 | 6607 | 310 | 310 | 3.99% | 4.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 41471 | 238.11 | 693 | 674 | 171.3 |
| A | 4 | 95 | 40354 | 231.59 | 693 | 674 | 171.3 |
| A | 10 | 251 | 21700 | 122.72 | 693 | 674 | 171.3 |
| B | 7 | 252 | 39934 | 267.76 | 686 | 662 | 146.7 |
| B | 5 | 185 | 32791 | 219.06 | 686 | 662 | 146.7 |
| B | 10 | 246 | 26761 | 177.95 | 686 | 662 | 146.7 |
| C | 15 | 224 | 3001077 | 17780.58 | 621 | 613 | 168.7 |
| C | 14 | 254 | 80461 | 473.17 | 621 | 613 | 168.7 |
| C | 1 | 12 | 78841 | 463.57 | 621 | 613 | 168.7 |
| D | 8 | 240 | 1442143 | 7836.67 | 644 | 612 | 183.9 |
| D | 7 | 96 | 291896 | 1583.52 | 644 | 612 | 183.9 |
| D | 5 | 173 | 49832 | 267.58 | 644 | 612 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

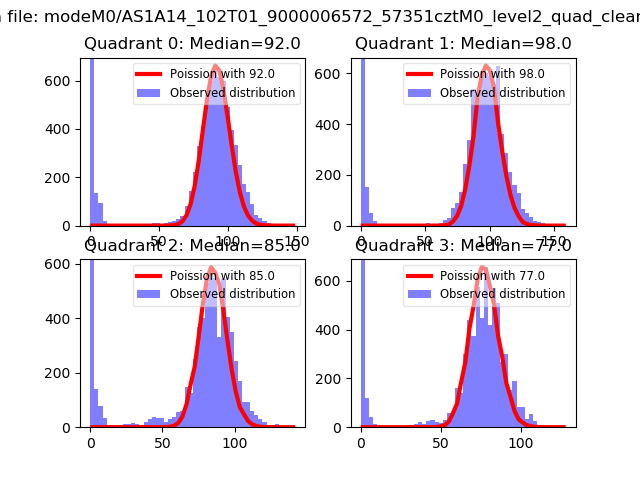

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

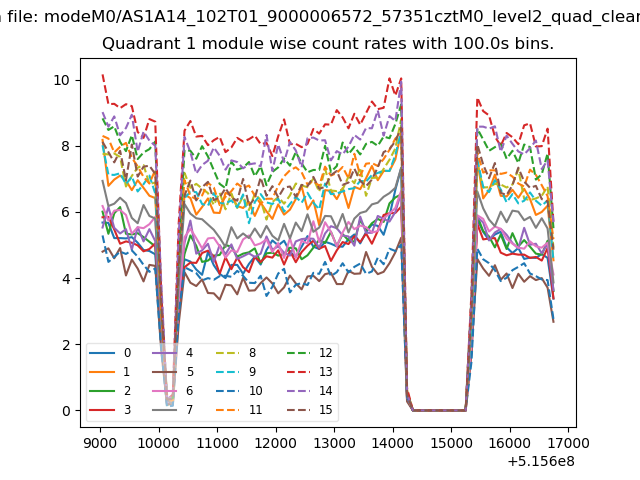

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

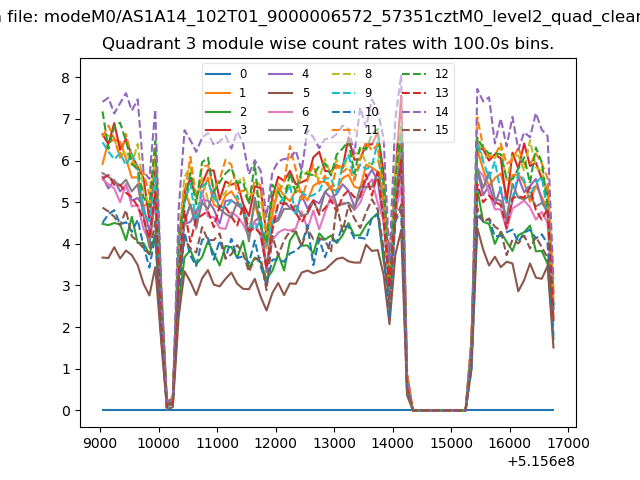

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

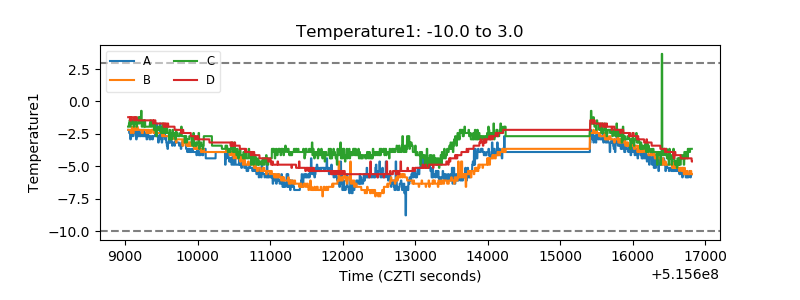

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

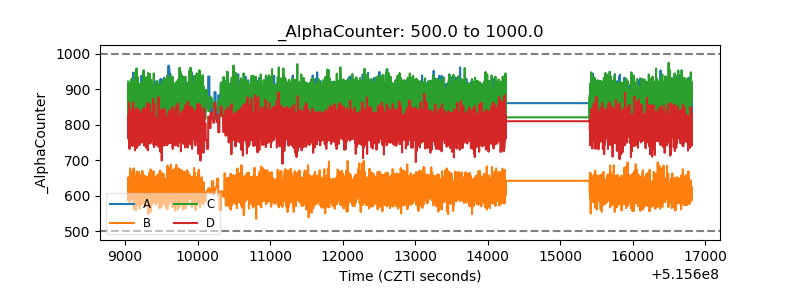

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

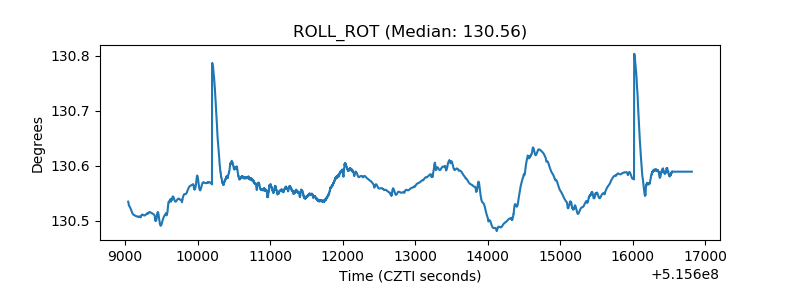

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
