| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_102T01_9000006572_57369cztM0_level2.fits | modeM0/AS1A14_102T01_9000006572_57369cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,478,400 | 101,632,320 |
| Size | 553.6 MB | 96.9 MB |
| Events in quadrant A | 4,165,516 | 664,960 |
| Events in quadrant B | 4,300,261 | 706,053 |
| Events in quadrant C | 7,026,554 | 587,858 |
| Events in quadrant D | 5,364,530 | 552,816 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18146 | 1 |
| B | 0 | 18651 | 1 |
| C | 0 | 26631 | 1 |
| D | 0 | 21804 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8127 | 77 | 0.947459% |
| B | 8128 | 201 | 2.472933% |
| C | 8127 | 791 | 9.732989% |
| D | 8127 | 446 | 5.487880% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8535 | 8411 | 8 | 8 | 0.09% | 0.10% |  |
| B | 8536 | 8412 | 72 | 72 | 0.84% | 0.86% |  |
| C | 8535 | 8411 | 638 | 638 | 7.48% | 7.59% |  |
| D | 8535 | 8411 | 435 | 435 | 5.10% | 5.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 420938 | 1935.46 | 886 | 864 | 217.0 |
| A | 0 | 12 | 155550 | 712.7 | 886 | 864 | 217.0 |
| A | 8 | 4 | 70756 | 322.02 | 886 | 864 | 217.0 |
| B | 1 | 223 | 238103 | 1270.72 | 872 | 838 | 186.7 |
| B | 5 | 185 | 227165 | 1212.14 | 872 | 838 | 186.7 |
| B | 10 | 16 | 93991 | 498.9 | 872 | 838 | 186.7 |
| C | 15 | 224 | 2963358 | 13440.53 | 818 | 811 | 220.4 |
| C | 12 | 252 | 317149 | 1435.17 | 818 | 811 | 220.4 |
| C | 14 | 254 | 272967 | 1234.72 | 818 | 811 | 220.4 |
| D | 8 | 240 | 1026840 | 4347.39 | 833 | 795 | 236.0 |
| D | 2 | 249 | 310185 | 1310.9 | 833 | 795 | 236.0 |
| D | 15 | 142 | 275228 | 1162.78 | 833 | 795 | 236.0 |

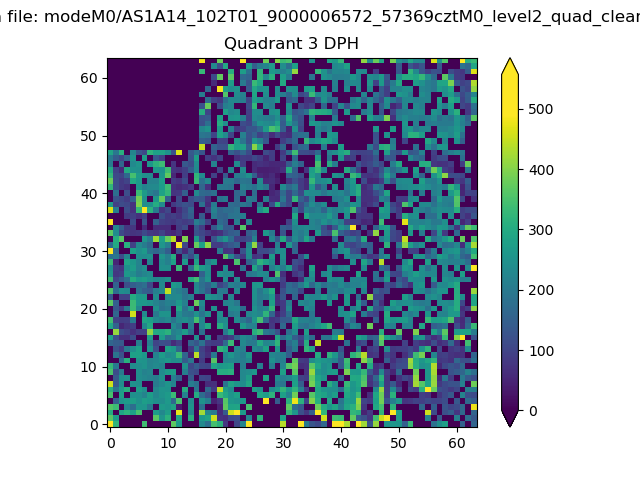

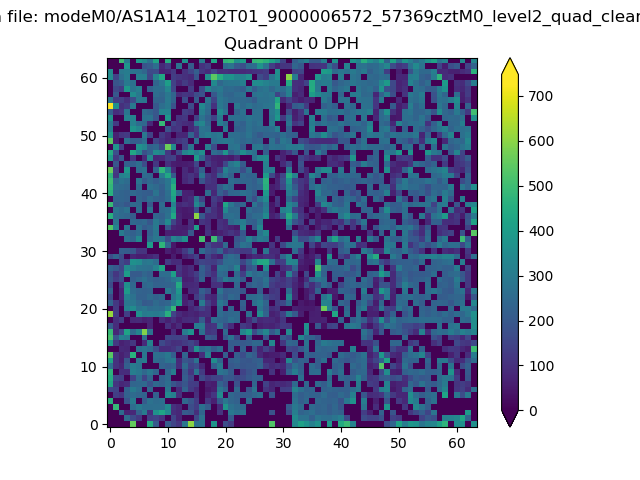

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

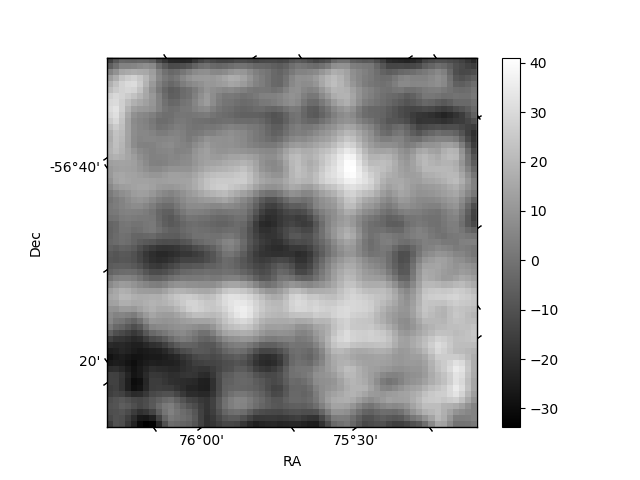

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

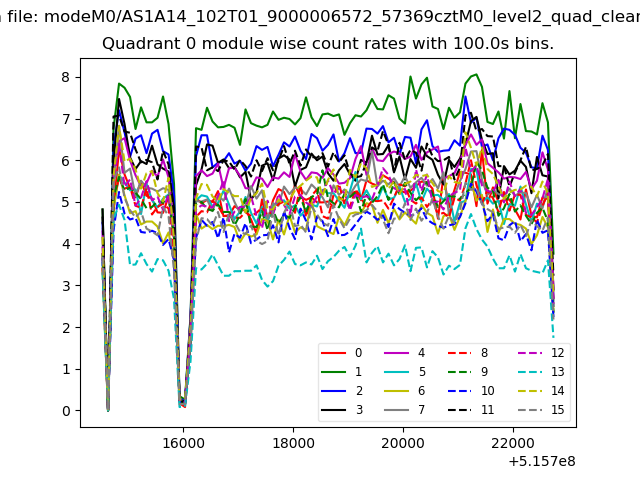

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

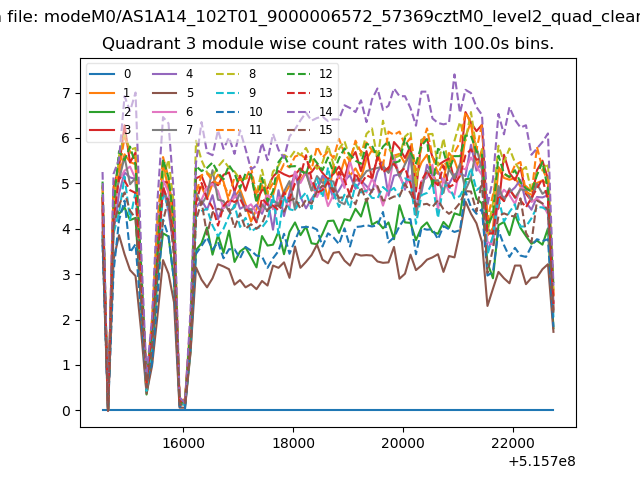

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

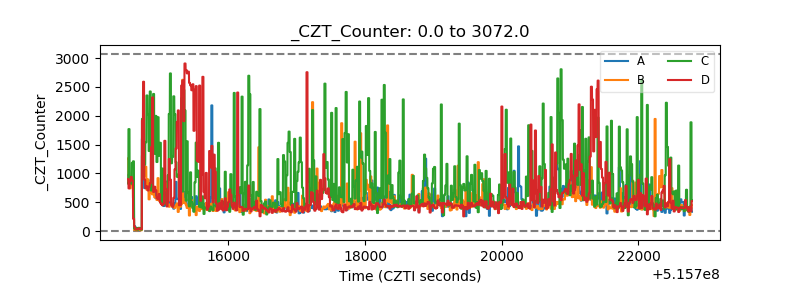

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

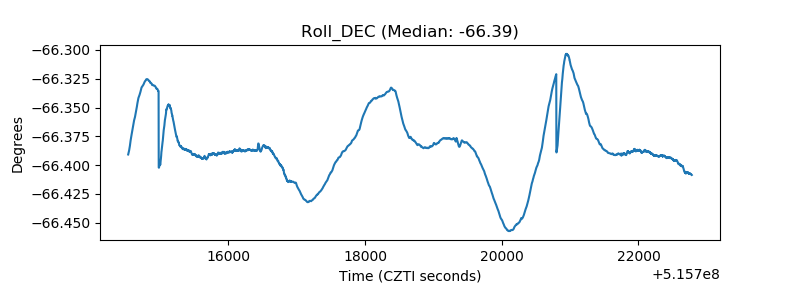

| _Roll_DEC |  |
| _Roll_RA |  |

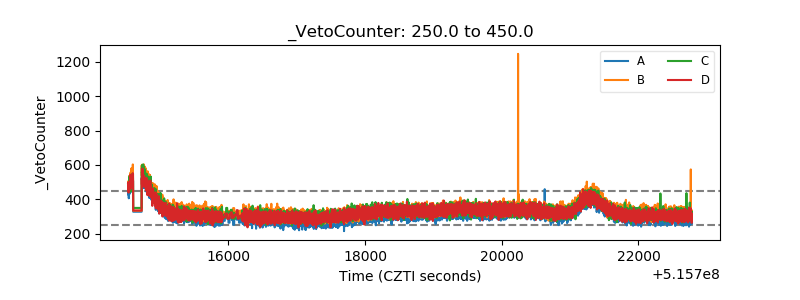

| Veto Counter |  |
