| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_102T01_9000006572_57392cztM0_level2.fits | modeM0/AS1A14_102T01_9000006572_57392cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,856,320 | 85,875,840 |
| Size | 424.2 MB | 81.9 MB |
| Events in quadrant A | 2,801,719 | 588,767 |
| Events in quadrant B | 2,749,687 | 630,328 |
| Events in quadrant C | 7,164,518 | 441,245 |
| Events in quadrant D | 3,290,588 | 526,465 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12459 | 1 |
| B | 0 | 12438 | 6 |
| C | 0 | 25394 | 1 |
| D | 0 | 13912 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5919 | 69 | 1.165737% |
| B | 5919 | 58 | 0.979895% |
| C | 5919 | 1496 | 25.274540% |
| D | 5919 | 95 | 1.605001% |

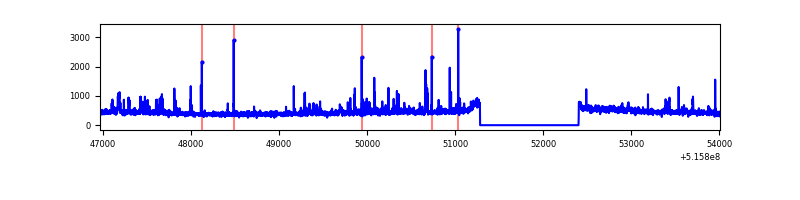

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7039 | 5920 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7039 | 5920 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7039 | 5920 | 1186 | 1186 | 16.85% | 20.03% |  |
| D | 7039 | 5920 | 43 | 43 | 0.61% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 98854 | 611.52 | 654 | 637 | 160.6 |
| A | 8 | 4 | 79803 | 492.91 | 654 | 637 | 160.6 |
| A | 3 | 14 | 32850 | 200.57 | 654 | 637 | 160.6 |
| B | 0 | 245 | 72637 | 530.21 | 638 | 615 | 135.8 |
| B | 5 | 185 | 36549 | 264.54 | 638 | 615 | 135.8 |
| B | 10 | 247 | 25703 | 184.69 | 638 | 615 | 135.8 |
| C | 15 | 224 | 4309984 | 28662.99 | 552 | 547 | 150.3 |
| C | 9 | 38 | 243606 | 1616.64 | 552 | 547 | 150.3 |
| C | 14 | 254 | 114340 | 756.86 | 552 | 547 | 150.3 |
| D | 2 | 31 | 178894 | 1008.33 | 626 | 600 | 176.8 |
| D | 14 | 49 | 143952 | 810.72 | 626 | 600 | 176.8 |
| D | 3 | 224 | 87953 | 494.02 | 626 | 600 | 176.8 |

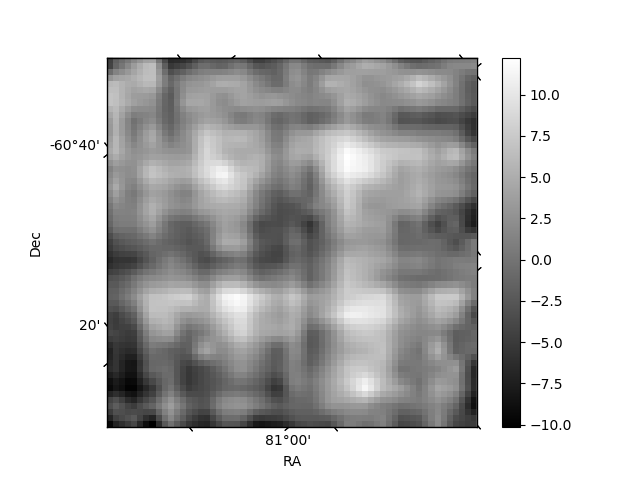

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

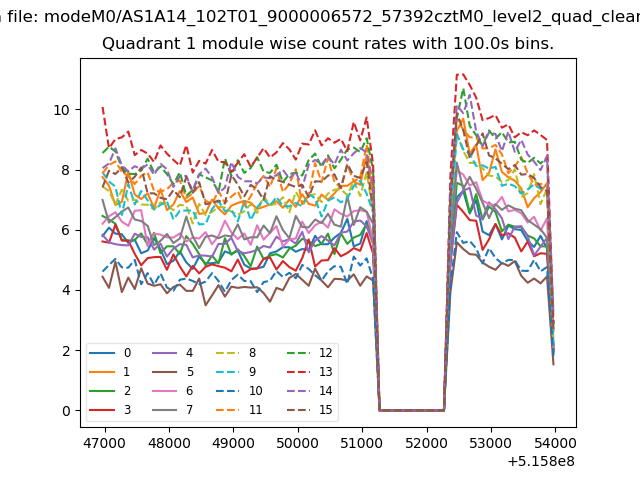

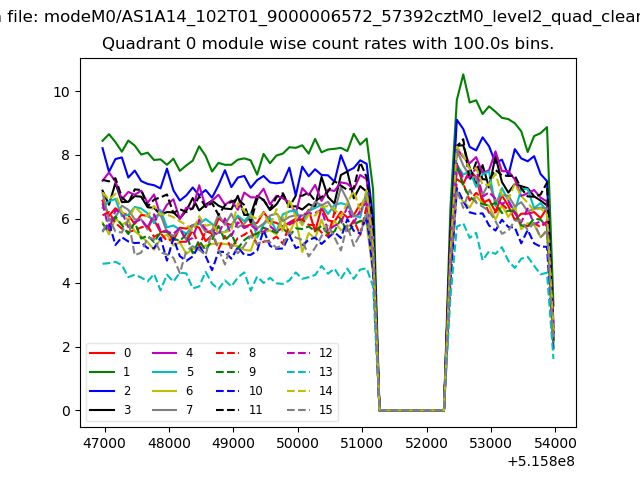

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

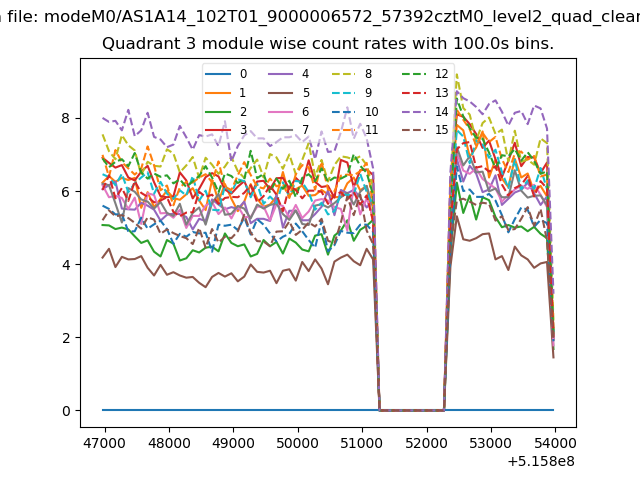

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

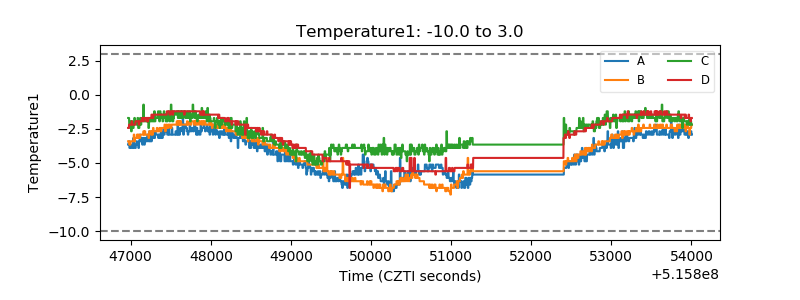

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

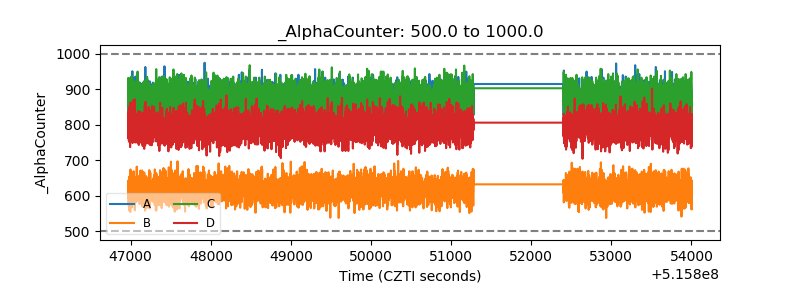

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

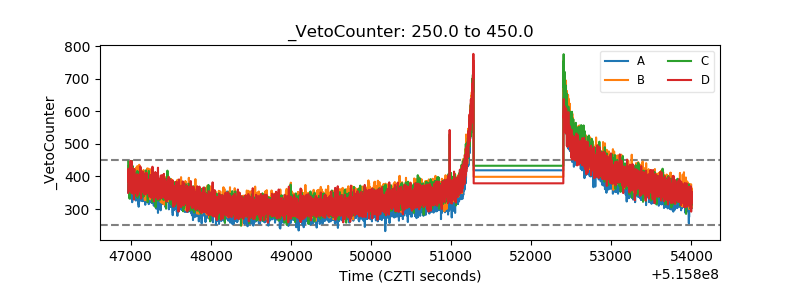

| Veto Counter |  |
