| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_102T01_9000006572_57406cztM0_level2.fits | modeM0/AS1A14_102T01_9000006572_57406cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,560,000 | 86,595,840 |
| Size | 436.4 MB | 82.6 MB |
| Events in quadrant A | 3,604,862 | 583,291 |
| Events in quadrant B | 2,959,689 | 624,215 |
| Events in quadrant C | 6,475,904 | 474,300 |
| Events in quadrant D | 3,430,593 | 521,569 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15040 | 1 |
| B | 0 | 13037 | 1 |
| C | 0 | 23366 | 1 |
| D | 0 | 14399 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5998 | 97 | 1.617206% |
| B | 5999 | 78 | 1.300217% |
| C | 5998 | 1185 | 19.756586% |
| D | 5998 | 175 | 2.917639% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7068 | 5999 | 14 | 14 | 0.20% | 0.23% |  |
| B | 7069 | 6000 | 14 | 14 | 0.20% | 0.23% |  |
| C | 7067 | 5998 | 919 | 919 | 13.00% | 15.32% |  |
| D | 7068 | 5999 | 101 | 101 | 1.43% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 1052065 | 6546.97 | 652 | 636 | 160.6 |
| A | 3 | 14 | 11968 | 70.56 | 652 | 636 | 160.6 |
| A | 4 | 3 | 10707 | 62.71 | 652 | 636 | 160.6 |
| B | 0 | 216 | 177246 | 1284.68 | 637 | 613 | 137.5 |
| B | 10 | 247 | 59008 | 424.72 | 637 | 613 | 137.5 |
| B | 5 | 185 | 54086 | 388.92 | 637 | 613 | 137.5 |
| C | 15 | 224 | 3935381 | 25200.53 | 571 | 564 | 156.1 |
| C | 14 | 254 | 73138 | 464.8 | 571 | 564 | 156.1 |
| C | 12 | 252 | 71855 | 456.58 | 571 | 564 | 156.1 |
| D | 3 | 224 | 318042 | 1810.14 | 625 | 598 | 175.4 |
| D | 2 | 249 | 153457 | 871.64 | 625 | 598 | 175.4 |
| D | 8 | 240 | 142185 | 807.36 | 625 | 598 | 175.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

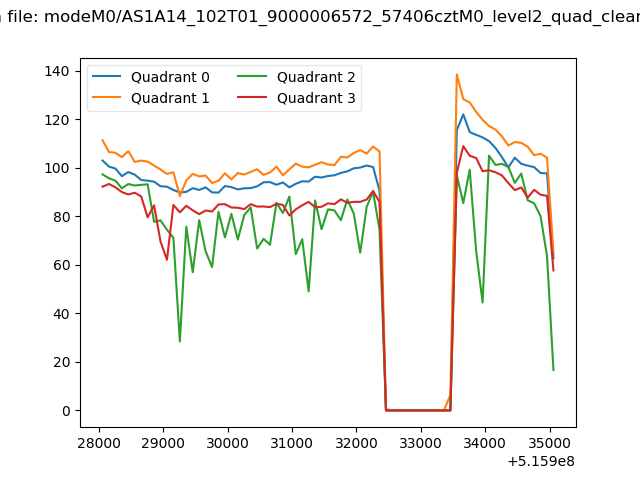

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

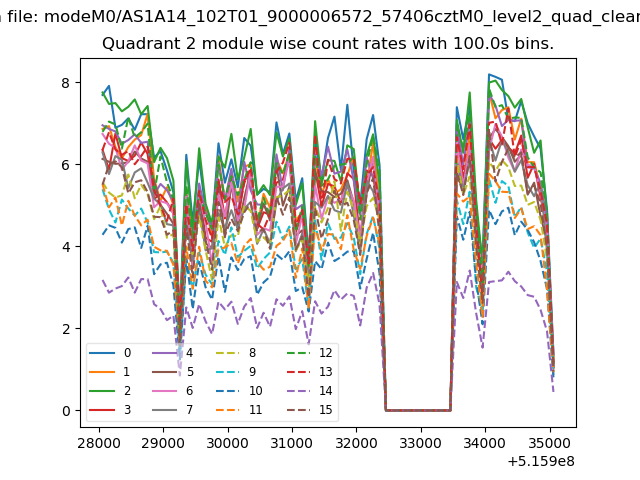

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

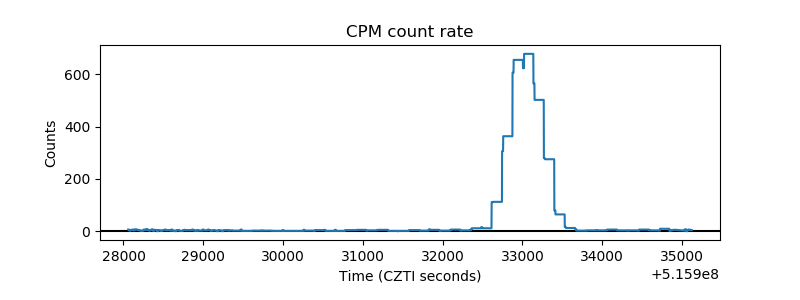

| _CPM_Rate |  |

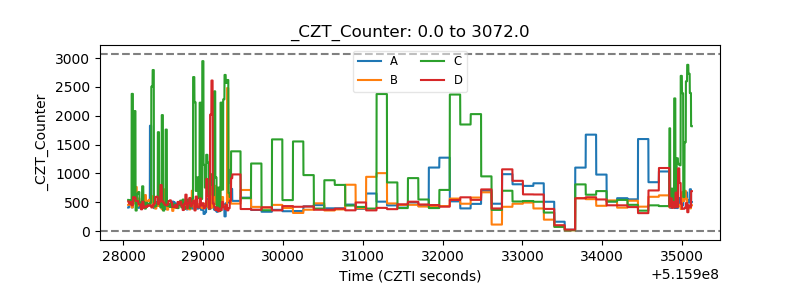

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

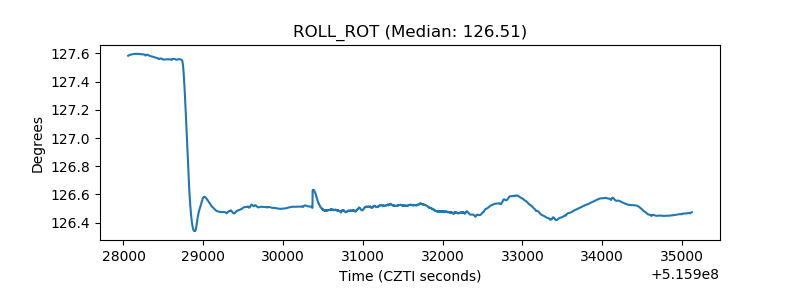

| _ROLL_ROT |  |

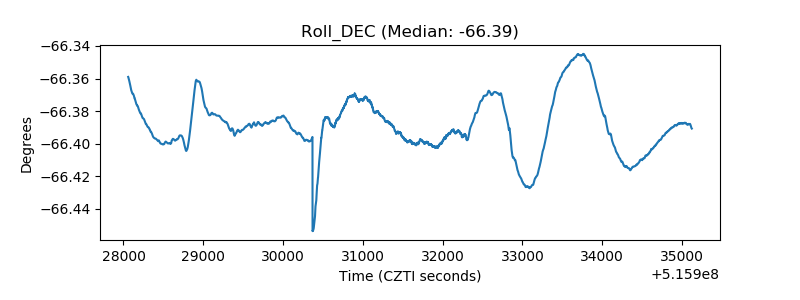

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
