| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_102T01_9000006572_57418cztM0_level2.fits | modeM0/AS1A14_102T01_9000006572_57418cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,877,120 | 88,272,000 |
| Size | 466.2 MB | 84.2 MB |
| Events in quadrant A | 5,011,116 | 568,537 |
| Events in quadrant B | 2,816,826 | 637,002 |
| Events in quadrant C | 5,967,448 | 503,996 |
| Events in quadrant D | 3,813,563 | 524,636 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19277 | 1 |
| B | 0 | 13017 | 1 |
| C | 0 | 22153 | 1 |
| D | 0 | 15827 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6275 | 516 | 8.223108% |
| B | 6276 | 89 | 1.418101% |
| C | 6275 | 954 | 15.203187% |
| D | 6275 | 242 | 3.856574% |

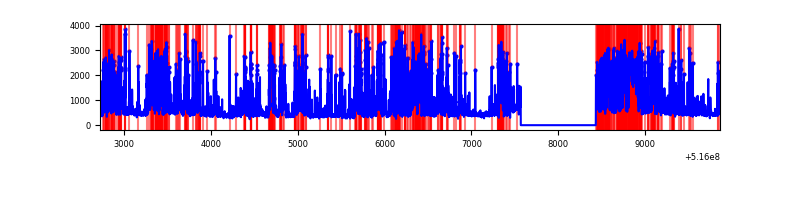

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7140 | 6275 | 515 | 515 | 7.21% | 8.21% |  |
| B | 7141 | 6276 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7140 | 6275 | 736 | 736 | 10.31% | 11.73% |  |
| D | 7140 | 6275 | 168 | 168 | 2.35% | 2.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 1613126 | 9888.87 | 663 | 645 | 163.1 |
| A | 10 | 251 | 635353 | 3892.48 | 663 | 645 | 163.1 |
| A | 7 | 64 | 155752 | 951.23 | 663 | 645 | 163.1 |
| B | 10 | 247 | 50492 | 347.0 | 667 | 641 | 143.7 |
| B | 5 | 185 | 48093 | 330.3 | 667 | 641 | 143.7 |
| B | 12 | 111 | 17725 | 118.92 | 667 | 641 | 143.7 |
| C | 15 | 224 | 3017995 | 17833.21 | 619 | 616 | 169.2 |
| C | 6 | 223 | 393039 | 2319.28 | 619 | 616 | 169.2 |
| C | 14 | 254 | 67964 | 398.04 | 619 | 616 | 169.2 |
| D | 7 | 96 | 667962 | 3623.57 | 649 | 621 | 184.2 |
| D | 2 | 249 | 213365 | 1155.17 | 649 | 621 | 184.2 |
| D | 15 | 142 | 100394 | 541.75 | 649 | 621 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

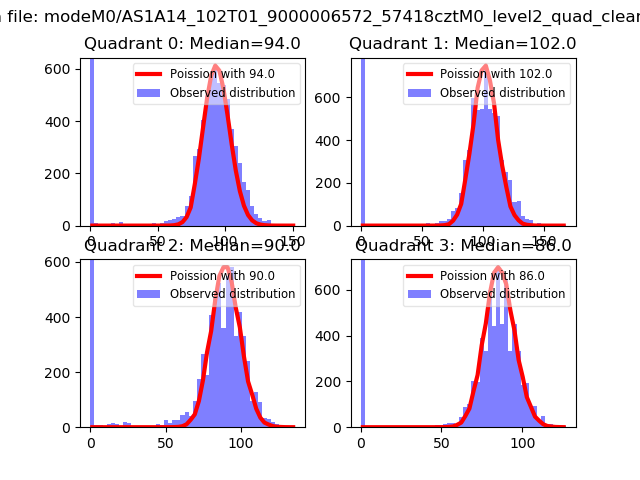

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

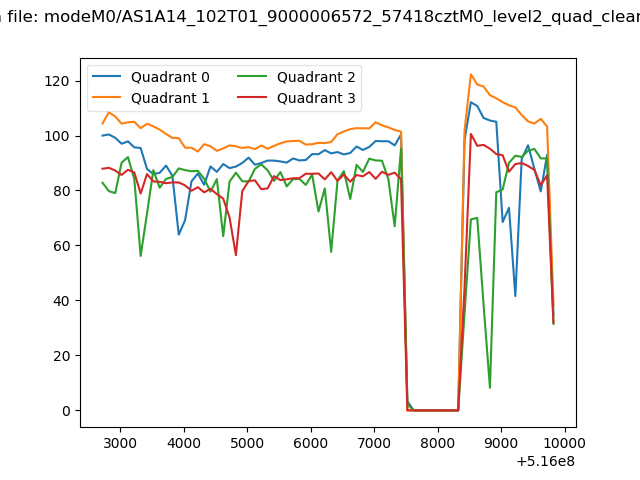

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

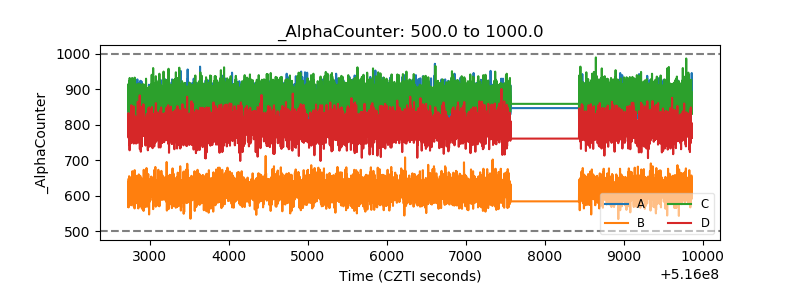

| Alpha Counter |  |

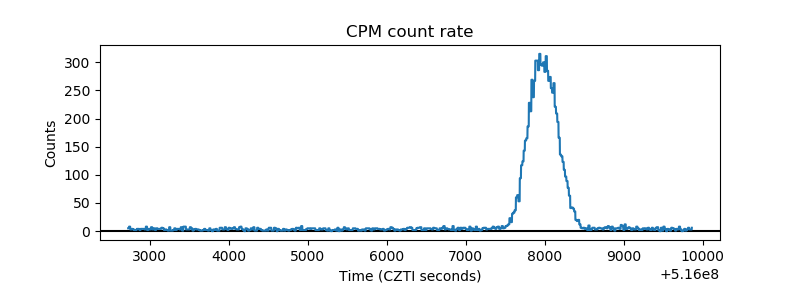

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

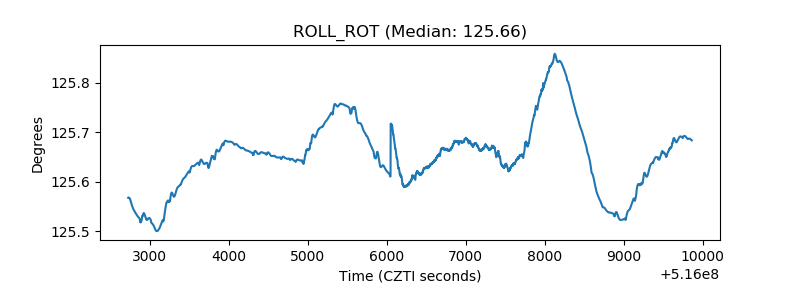

| _ROLL_ROT |  |

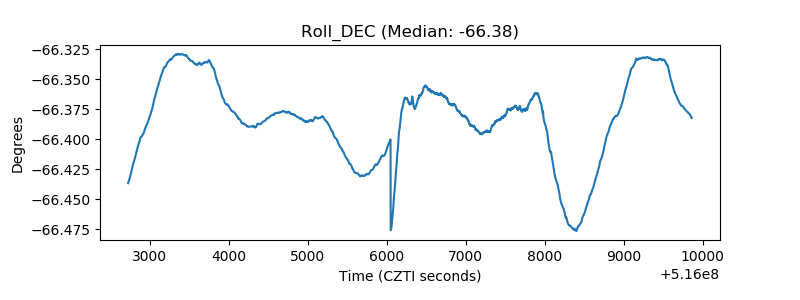

| _Roll_DEC |  |

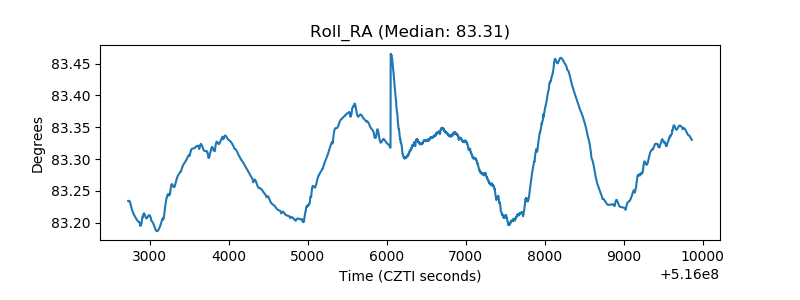

| _Roll_RA |  |
| Veto Counter |  |
