| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57451cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57451cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,351,040 | 87,281,280 |
| Size | 399.9 MB | 83.2 MB |
| Events in quadrant A | 2,728,162 | 589,242 |
| Events in quadrant B | 4,158,765 | 578,628 |
| Events in quadrant C | 4,359,140 | 539,663 |
| Events in quadrant D | 3,821,579 | 526,577 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12173 | 1 |
| B | 0 | 16341 | 1 |
| C | 0 | 16928 | 1 |
| D | 0 | 15368 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5852 | 53 | 0.905673% |
| B | 5853 | 613 | 10.473262% |
| C | 5853 | 309 | 5.279344% |
| D | 5853 | 167 | 2.853238% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7002 | 5853 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7003 | 5854 | 320 | 320 | 4.57% | 5.47% |  |
| C | 7003 | 5854 | 242 | 242 | 3.46% | 4.13% |  |
| D | 7003 | 5854 | 132 | 132 | 1.88% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 204255 | 1284.51 | 650 | 632 | 158.5 |
| A | 13 | 254 | 8544 | 49.91 | 650 | 632 | 158.5 |
| A | 3 | 137 | 7589 | 43.89 | 650 | 632 | 158.5 |
| B | 4 | 206 | 1378380 | 10466.43 | 611 | 589 | 131.6 |
| B | 10 | 247 | 176158 | 1333.72 | 611 | 589 | 131.6 |
| B | 5 | 185 | 57263 | 430.53 | 611 | 589 | 131.6 |
| C | 15 | 224 | 1498209 | 8929.84 | 611 | 605 | 167.7 |
| C | 13 | 3 | 140738 | 835.58 | 611 | 605 | 167.7 |
| C | 1 | 16 | 127879 | 758.9 | 611 | 605 | 167.7 |
| D | 2 | 249 | 361559 | 2061.09 | 624 | 595 | 175.1 |
| D | 15 | 142 | 339527 | 1935.29 | 624 | 595 | 175.1 |
| D | 8 | 240 | 252568 | 1438.76 | 624 | 595 | 175.1 |

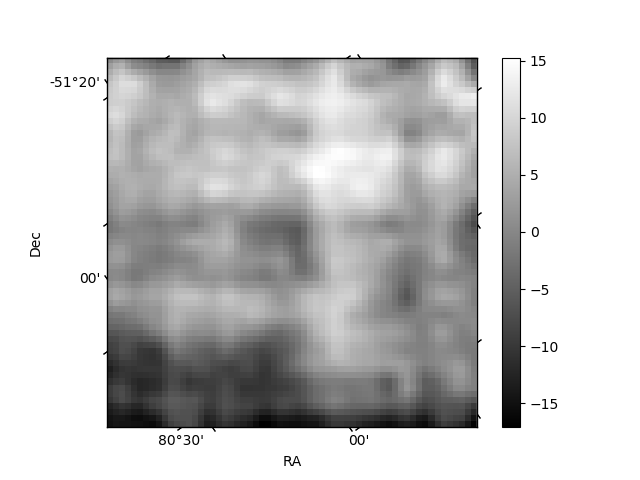

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

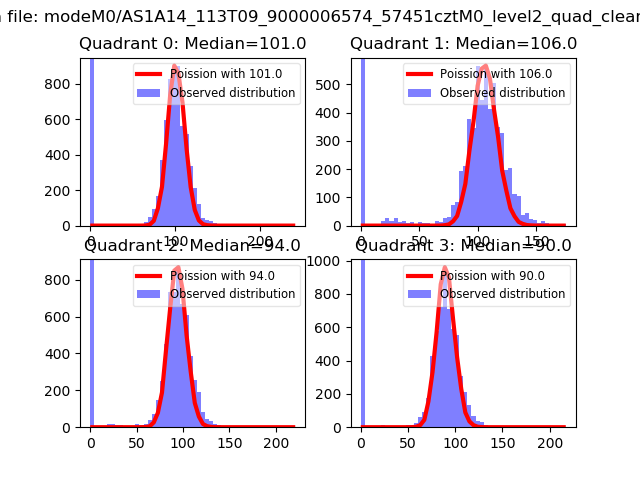

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

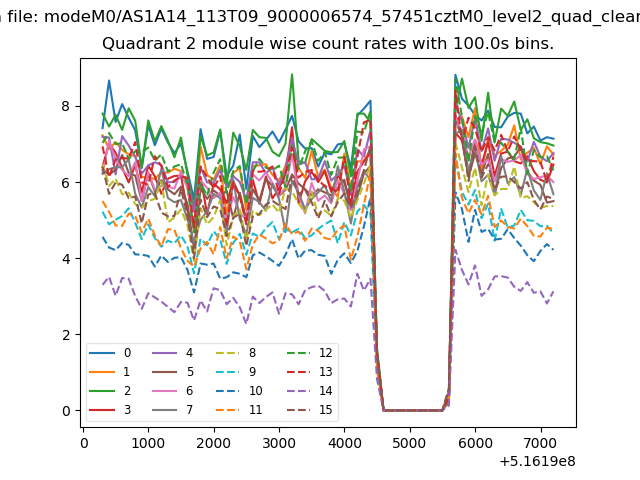

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

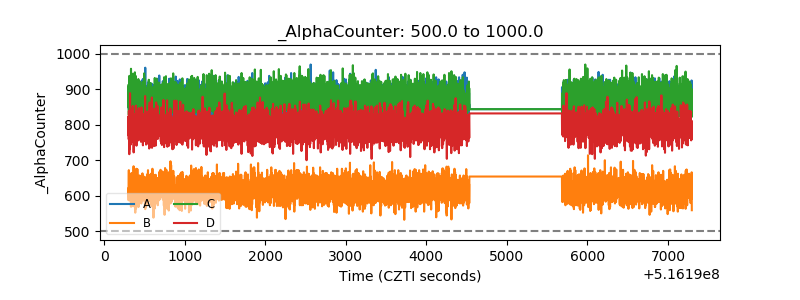

| Alpha Counter |  |

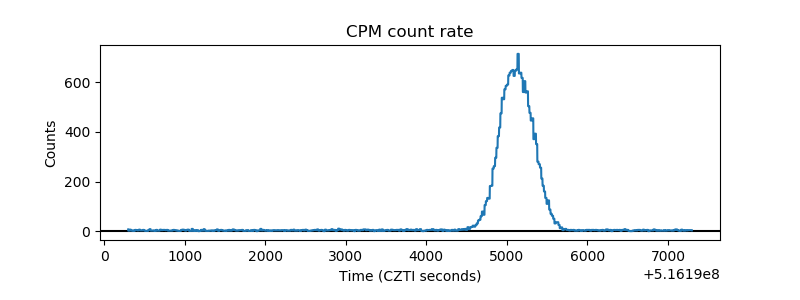

| _CPM_Rate |  |

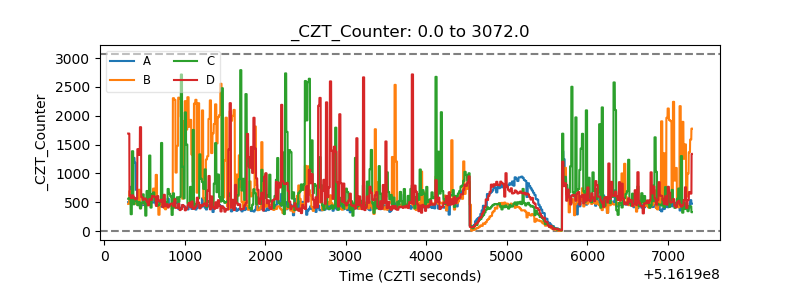

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

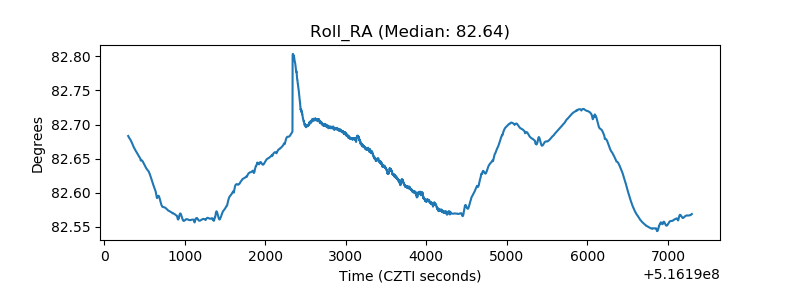

| _Roll_RA |  |

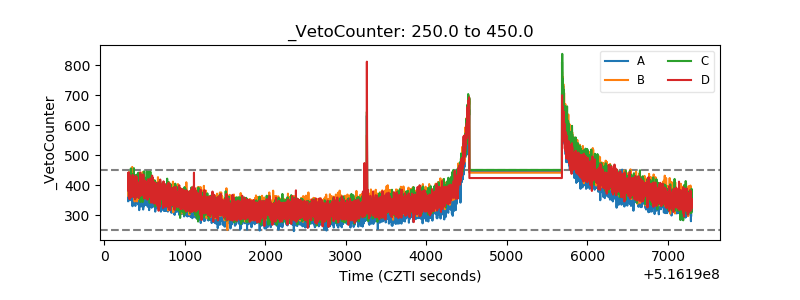

| Veto Counter |  |
