| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57463cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57463cztM0_level2_quad_clean.evt |
| Size (bytes) | 399,170,880 | 90,267,840 |
| Size | 380.7 MB | 86.1 MB |
| Events in quadrant A | 2,688,287 | 597,856 |
| Events in quadrant B | 3,228,915 | 634,625 |
| Events in quadrant C | 5,259,276 | 527,710 |
| Events in quadrant D | 3,113,892 | 537,410 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12643 | 1 |
| B | 0 | 13885 | 1 |
| C | 0 | 19890 | 1 |
| D | 0 | 13675 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6238 | 59 | 0.945816% |
| B | 6239 | 141 | 2.259978% |
| C | 6239 | 634 | 10.161885% |
| D | 6239 | 94 | 1.506652% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7183 | 6238 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7184 | 6239 | 32 | 32 | 0.45% | 0.51% |  |
| C | 7184 | 6239 | 395 | 395 | 5.50% | 6.33% |  |
| D | 7184 | 6239 | 37 | 37 | 0.52% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 26199 | 151.67 | 683 | 665 | 168.4 |
| A | 3 | 137 | 8306 | 45.39 | 683 | 665 | 168.4 |
| A | 13 | 254 | 7989 | 43.5 | 683 | 665 | 168.4 |
| B | 4 | 206 | 286997 | 1989.9 | 669 | 644 | 143.9 |
| B | 10 | 247 | 64519 | 443.88 | 669 | 644 | 143.9 |
| B | 10 | 16 | 53314 | 366.01 | 669 | 644 | 143.9 |
| C | 15 | 224 | 1755279 | 9997.97 | 640 | 634 | 175.5 |
| C | 1 | 16 | 280350 | 1593.82 | 640 | 634 | 175.5 |
| C | 6 | 13 | 229722 | 1305.34 | 640 | 634 | 175.5 |
| D | 8 | 240 | 127408 | 672.75 | 666 | 635 | 188.4 |
| D | 15 | 142 | 80755 | 425.18 | 666 | 635 | 188.4 |
| D | 2 | 153 | 46496 | 243.37 | 666 | 635 | 188.4 |

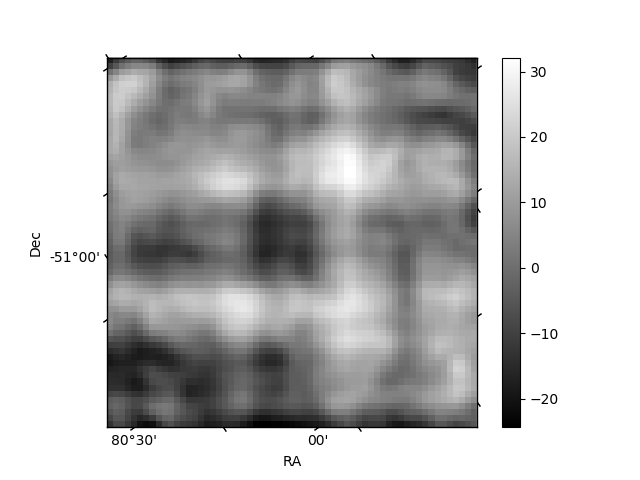

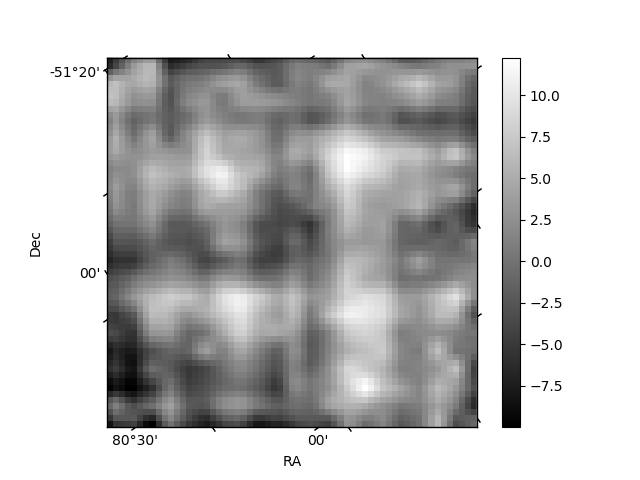

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

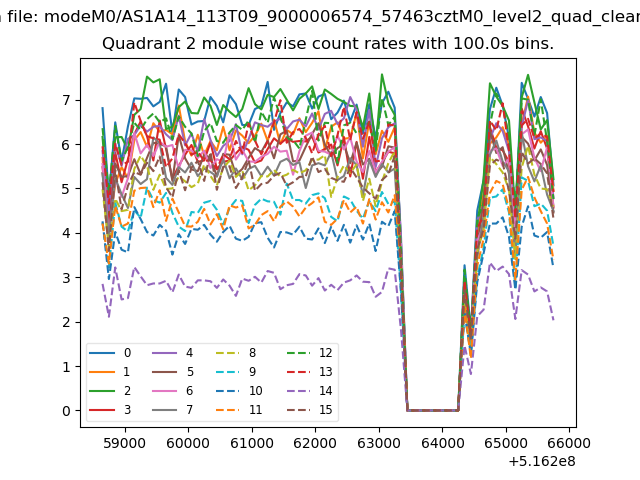

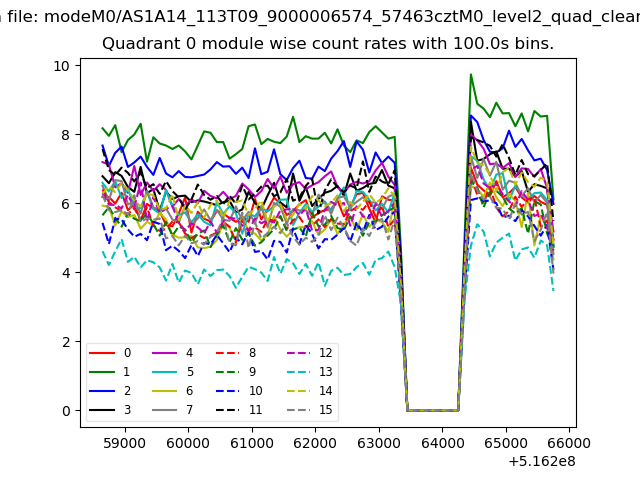

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

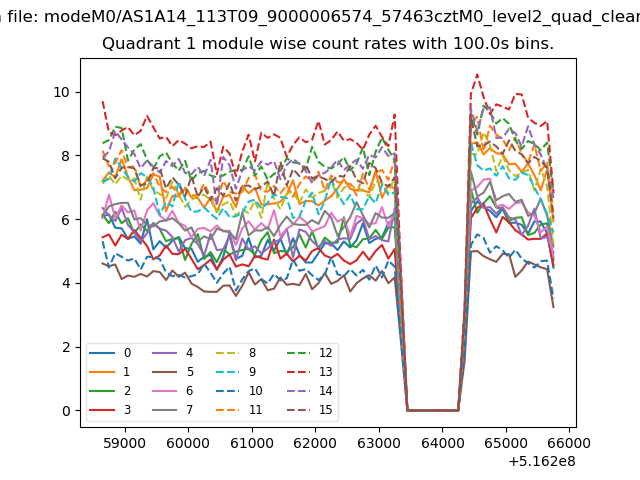

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

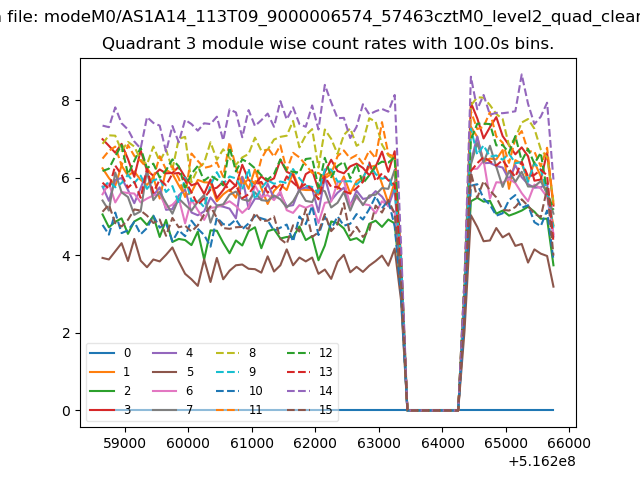

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

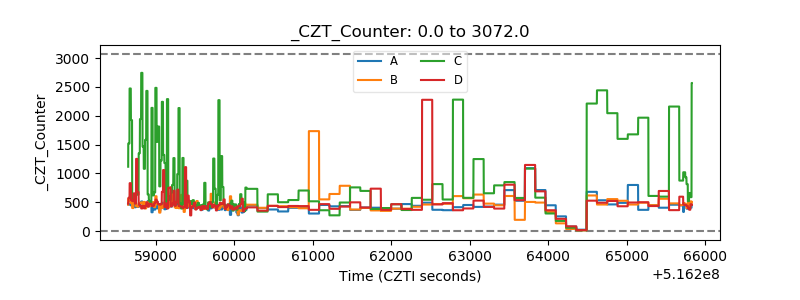

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

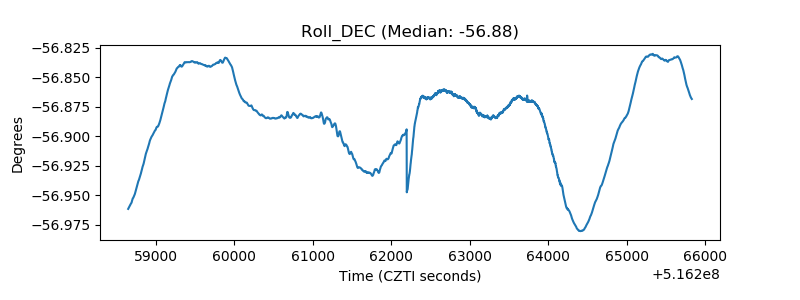

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
