| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57466cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57466cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,015,040 | 97,044,480 |
| Size | 454.0 MB | 92.5 MB |
| Events in quadrant A | 2,934,895 | 659,847 |
| Events in quadrant B | 4,584,270 | 642,993 |
| Events in quadrant C | 5,125,949 | 600,777 |
| Events in quadrant D | 4,467,902 | 579,740 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13392 | 1 |
| B | 0 | 17994 | 1 |
| C | 0 | 19795 | 1 |
| D | 0 | 17540 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6529 | 71 | 1.087456% |
| B | 6529 | 688 | 10.537601% |
| C | 6529 | 459 | 7.030173% |
| D | 6529 | 272 | 4.166028% |

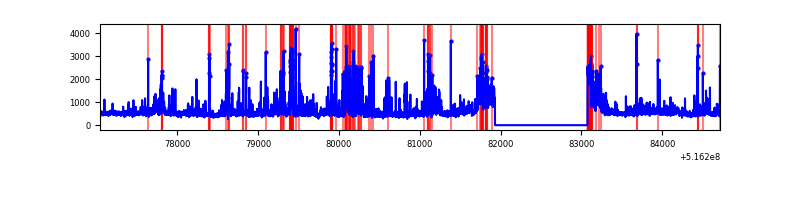

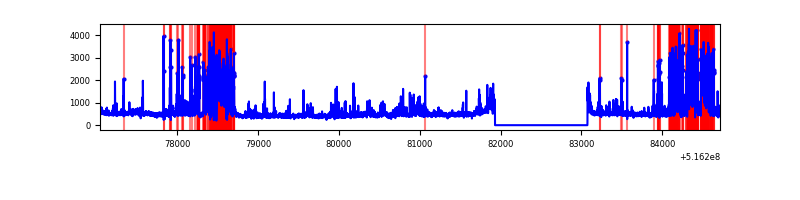

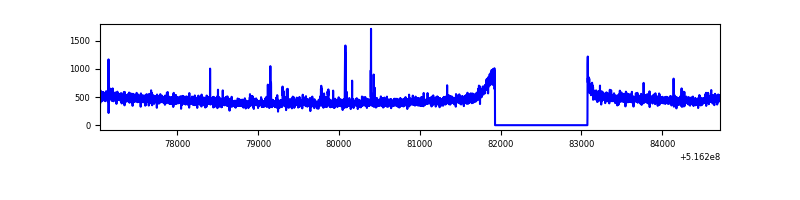

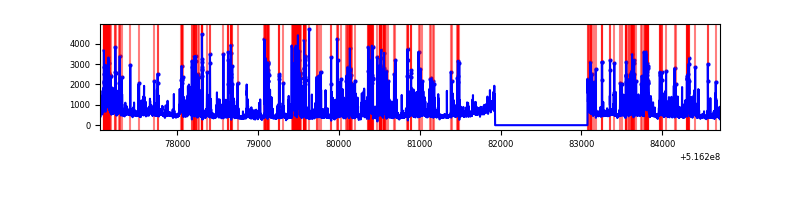

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7674 | 6529 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7674 | 6530 | 420 | 420 | 5.47% | 6.43% |  |
| C | 7674 | 6530 | 350 | 350 | 4.56% | 5.36% |  |
| D | 7674 | 6530 | 170 | 170 | 2.22% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 26640 | 144.49 | 738 | 720 | 179.4 |
| A | 13 | 153 | 15518 | 82.49 | 738 | 720 | 179.4 |
| A | 3 | 14 | 14270 | 75.53 | 738 | 720 | 179.4 |
| B | 4 | 206 | 1592433 | 10832.22 | 684 | 659 | 146.9 |
| B | 10 | 247 | 67525 | 455.03 | 684 | 659 | 146.9 |
| B | 8 | 234 | 46019 | 308.68 | 684 | 659 | 146.9 |
| C | 15 | 224 | 1657824 | 8789.68 | 687 | 681 | 188.5 |
| C | 14 | 254 | 364002 | 1927.1 | 687 | 681 | 188.5 |
| C | 14 | 245 | 108364 | 571.16 | 687 | 681 | 188.5 |
| D | 15 | 142 | 458953 | 2328.7 | 699 | 670 | 196.8 |
| D | 2 | 153 | 403522 | 2047.04 | 699 | 670 | 196.8 |
| D | 3 | 12 | 318859 | 1616.83 | 699 | 670 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

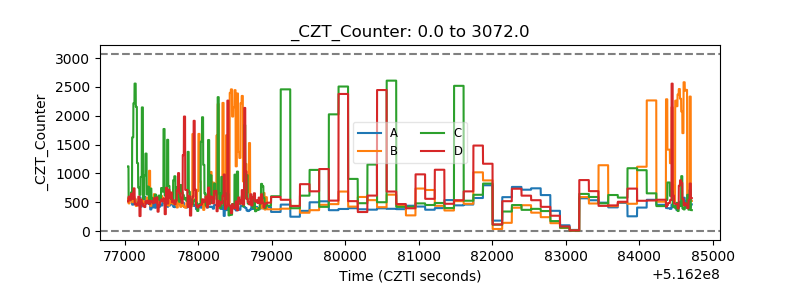

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

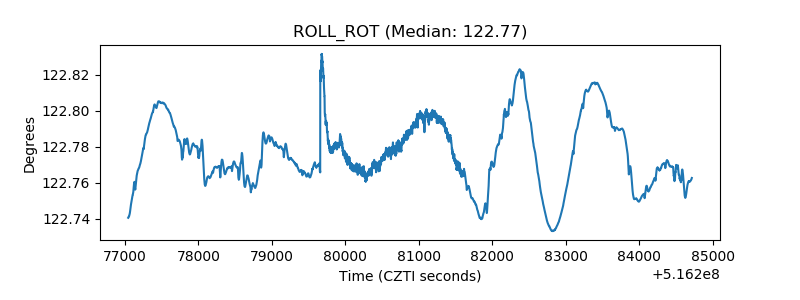

| _ROLL_ROT |  |

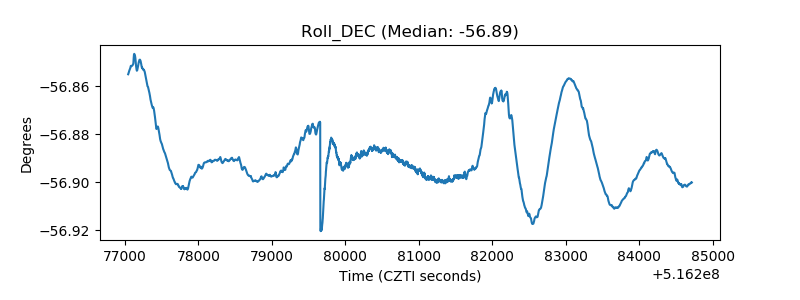

| _Roll_DEC |  |

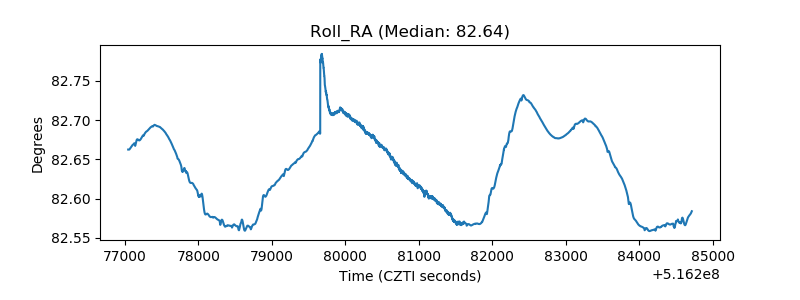

| _Roll_RA |  |
| Veto Counter |  |
