| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57479cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57479cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,223,771,200 | 562,320,000 |
| Size | 3.0 GB | 536.3 MB |
| Events in quadrant A | 20,471,402 | 3,794,390 |
| Events in quadrant B | 25,199,190 | 3,957,211 |
| Events in quadrant C | 33,998,727 | 3,385,841 |
| Events in quadrant D | 36,516,348 | 3,088,115 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 828 | 0 |
| B | 0 | 828 | 0 |
| C | 0 | 828 | 0 |
| D | 0 | 828 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 47 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90282 | 7 |
| B | 0 | 103171 | 14 |
| C | 0 | 129690 | 7 |
| D | 0 | 136913 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 40768 | 855 | 2.097233% |
| B | 40765 | 2259 | 5.541518% |
| C | 40768 | 3952 | 9.693878% |
| D | 40768 | 5273 | 12.934164% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 45746 | 41056 | 456 | 456 | 1.00% | 1.11% |  |
| B | 45746 | 41052 | 1026 | 1026 | 2.24% | 2.50% |  |
| C | 45746 | 41053 | 3168 | 3168 | 6.93% | 7.72% |  |
| D | 45746 | 41045 | 4869 | 4869 | 10.64% | 11.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2060880 | 1906.86 | 4421 | 4318 | 1078.5 |
| A | 7 | 64 | 572646 | 526.96 | 4421 | 4318 | 1078.5 |
| A | 8 | 9 | 237198 | 215.93 | 4421 | 4318 | 1078.5 |
| B | 4 | 206 | 4362856 | 4813.73 | 4295 | 4128 | 905.5 |
| B | 2 | 249 | 952675 | 1047.57 | 4295 | 4128 | 905.5 |
| B | 5 | 185 | 503869 | 551.91 | 4295 | 4128 | 905.5 |
| C | 15 | 224 | 14132844 | 12628.86 | 4133 | 4089 | 1118.8 |
| C | 12 | 254 | 1242464 | 1106.91 | 4133 | 4089 | 1118.8 |
| C | 14 | 254 | 1143291 | 1018.27 | 4133 | 4089 | 1118.8 |
| D | 15 | 142 | 14545681 | 12735.35 | 4058 | 3869 | 1141.8 |
| D | 2 | 249 | 3680315 | 3219.74 | 4058 | 3869 | 1141.8 |
| D | 7 | 96 | 499223 | 433.82 | 4058 | 3869 | 1141.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

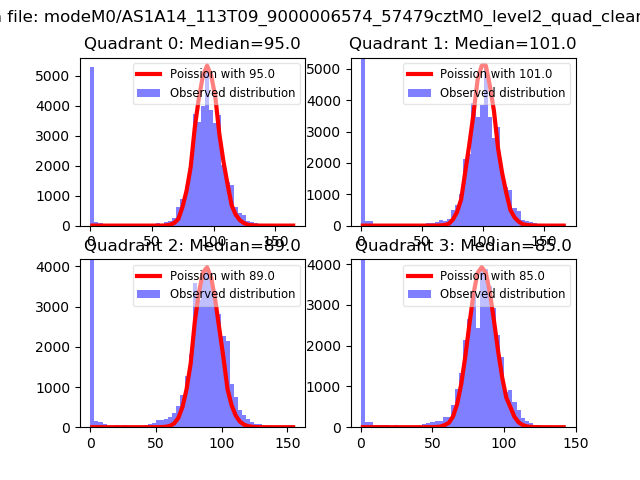

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

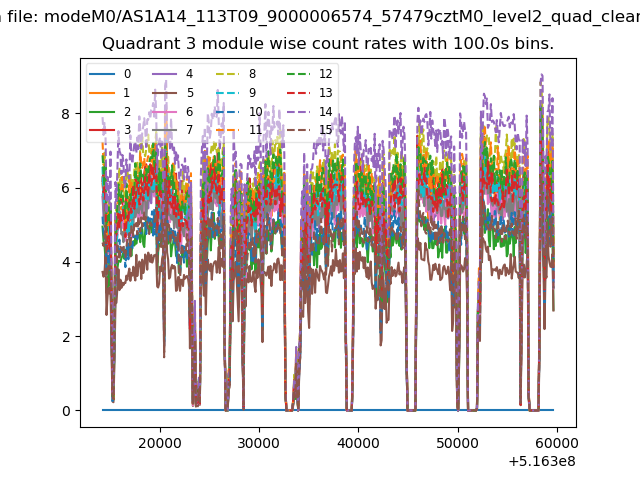

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

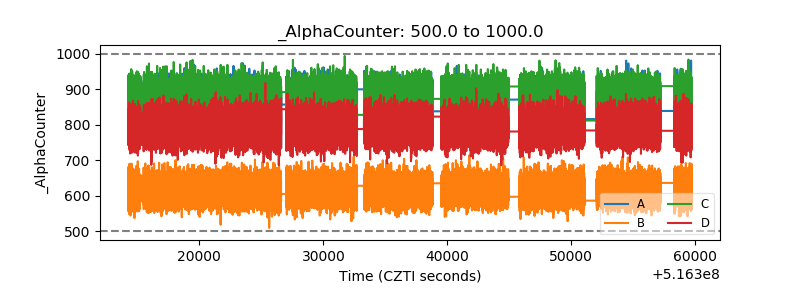

| Alpha Counter |  |

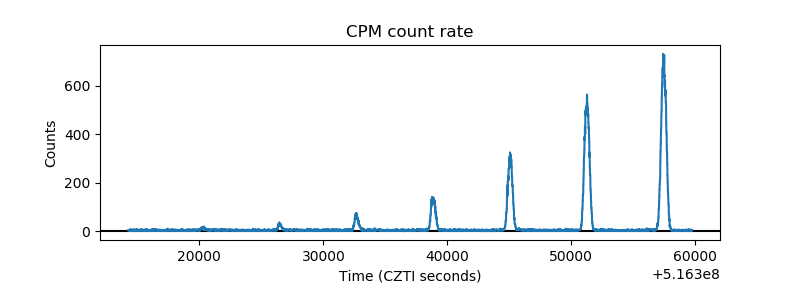

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

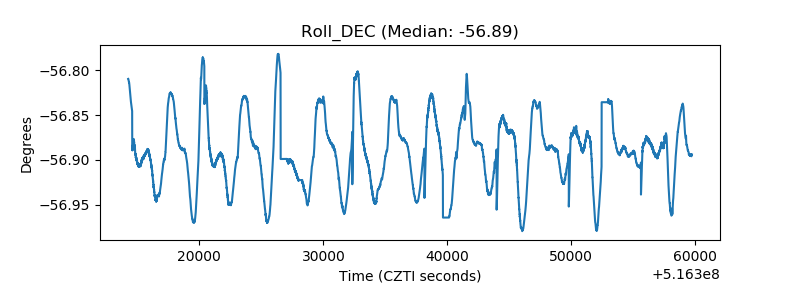

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
