| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57492cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57492cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,693,218,240 | 377,110,080 |
| Size | 1.6 GB | 359.6 MB |
| Events in quadrant A | 11,612,679 | 2,487,359 |
| Events in quadrant B | 15,214,286 | 2,615,248 |
| Events in quadrant C | 18,133,541 | 2,297,294 |
| Events in quadrant D | 15,644,956 | 2,176,028 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 544 | 0 |
| B | 0 | 544 | 0 |
| C | 0 | 544 | 0 |
| D | 0 | 544 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54848 | 4 |
| B | 0 | 64224 | 4 |
| C | 0 | 72753 | 4 |
| D | 0 | 65897 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 26775 | 119 | 0.444444% |
| B | 26775 | 883 | 3.297852% |
| C | 26775 | 1184 | 4.422035% |
| D | 26775 | 930 | 3.473389% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32343 | 27053 | 23 | 23 | 0.07% | 0.09% |  |
| B | 32343 | 27054 | 429 | 429 | 1.33% | 1.59% |  |
| C | 32343 | 27052 | 931 | 931 | 2.88% | 3.44% |  |
| D | 32343 | 27054 | 882 | 882 | 2.73% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 195030 | 272.42 | 2869 | 2798 | 705.7 |
| A | 13 | 248 | 82922 | 113.55 | 2869 | 2798 | 705.7 |
| A | 7 | 14 | 75602 | 103.17 | 2869 | 2798 | 705.7 |
| B | 4 | 206 | 2410886 | 4052.04 | 2807 | 2701 | 594.3 |
| B | 5 | 185 | 523741 | 876.71 | 2807 | 2701 | 594.3 |
| B | 0 | 213 | 269304 | 448.59 | 2807 | 2701 | 594.3 |
| C | 15 | 224 | 5860356 | 7880.99 | 2742 | 2712 | 743.3 |
| C | 14 | 254 | 388295 | 518.77 | 2742 | 2712 | 743.3 |
| C | 13 | 3 | 296859 | 395.75 | 2742 | 2712 | 743.3 |
| D | 15 | 142 | 2444964 | 3152.26 | 2746 | 2626 | 774.8 |
| D | 8 | 240 | 737746 | 948.8 | 2746 | 2626 | 774.8 |
| D | 7 | 96 | 589787 | 757.83 | 2746 | 2626 | 774.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

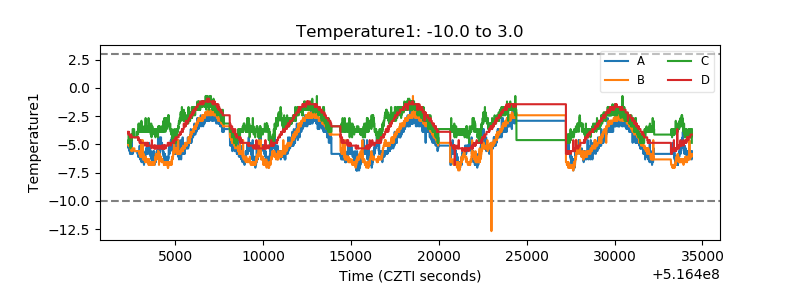

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

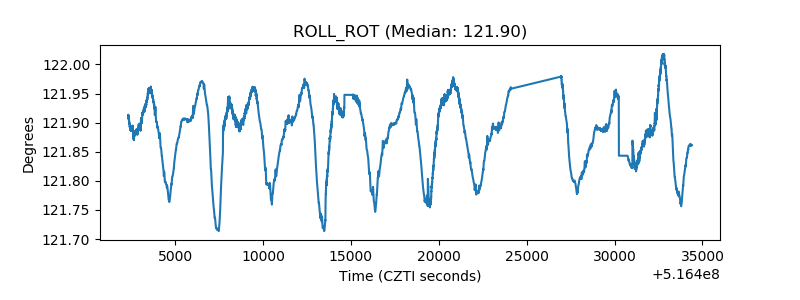

| _ROLL_ROT |  |

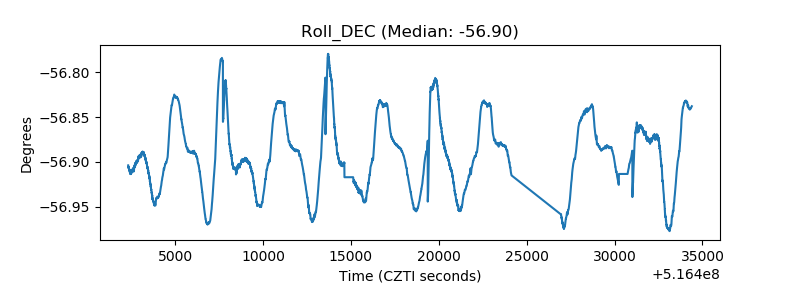

| _Roll_DEC |  |

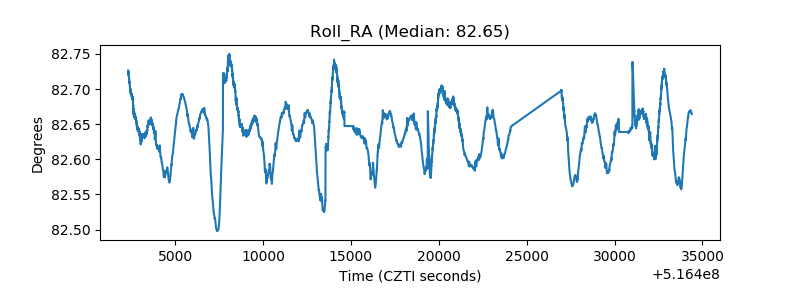

| _Roll_RA |  |

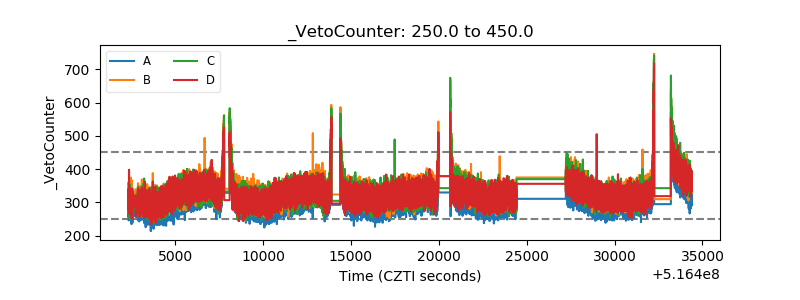

| Veto Counter |  |
