| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57495cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57495cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,418,880 | 83,373,120 |
| Size | 504.9 MB | 79.5 MB |
| Events in quadrant A | 2,797,421 | 585,365 |
| Events in quadrant B | 3,733,435 | 597,472 |
| Events in quadrant C | 9,222,017 | 409,924 |
| Events in quadrant D | 3,389,643 | 522,554 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12611 | 1 |
| B | 0 | 15180 | 1 |
| C | 0 | 31311 | 1 |
| D | 0 | 14119 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5854 | 101 | 1.725316% |
| B | 5854 | 390 | 6.662111% |
| C | 5854 | 2005 | 34.250085% |
| D | 5854 | 188 | 3.211479% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

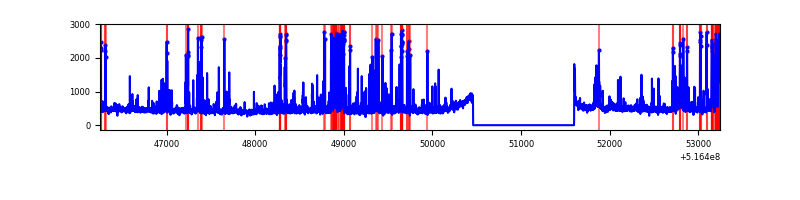

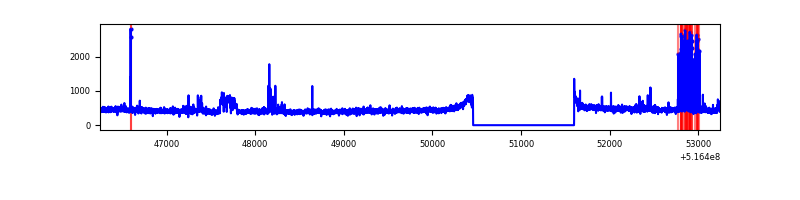

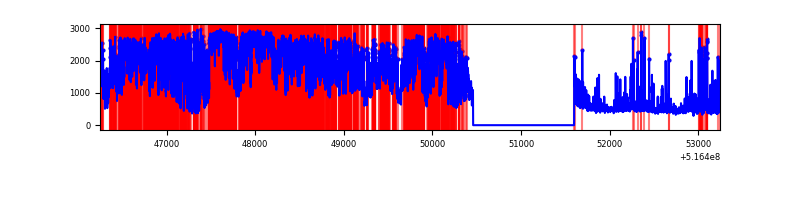

| A | 6993 | 5853 | 37 | 37 | 0.53% | 0.63% |  |
| B | 6993 | 5853 | 223 | 223 | 3.19% | 3.81% |  |
| C | 6993 | 5853 | 2218 | 2218 | 31.72% | 37.90% |  |
| D | 6993 | 5853 | 152 | 152 | 2.17% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 153 | 229584 | 1428.75 | 650 | 634 | 160.2 |
| A | 7 | 14 | 19985 | 120.76 | 650 | 634 | 160.2 |
| A | 13 | 248 | 16624 | 99.78 | 650 | 634 | 160.2 |
| B | 4 | 206 | 847943 | 6388.7 | 618 | 596 | 132.6 |
| B | 5 | 185 | 126344 | 948.1 | 618 | 596 | 132.6 |
| B | 10 | 247 | 98562 | 738.63 | 618 | 596 | 132.6 |
| C | 9 | 38 | 4875064 | 31782.45 | 558 | 552 | 153.4 |
| C | 15 | 224 | 1244606 | 8111.39 | 558 | 552 | 153.4 |
| C | 14 | 254 | 483481 | 3148.76 | 558 | 552 | 153.4 |
| D | 8 | 240 | 414482 | 2325.63 | 628 | 597 | 178.0 |
| D | 3 | 12 | 152319 | 852.53 | 628 | 597 | 178.0 |
| D | 15 | 201 | 86104 | 480.47 | 628 | 597 | 178.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

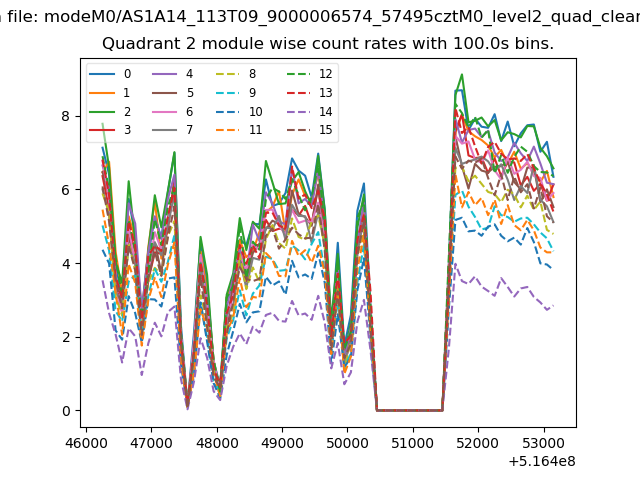

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

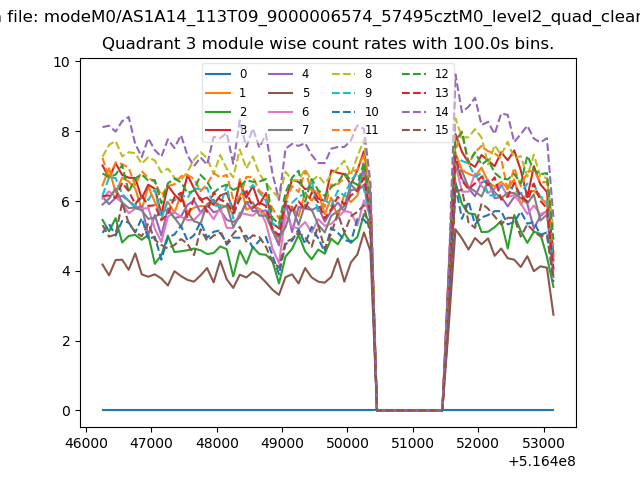

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

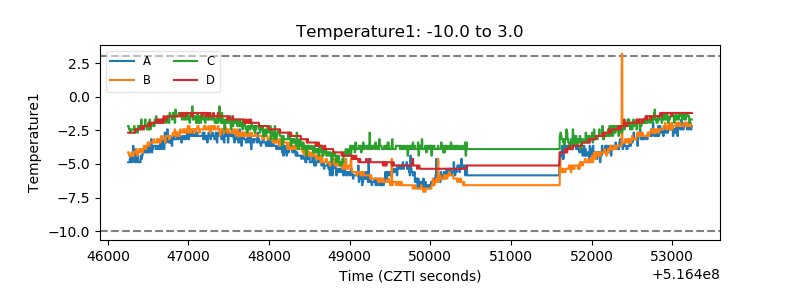

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

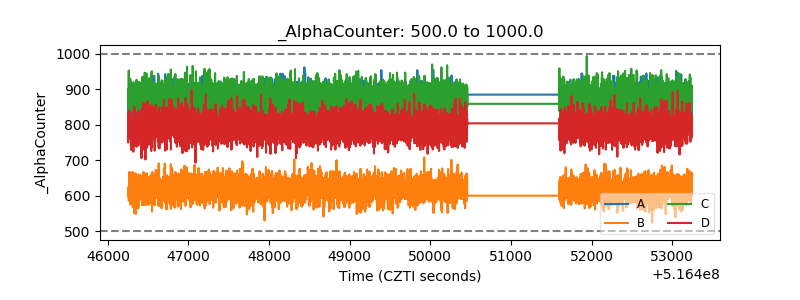

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
