| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57507cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57507cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,571,200 | 89,426,880 |
| Size | 458.3 MB | 85.3 MB |
| Events in quadrant A | 3,313,087 | 587,874 |
| Events in quadrant B | 3,295,498 | 643,260 |
| Events in quadrant C | 5,051,946 | 552,766 |
| Events in quadrant D | 5,645,077 | 489,503 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14405 | 1 |
| B | 0 | 13890 | 1 |
| C | 0 | 19275 | 1 |
| D | 0 | 21092 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6225 | 230 | 3.694779% |
| B | 6225 | 117 | 1.879518% |
| C | 6225 | 450 | 7.228916% |
| D | 6225 | 764 | 12.273092% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7225 | 6226 | 159 | 159 | 2.20% | 2.55% |  |
| B | 7225 | 6226 | 29 | 29 | 0.40% | 0.47% |  |
| C | 7225 | 6226 | 280 | 280 | 3.88% | 4.50% |  |
| D | 7225 | 6226 | 653 | 653 | 9.04% | 10.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 401997 | 2416.9 | 678 | 661 | 166.1 |
| A | 13 | 248 | 258068 | 1550.14 | 678 | 661 | 166.1 |
| A | 4 | 3 | 13110 | 74.97 | 678 | 661 | 166.1 |
| B | 4 | 206 | 433880 | 3016.5 | 670 | 644 | 143.6 |
| B | 7 | 252 | 56936 | 391.95 | 670 | 644 | 143.6 |
| B | 0 | 213 | 44135 | 302.82 | 670 | 644 | 143.6 |
| C | 15 | 224 | 2150030 | 12064.48 | 651 | 644 | 178.2 |
| C | 12 | 252 | 248300 | 1390.09 | 651 | 644 | 178.2 |
| C | 9 | 237 | 39280 | 216.86 | 651 | 644 | 178.2 |
| D | 8 | 240 | 983070 | 5487.36 | 638 | 611 | 179.0 |
| D | 15 | 142 | 955798 | 5335.04 | 638 | 611 | 179.0 |
| D | 2 | 120 | 954815 | 5329.55 | 638 | 611 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

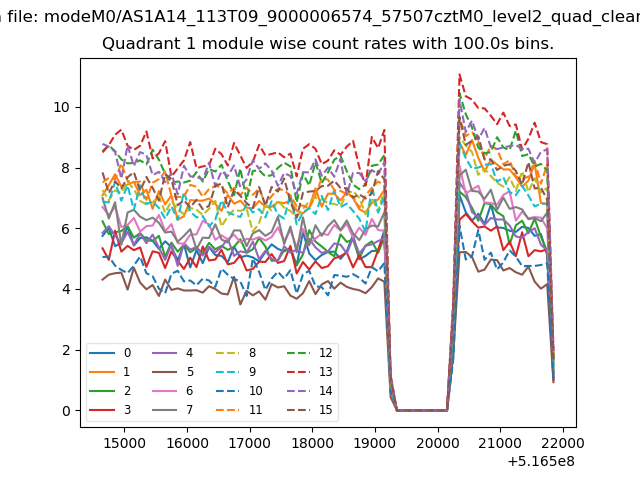

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

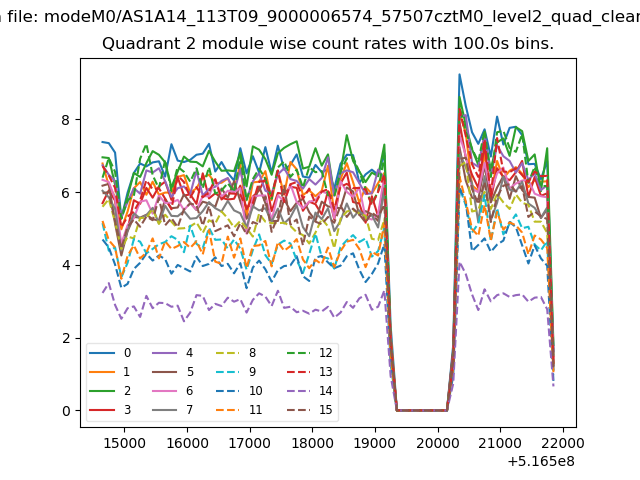

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

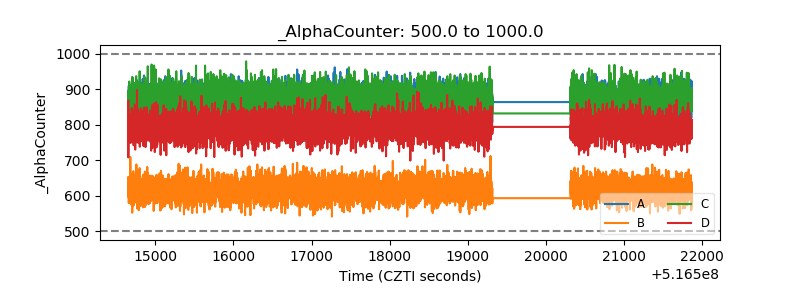

| Alpha Counter |  |
| _CPM_Rate |  |

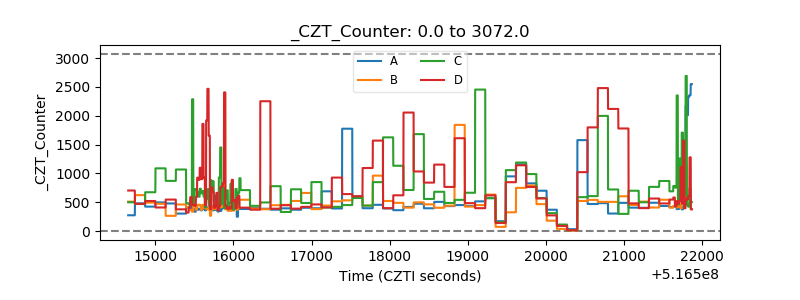

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

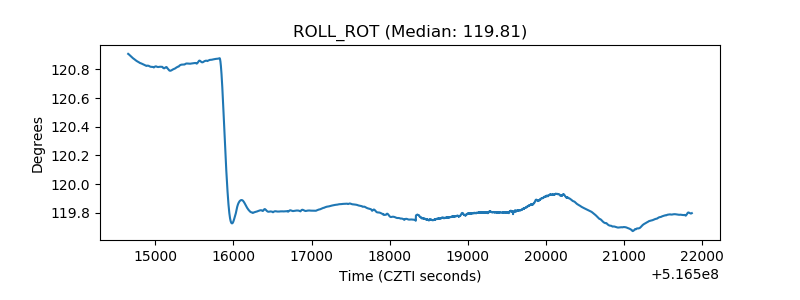

| _ROLL_ROT |  |
| _Roll_DEC |  |

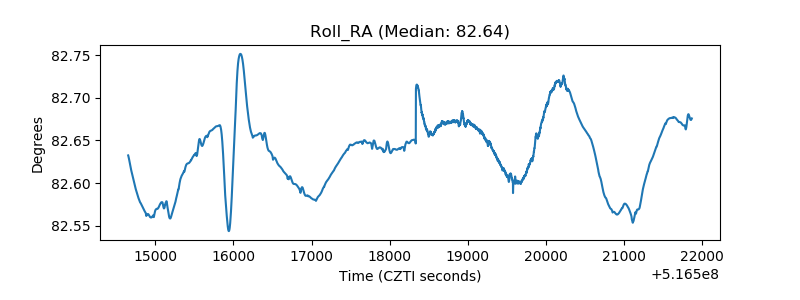

| _Roll_RA |  |
| Veto Counter |  |
