| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57508cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57508cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,240,793,280 | 229,847,040 |
| Size | 1.2 GB | 219.2 MB |
| Events in quadrant A | 8,623,943 | 1,516,225 |
| Events in quadrant B | 8,739,832 | 1,674,733 |
| Events in quadrant C | 12,261,408 | 1,439,102 |
| Events in quadrant D | 15,043,249 | 1,204,840 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 330 | 0 |
| B | 0 | 330 | 0 |
| C | 0 | 330 | 0 |
| D | 0 | 330 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37524 | 3 |
| B | 0 | 36784 | 3 |
| C | 0 | 47735 | 3 |
| D | 0 | 55929 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16305 | 579 | 3.551058% |
| B | 16305 | 280 | 1.717265% |
| C | 16306 | 1065 | 6.531338% |
| D | 16306 | 2433 | 14.920888% |

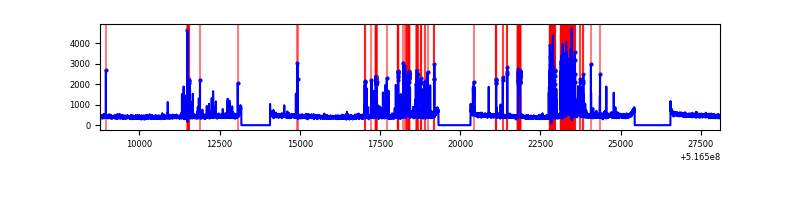

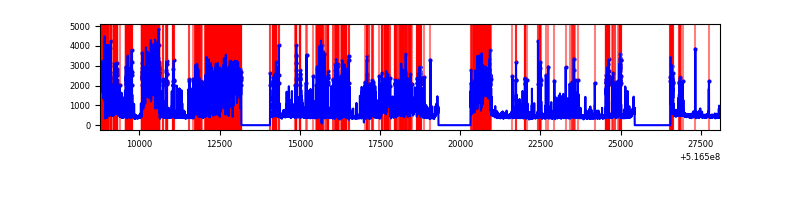

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19316 | 16308 | 375 | 375 | 1.94% | 2.30% |  |
| B | 19316 | 16308 | 62 | 62 | 0.32% | 0.38% |  |
| C | 19317 | 16309 | 680 | 680 | 3.52% | 4.17% |  |
| D | 19317 | 16309 | 2146 | 2146 | 11.11% | 13.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 1201619 | 2791.35 | 1766 | 1719 | 429.9 |
| A | 0 | 12 | 418579 | 969.75 | 1766 | 1719 | 429.9 |
| A | 3 | 128 | 73656 | 167.35 | 1766 | 1719 | 429.9 |
| B | 4 | 206 | 1178013 | 3164.65 | 1748 | 1681 | 371.7 |
| B | 5 | 185 | 166898 | 444.48 | 1748 | 1681 | 371.7 |
| B | 7 | 252 | 141731 | 376.77 | 1748 | 1681 | 371.7 |
| C | 15 | 224 | 4928508 | 10715.2 | 1695 | 1672 | 459.8 |
| C | 12 | 252 | 341850 | 739.84 | 1695 | 1672 | 459.8 |
| C | 6 | 223 | 73313 | 155.81 | 1695 | 1672 | 459.8 |
| D | 2 | 120 | 3175953 | 6984.5 | 1628 | 1555 | 454.5 |
| D | 15 | 142 | 2939491 | 6464.22 | 1628 | 1555 | 454.5 |
| D | 8 | 240 | 1881617 | 4136.62 | 1628 | 1555 | 454.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

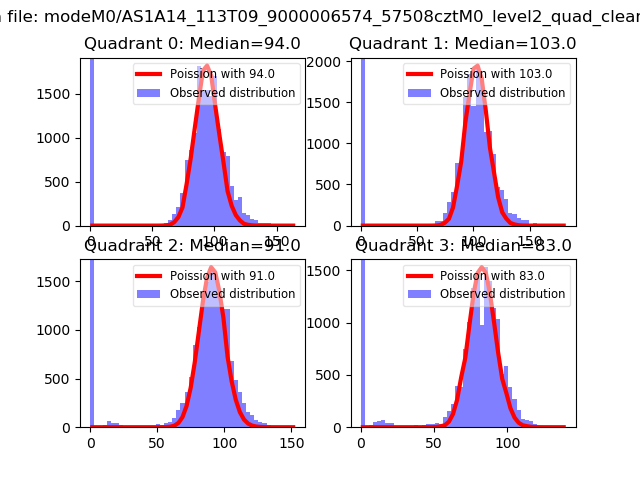

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

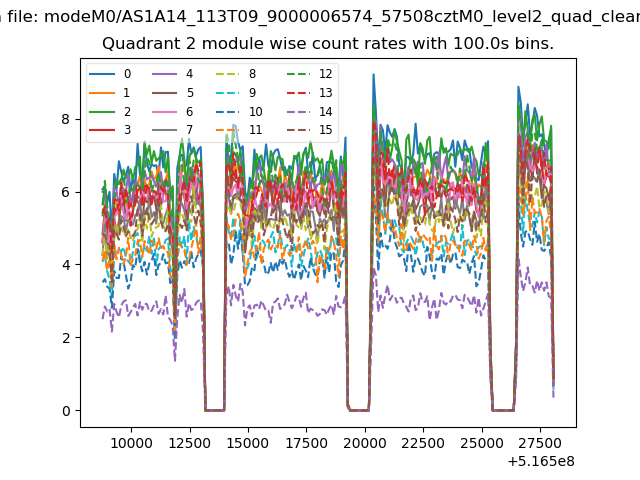

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

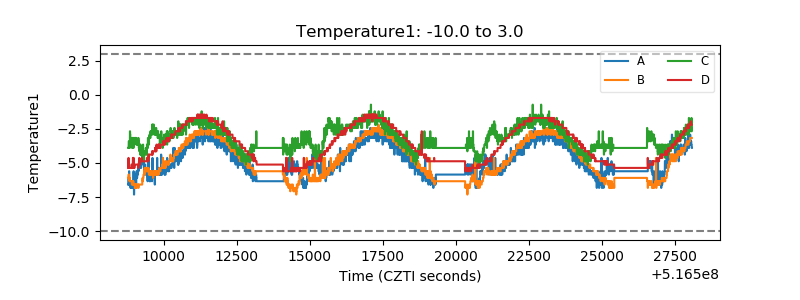

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

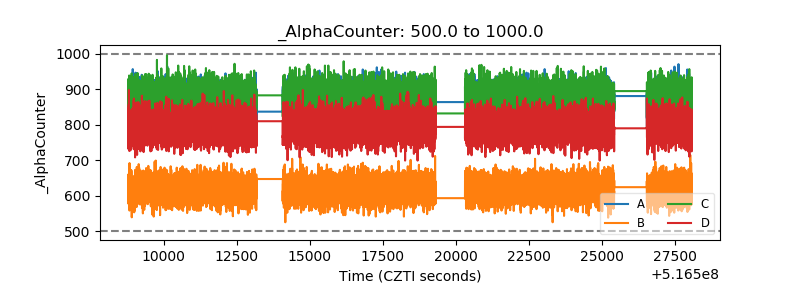

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

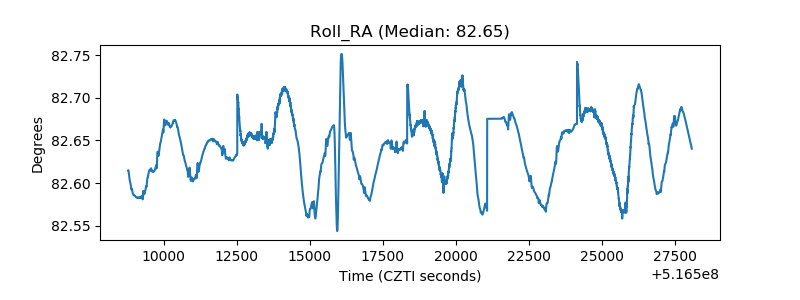

| _Roll_RA |  |
| Veto Counter |  |
