| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57510cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57510cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,889,600 | 99,570,240 |
| Size | 426.2 MB | 95.0 MB |
| Events in quadrant A | 3,721,268 | 659,243 |
| Events in quadrant B | 3,796,296 | 702,496 |
| Events in quadrant C | 4,187,163 | 615,906 |
| Events in quadrant D | 4,329,247 | 581,236 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15644 | 1 |
| B | 0 | 15389 | 1 |
| C | 0 | 17093 | 1 |
| D | 0 | 17145 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6545 | 99 | 1.512605% |
| B | 6545 | 103 | 1.573720% |
| C | 6546 | 272 | 4.155209% |
| D | 6546 | 294 | 4.491292% |

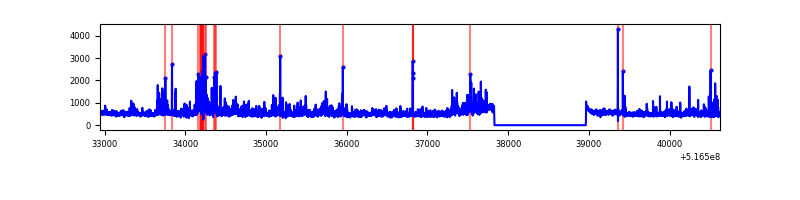

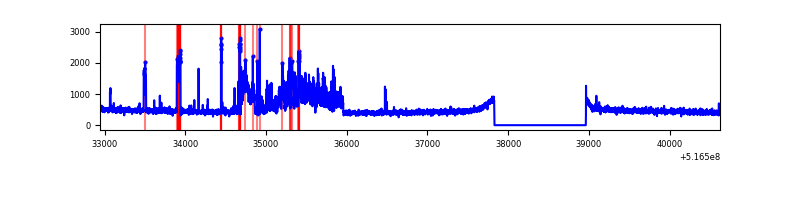

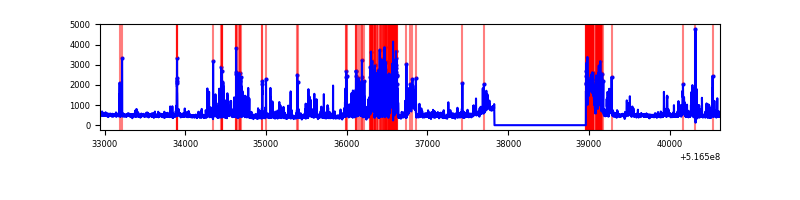

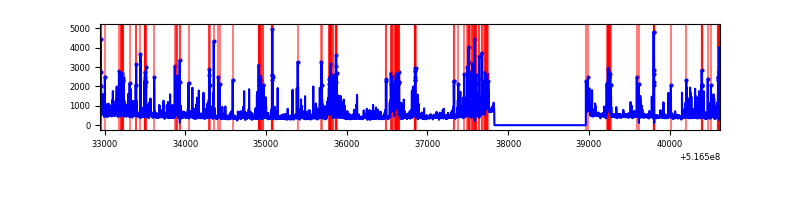

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6545 | 45 | 45 | 0.59% | 0.69% |  |
| B | 7679 | 6545 | 25 | 25 | 0.33% | 0.38% |  |
| C | 7681 | 6547 | 183 | 183 | 2.38% | 2.80% |  |
| D | 7681 | 6547 | 219 | 219 | 2.85% | 3.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 12 | 814292 | 4551.67 | 733 | 716 | 178.7 |
| A | 7 | 64 | 34941 | 191.48 | 733 | 716 | 178.7 |
| A | 3 | 128 | 20237 | 109.21 | 733 | 716 | 178.7 |
| B | 4 | 206 | 593725 | 3905.36 | 713 | 686 | 151.9 |
| B | 5 | 185 | 86178 | 562.99 | 713 | 686 | 151.9 |
| B | 10 | 247 | 70858 | 462.1 | 713 | 686 | 151.9 |
| C | 15 | 224 | 1187068 | 6223.44 | 694 | 688 | 190.6 |
| C | 14 | 254 | 144382 | 753.78 | 694 | 688 | 190.6 |
| C | 12 | 249 | 78059 | 405.87 | 694 | 688 | 190.6 |
| D | 2 | 31 | 634284 | 3162.9 | 705 | 672 | 200.3 |
| D | 15 | 142 | 461460 | 2300.19 | 705 | 672 | 200.3 |
| D | 8 | 240 | 196330 | 976.7 | 705 | 672 | 200.3 |

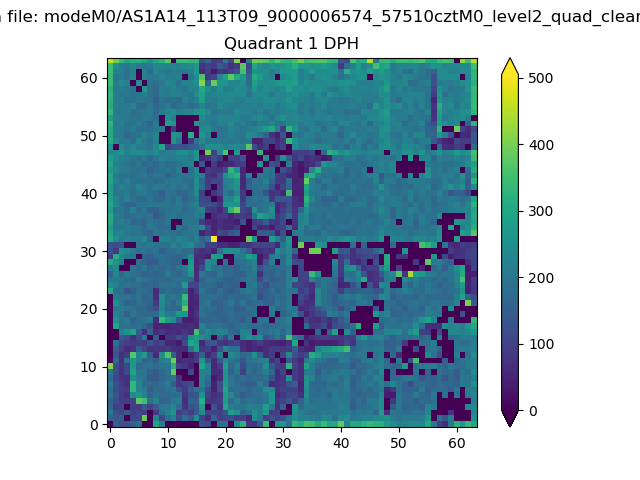

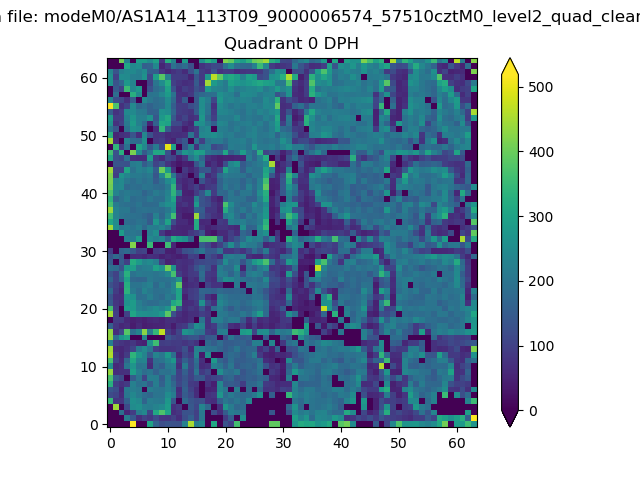

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

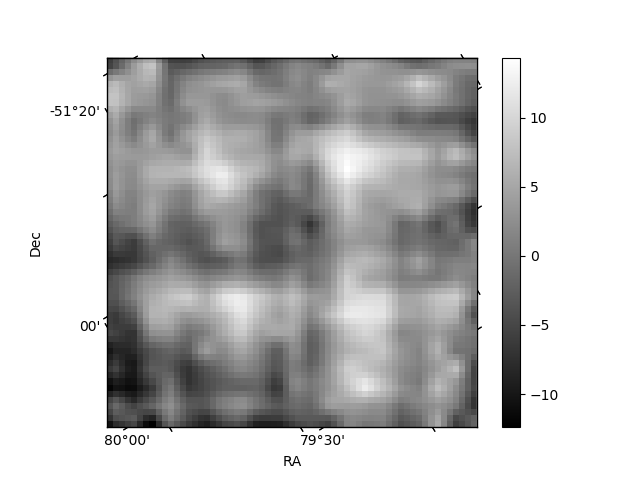

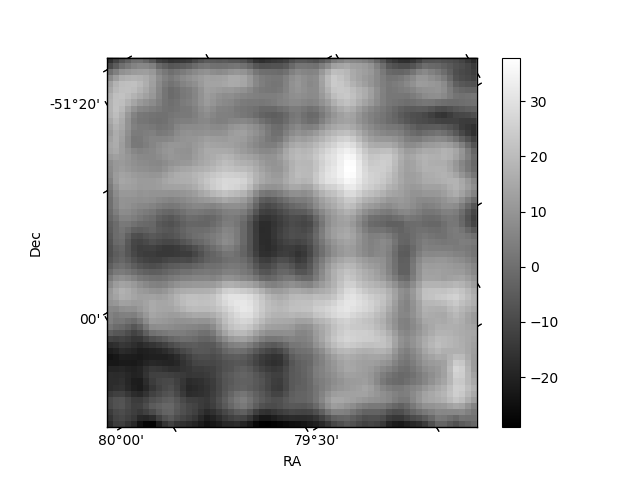

| Plot type | Count rate plots | Images |
|---|---|---|

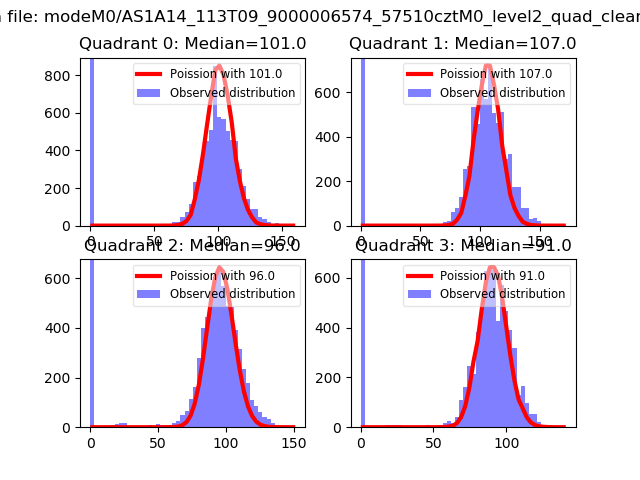

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

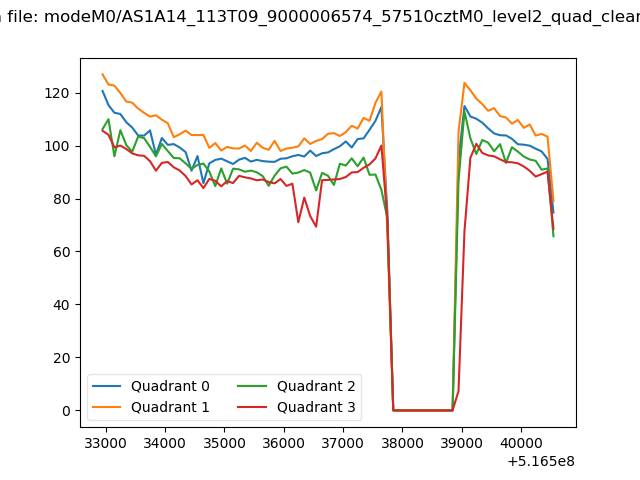

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

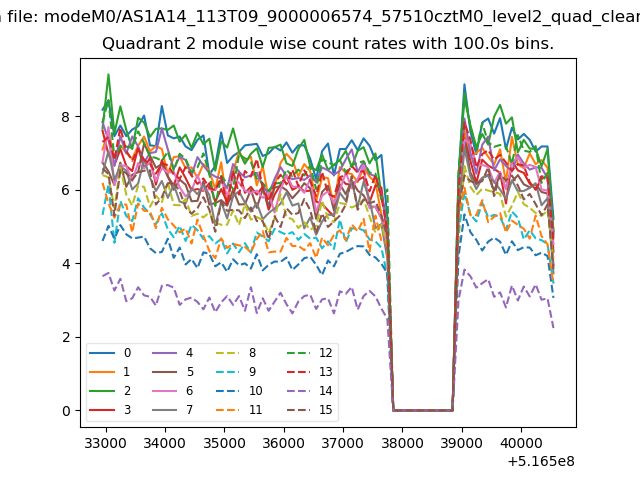

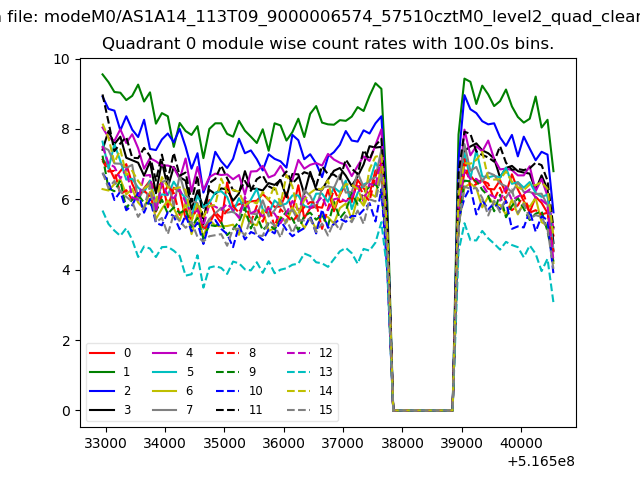

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

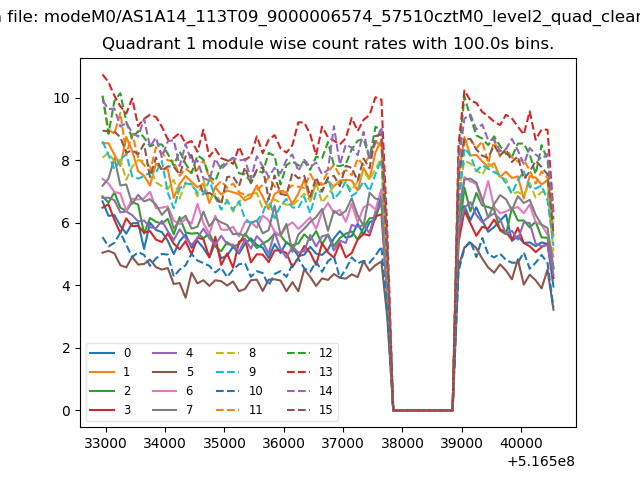

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

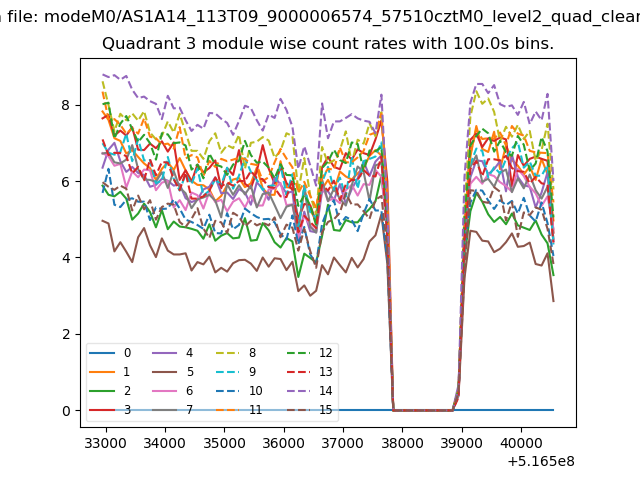

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

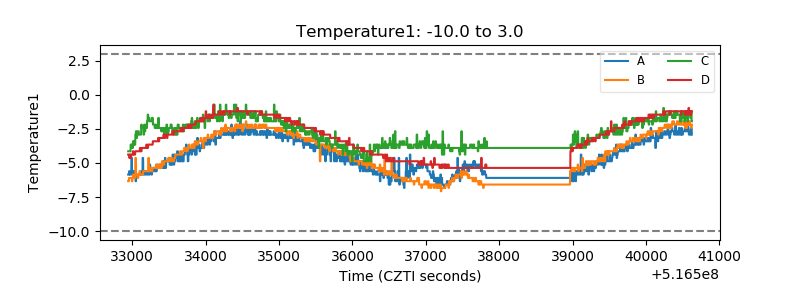

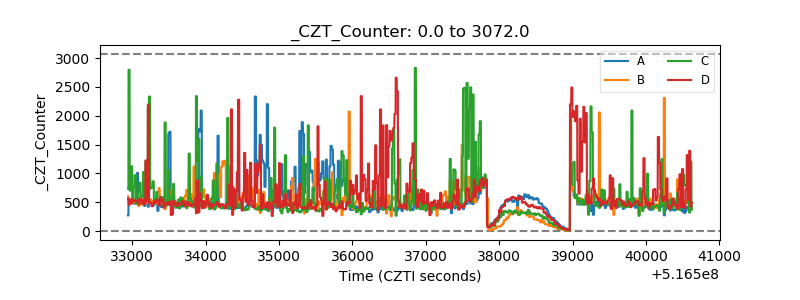

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

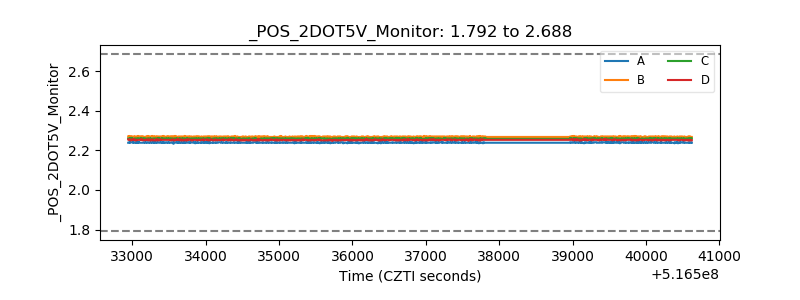

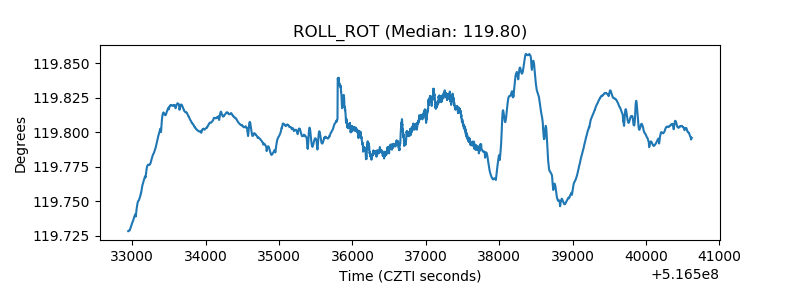

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

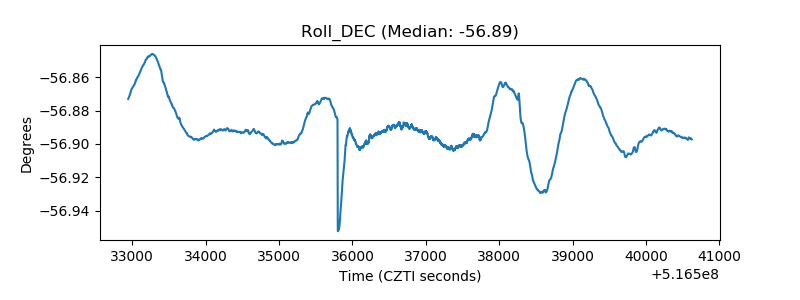

| _Roll_DEC |  |

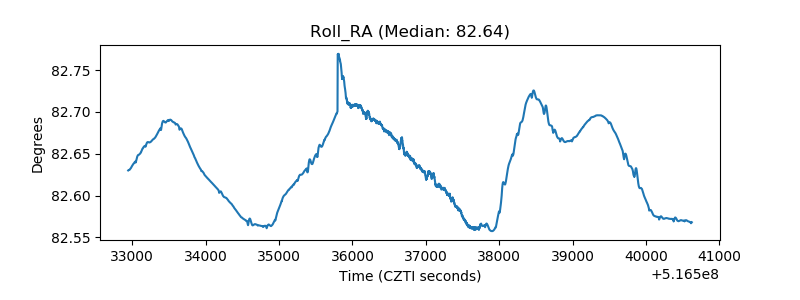

| _Roll_RA |  |

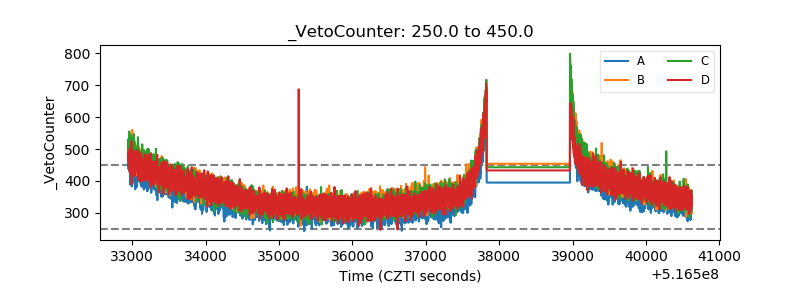

| Veto Counter |  |
