| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57512cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57512cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,716,160 | 96,891,840 |
| Size | 435.6 MB | 92.4 MB |
| Events in quadrant A | 2,928,436 | 643,831 |
| Events in quadrant B | 3,557,640 | 681,547 |
| Events in quadrant C | 5,604,208 | 583,541 |
| Events in quadrant D | 4,294,937 | 558,007 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13825 | 1 |
| B | 0 | 15062 | 2 |
| C | 0 | 21422 | 1 |
| D | 0 | 17360 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6699 | 78 | 1.164353% |
| B | 6699 | 118 | 1.761457% |
| C | 6699 | 531 | 7.926556% |
| D | 6699 | 405 | 6.045678% |

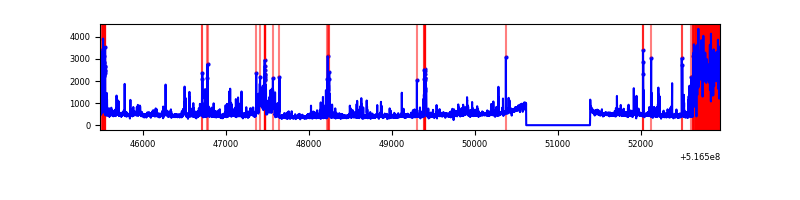

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 6700 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7469 | 6700 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7469 | 6700 | 396 | 396 | 5.30% | 5.91% |  |
| D | 7469 | 6700 | 333 | 333 | 4.46% | 4.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 36837 | 204.23 | 729 | 710 | 176.9 |
| A | 7 | 14 | 22585 | 123.66 | 729 | 710 | 176.9 |
| A | 3 | 11 | 14116 | 75.79 | 729 | 710 | 176.9 |
| B | 4 | 206 | 470059 | 3063.18 | 711 | 685 | 153.2 |
| B | 4 | 201 | 55714 | 359.12 | 711 | 685 | 153.2 |
| B | 0 | 153 | 36762 | 235.44 | 711 | 685 | 153.2 |
| C | 15 | 224 | 2191441 | 11928.8 | 675 | 668 | 183.7 |
| C | 7 | 2 | 588623 | 3201.43 | 675 | 668 | 183.7 |
| C | 6 | 223 | 47792 | 256.59 | 675 | 668 | 183.7 |
| D | 8 | 240 | 907824 | 4707.15 | 686 | 656 | 192.7 |
| D | 7 | 96 | 246555 | 1275.93 | 686 | 656 | 192.7 |
| D | 3 | 12 | 95943 | 494.43 | 686 | 656 | 192.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

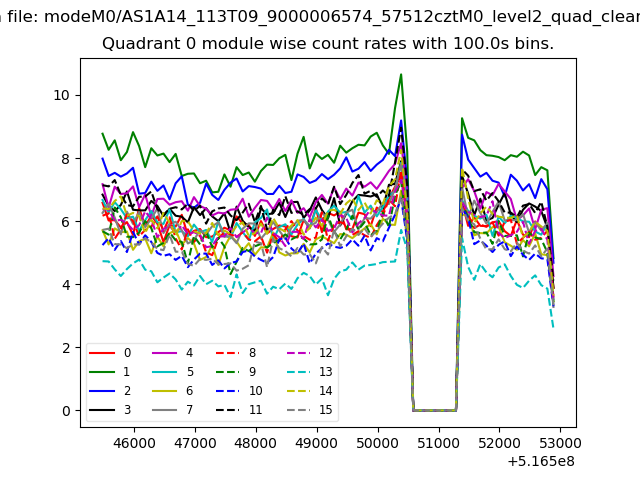

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

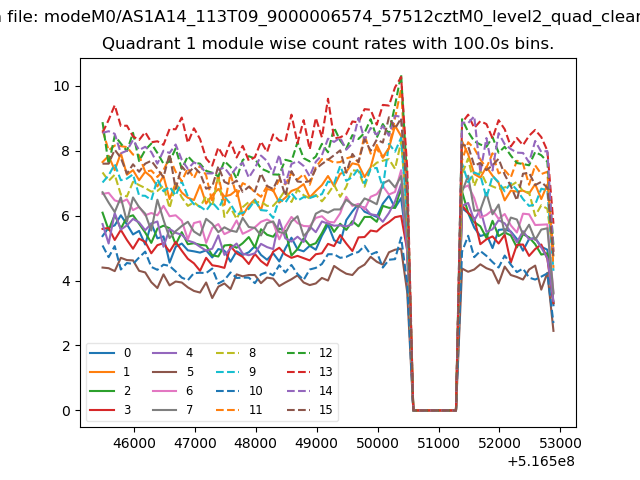

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

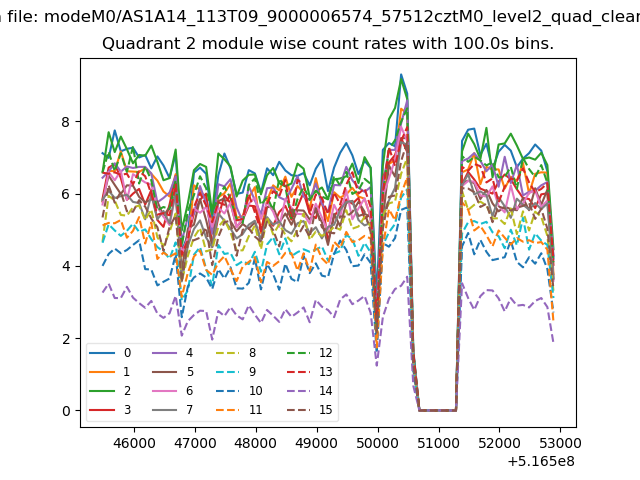

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

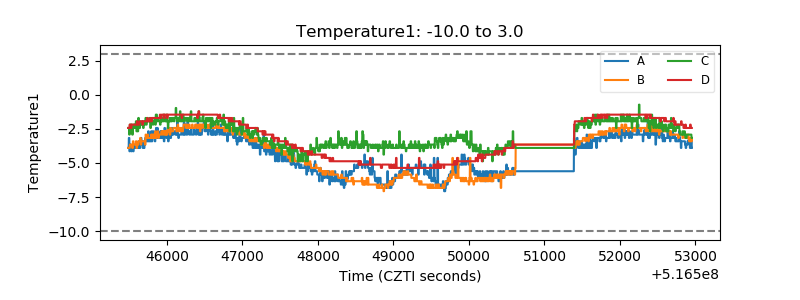

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

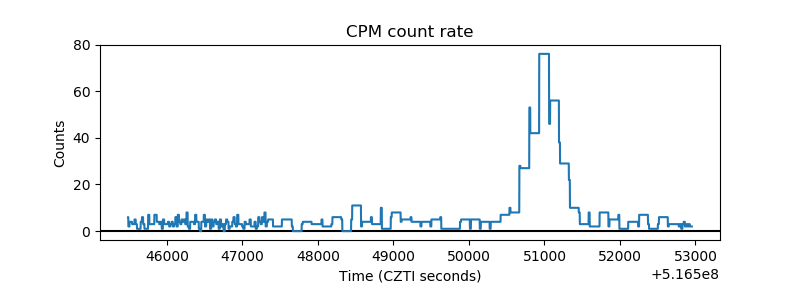

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

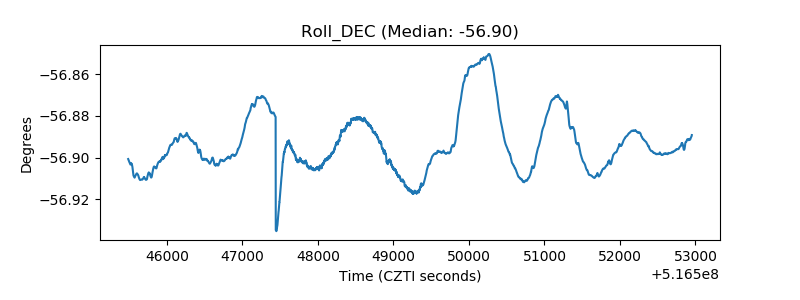

| _Roll_DEC |  |

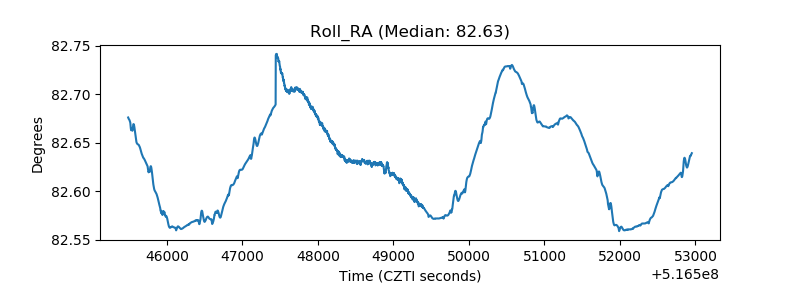

| _Roll_RA |  |
| Veto Counter |  |
