| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57539cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57539cztM0_level2_quad_clean.evt |
| Size (bytes) | 386,870,400 | 92,859,840 |
| Size | 368.9 MB | 88.6 MB |
| Events in quadrant A | 3,121,355 | 606,626 |
| Events in quadrant B | 3,038,570 | 656,940 |
| Events in quadrant C | 3,745,229 | 578,520 |
| Events in quadrant D | 3,935,549 | 539,189 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13788 | 1 |
| B | 0 | 13198 | 1 |
| C | 0 | 15560 | 1 |
| D | 0 | 15816 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6167 | 108 | 1.751257% |
| B | 6168 | 54 | 0.875486% |
| C | 6168 | 211 | 3.420882% |
| D | 6168 | 232 | 3.761349% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

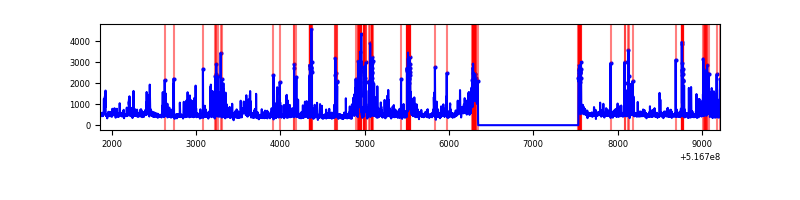

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7357 | 6168 | 85 | 85 | 1.16% | 1.38% |  |
| B | 7358 | 6169 | 18 | 18 | 0.24% | 0.29% |  |
| C | 7358 | 6169 | 154 | 154 | 2.09% | 2.50% |  |
| D | 7358 | 6169 | 177 | 177 | 2.41% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 347989 | 2099.76 | 673 | 654 | 165.4 |
| A | 13 | 248 | 86459 | 518.72 | 673 | 654 | 165.4 |
| A | 3 | 14 | 42457 | 252.71 | 673 | 654 | 165.4 |
| B | 4 | 206 | 133088 | 939.21 | 660 | 636 | 141.0 |
| B | 10 | 247 | 98725 | 695.55 | 660 | 636 | 141.0 |
| B | 5 | 185 | 40886 | 285.41 | 660 | 636 | 141.0 |
| C | 15 | 224 | 916632 | 5170.08 | 645 | 637 | 177.2 |
| C | 6 | 223 | 95178 | 533.61 | 645 | 637 | 177.2 |
| C | 10 | 22 | 61433 | 343.15 | 645 | 637 | 177.2 |
| D | 15 | 94 | 499740 | 2698.5 | 646 | 614 | 185.0 |
| D | 15 | 142 | 200881 | 1082.73 | 646 | 614 | 185.0 |
| D | 2 | 31 | 164503 | 886.06 | 646 | 614 | 185.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

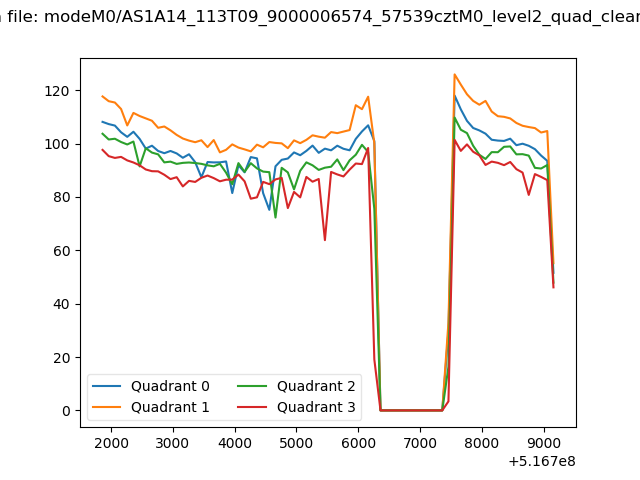

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

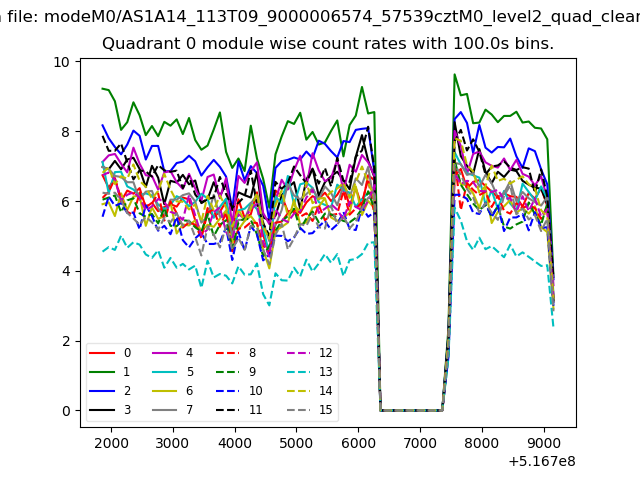

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

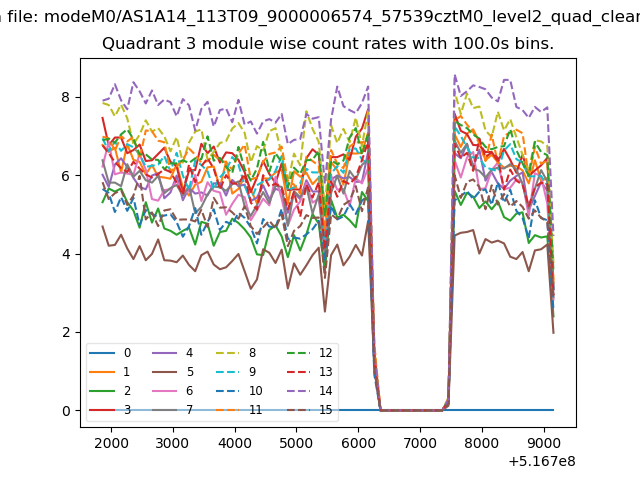

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

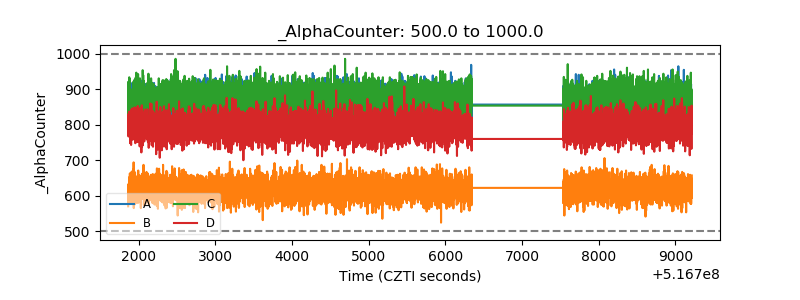

| Alpha Counter |  |

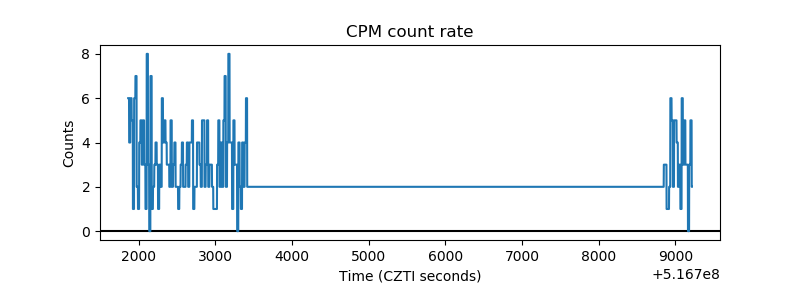

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

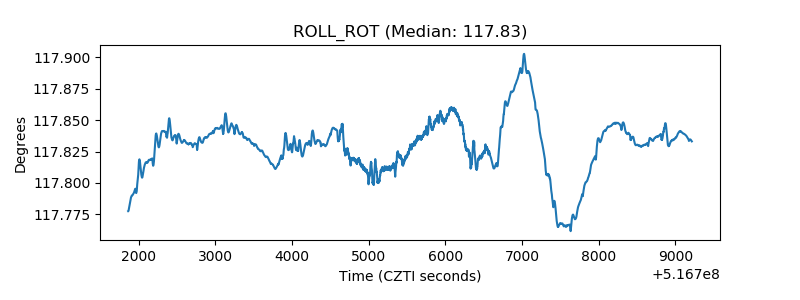

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

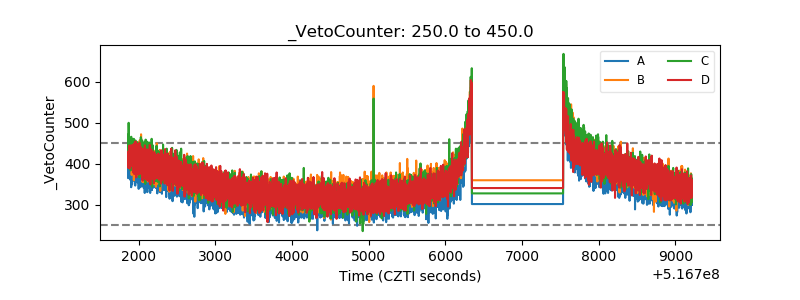

| Veto Counter |  |
