| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57540cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57540cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,355,200 | 90,132,480 |
| Size | 398.0 MB | 86.0 MB |
| Events in quadrant A | 3,310,007 | 593,572 |
| Events in quadrant B | 3,043,180 | 640,600 |
| Events in quadrant C | 4,651,906 | 531,094 |
| Events in quadrant D | 3,962,046 | 530,877 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14382 | 4 |
| B | 0 | 13324 | 1 |
| C | 0 | 18242 | 1 |
| D | 0 | 16206 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6194 | 149 | 2.405554% |
| B | 6195 | 73 | 1.178370% |
| C | 6195 | 548 | 8.845843% |
| D | 6195 | 246 | 3.970944% |

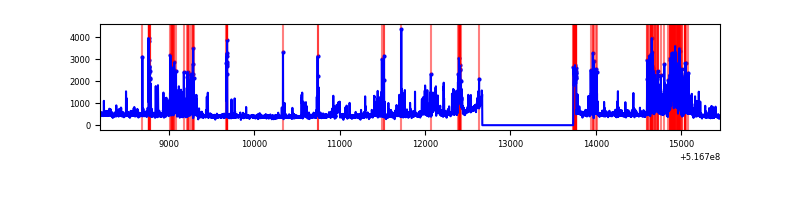

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7259 | 6194 | 99 | 99 | 1.36% | 1.60% |  |
| B | 7260 | 6196 | 18 | 18 | 0.25% | 0.29% |  |
| C | 7260 | 6195 | 455 | 455 | 6.27% | 7.34% |  |
| D | 7260 | 6195 | 182 | 182 | 2.51% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 379167 | 2285.21 | 669 | 651 | 165.6 |
| A | 4 | 249 | 163341 | 982.21 | 669 | 651 | 165.6 |
| A | 7 | 64 | 143081 | 859.89 | 669 | 651 | 165.6 |
| B | 4 | 206 | 138641 | 972.61 | 656 | 631 | 141.9 |
| B | 10 | 247 | 58142 | 405.3 | 656 | 631 | 141.9 |
| B | 7 | 252 | 46937 | 326.33 | 656 | 631 | 141.9 |
| C | 15 | 224 | 1186668 | 7215.79 | 601 | 596 | 164.4 |
| C | 12 | 252 | 691984 | 4206.25 | 601 | 596 | 164.4 |
| C | 10 | 22 | 222911 | 1352.51 | 601 | 596 | 164.4 |
| D | 15 | 201 | 361869 | 1982.7 | 643 | 612 | 182.2 |
| D | 2 | 31 | 268697 | 1471.34 | 643 | 612 | 182.2 |
| D | 15 | 94 | 217970 | 1192.93 | 643 | 612 | 182.2 |

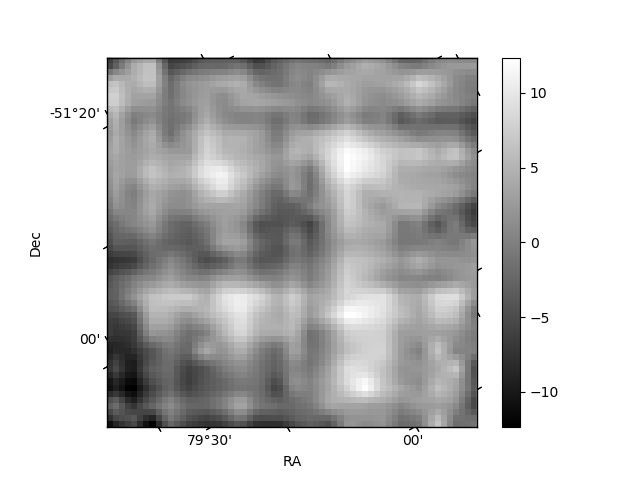

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

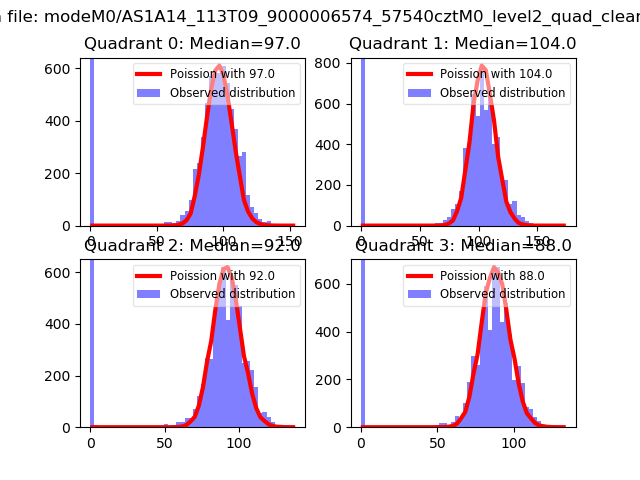

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

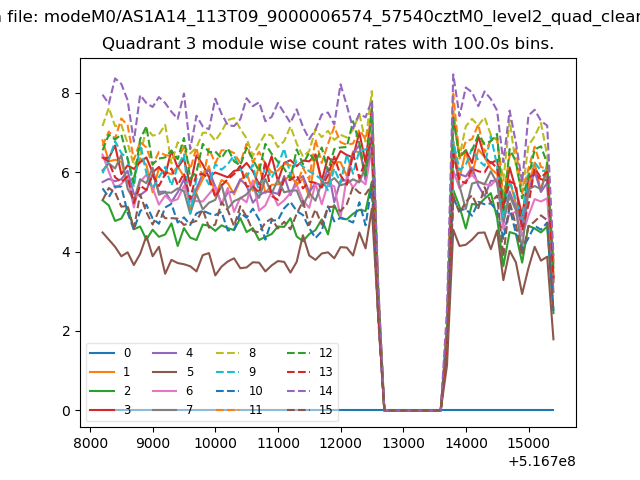

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

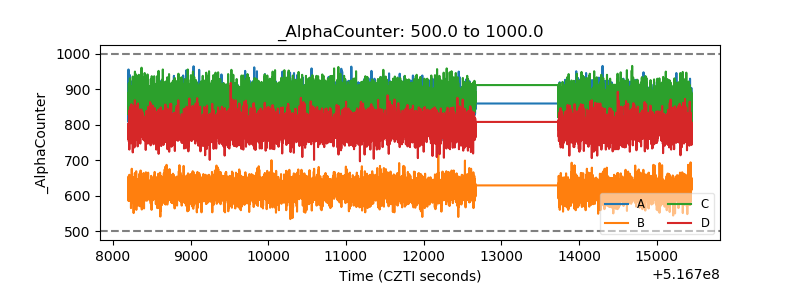

| Alpha Counter |  |

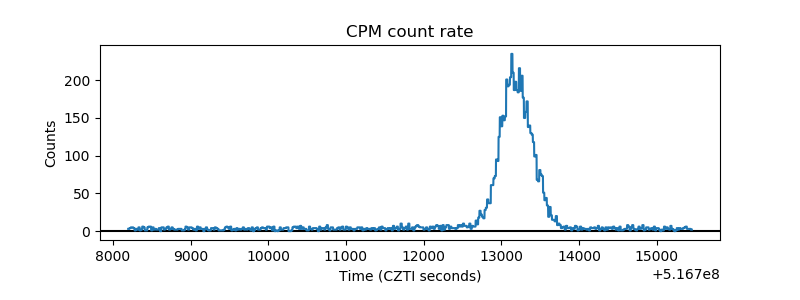

| _CPM_Rate |  |

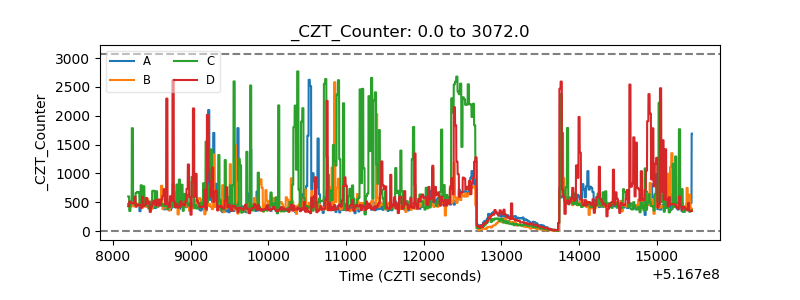

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

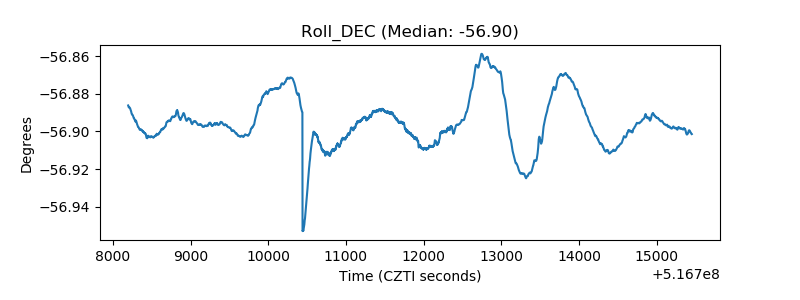

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
